Weintek cMT-G01 | Industrial IIoT Gateway
Condición: Nuevo
Garantía: 1 año

Disponible
Entregamos a todo el mundo
ventas@ddpartssolution.com
📞 +1 (689) 275-3558

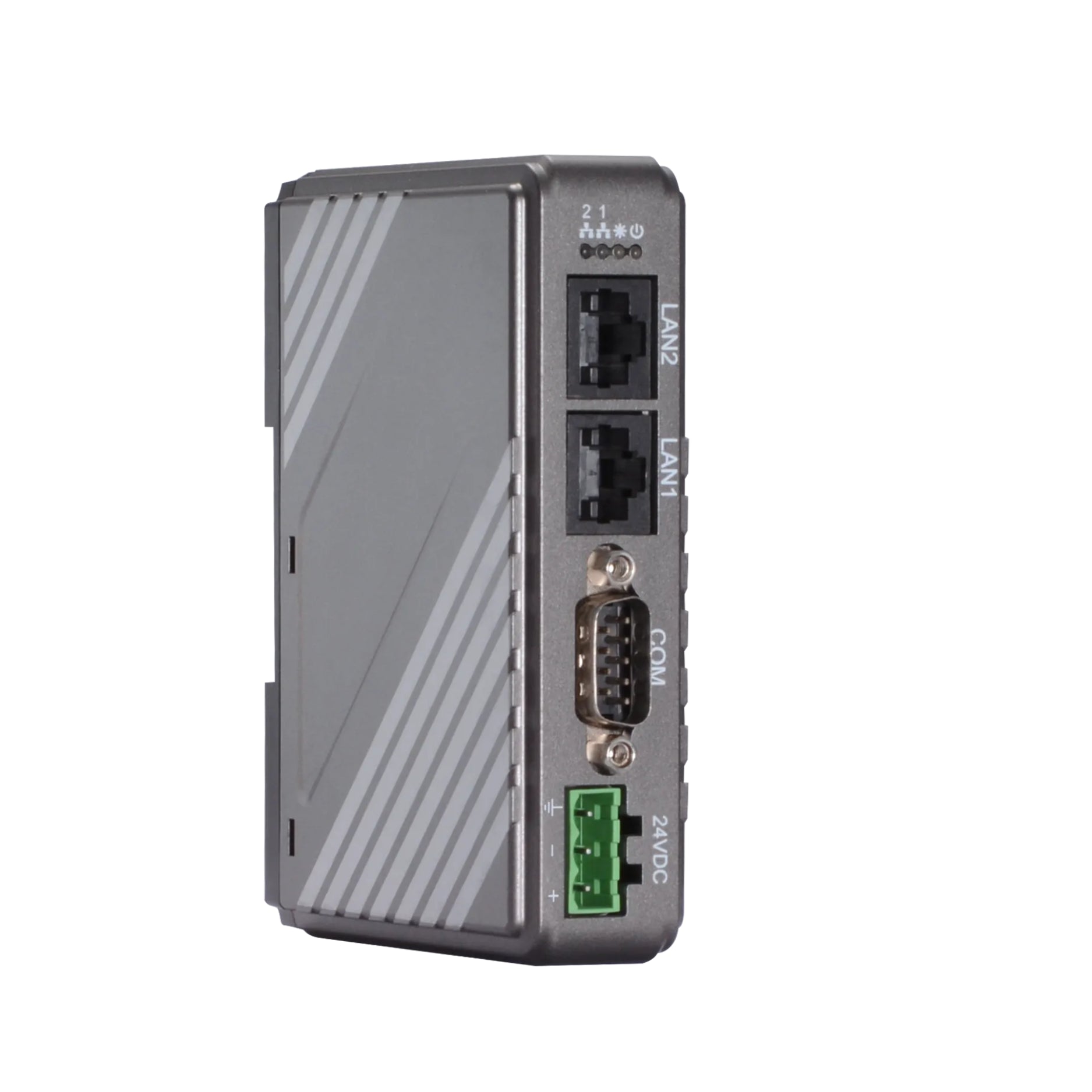

Weintek cMT-G01 | Compact IIoT Gateway with Protocol Conversion and Cloud Integration
Overview
The Weintek cMT-G01 is a compact and powerful IIoT gateway designed to bridge legacy industrial equipment with modern network infrastructures. It supports OPC UA, MQTT, and Modbus TCP/IP, enabling seamless data exchange between devices and cloud platforms. With dual Ethernet ports, three serial interfaces, and a fanless DIN-rail mountable design, the cMT-G01 is ideal for industrial environments requiring reliable protocol conversion and remote monitoring capabilities.
Key Features
-
OPC UA & MQTT Support – Facilitates integration with SCADA, MES, ERP, and cloud services
-
Modbus TCP/IP Gateway – Converts between Modbus RTU/ASCII and Modbus TCP/IP
-
Dual Ethernet Ports – 1 x Gigabit (LAN1) and 1 x 10/100 Mbps (LAN2) for network segmentation
-
Serial Communication – COM1: RS-232; COM2: RS-485 (2W/4W); COM3: RS-485 (2W)
-
Built-in RTC – Real-time clock for accurate timestamping
-
Fanless Cooling System – Enhances reliability in industrial settings
-
Compact DIN-Rail Mountable Design – Easy installation in control cabinets
-
Power Isolation – Built-in for enhanced electrical protection
-
EasyAccess 2.0 Compatible – Optional remote access and monitoring
Technical Specifications
-
Model: cMT-G01
-
Processor: 600 MHz 32-bit RISC
-
Memory: 256 MB Flash / 256 MB RAM
-
Ethernet Ports:
-
LAN1: 10/100/1000 Mbps
-
LAN2: 10/100 Mbps
-
-
Serial Ports:
-
COM1: RS-232 (2-wire)
-
COM2: RS-485 (2-wire/4-wire)
-
COM3: RS-485 (2-wire)
-
-
USB Ports: None
-
SD Card Slot: Not available
-
Power Input: 24V DC ±20%
-
Power Consumption: ~230 mA @ 24VDC
-
Dimensions (WxHxD): 27 x 109 x 81 mm
-
Weight: Approx. 0.14 kg
-
Mounting: 35 mm DIN rail
-
Operating Temperature: 0°C to +50°C
-
Storage Temperature: -20°C to +60°C
-
Humidity: 10% to 90% (non-condensing)
-
Protection Rating: IP20
-
Certifications: CE, cULus
-
Software: EasyBuilder Pro v5.06.01 or later
Applications
-
Industrial Protocol Conversion
-
Legacy Equipment Integration
-
SCADA and MES Connectivity
-
Cloud Data Acquisition
-
Remote Monitoring and Control
Why Choose the cMT-G01?
-
Versatile Protocol Support – Connects diverse industrial systems seamlessly
-
Compact and Robust Design – Ideal for space-constrained installations
-
Reliable Performance – Fanless operation ensures durability
-
Easy Integration – Compatible with Weintek’s EasyBuilder Pro software
Order Now
Available for immediate shipping worldwide.
