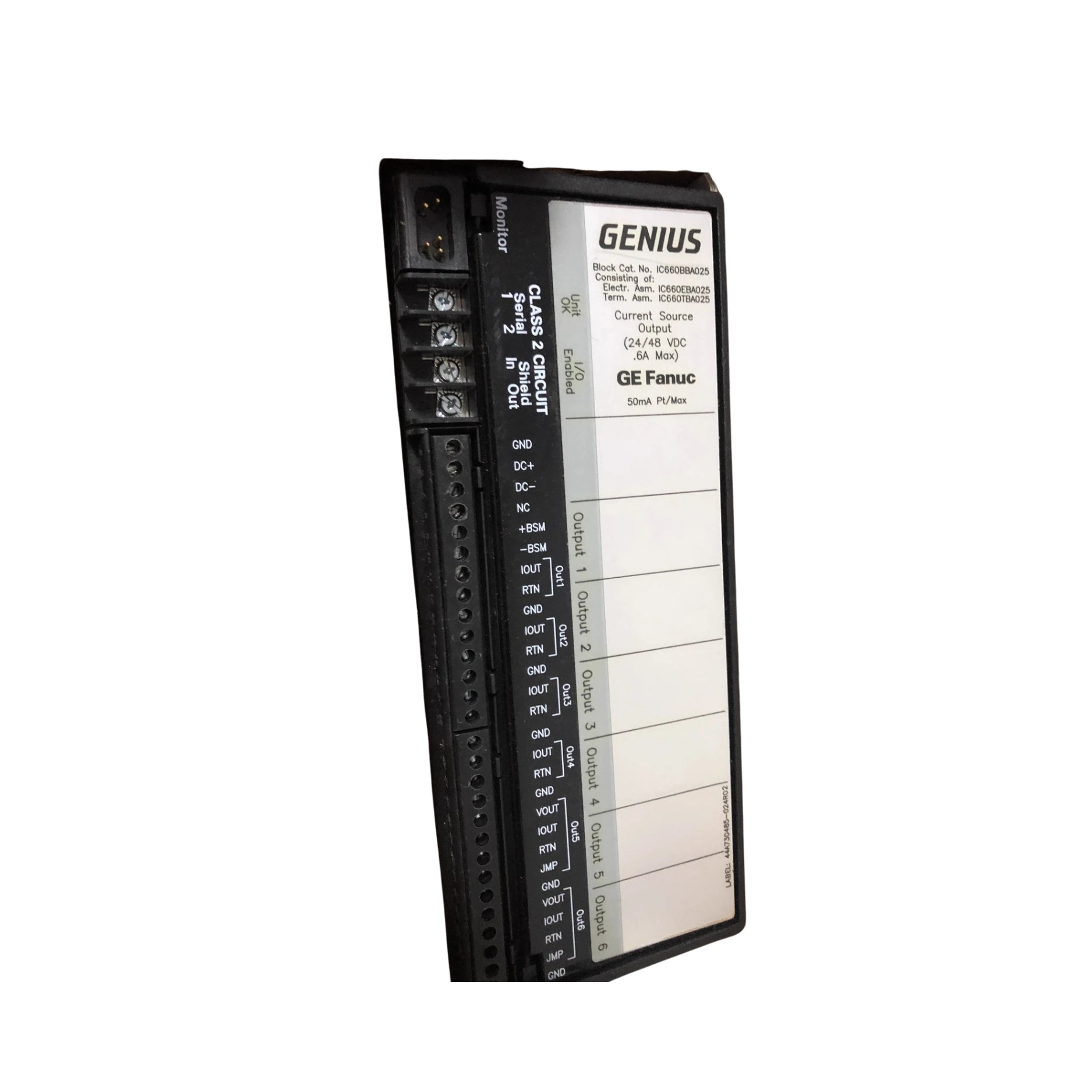

GE IC660EBA025

GE IC660EBA025 | Analog I/O Block for Genius I/O with 24 VDC Power Supply

Overview

The GE IC660EBA025 is a 6-channel analog I/O block from the Genius I/O family, designed for industrial environments that require precise analog signal acquisition and control. It features four 4–20 mA analog inputs and two 4–20 mA analog outputs, and operates on a 24 VDC power supply, making it ideal for low-voltage industrial and process control applications.

Key Features

• Analog Inputs: 4 channels, 4–20 mA, isolated

• Analog Outputs: 2 channels, 4–20 mA, isolated

• Power Supply: 24 VDC

• Diagnostics: Open wire detection, underrange/overrange alarms, and output feedback

• LED Indicators: Unit OK, I/O enabled, individual I/O status

• Mounting: Field-mountable, rugged Genius I/O design

• Isolation: 1500 V RMS between channels and ground

Technical Specifications

• Model Number: IC660EBA025

• Input Range: 4–20 mA

• Output Range: 4–20 mA

• Input Accuracy: ±0.1% at 25°C

• Output Accuracy: ±0.15% at 25°C

• Resolution: 1 µA (input), 6 µA (output)

• Update Rate: Configurable (16.6 ms to 400 ms)

• Overrange Capacity: 25 mA (input), 24 mA (output)

• Operating Temp: 0°C to 60°C

• Power Consumption: Approx. 6–10 W

• Weight: Approx. 1.8 kg (4 lbs)

Applications

• Industrial process monitoring

• SCADA and DCS systems

• Machine feedback and actuator control

• Oil and gas instrumentation

• Environmental and HVAC systems

Why Choose the IC660EBA025?

• Compact & Powerful: High-accuracy analog processing in a small footprint

• Energy Efficient: Designed for low-voltage 24 VDC systems

• Rugged Design: Built for harsh industrial field conditions

• Genius Bus Compatible: Seamless integration into GE Fanuc control networks

• Easy Diagnostics: Speeds up commissioning and troubleshooting

Order Now

The GE IC660EBA025 analog I/O block is available for immediate shipment.
