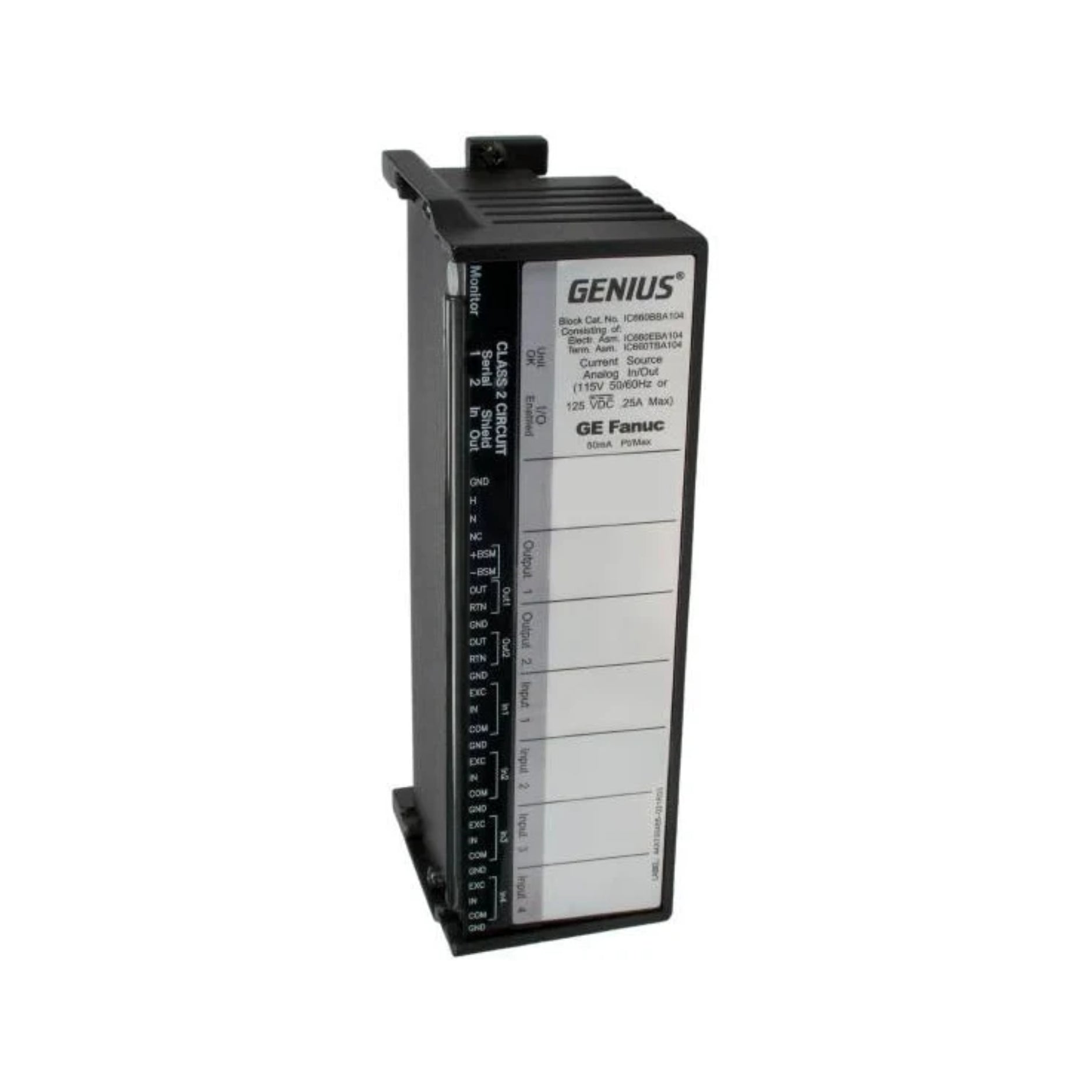

GE IC660BBA104

GE Fanuc IC660BBA104 | 4–20 mA Analog I/O Block | 115 VAC / 125 VDC | Genius I/O Series

Overview

The GE Fanuc IC660BBA104 is a 6-channel analog I/O block from the Genius I/O series, designed for industrial automation systems requiring precise analog signal processing. It features four 4–20 mA analog inputs and two 4–20 mA analog outputs, operating on 115 VAC or 125 VDC power supply. This module is ideal for applications involving sensors, actuators, and other analog devices in process control environments.

Key Features

• Analog Inputs: 4 channels, 4–20 mA current loop, individually isolated

• Analog Outputs: 2 channels, 4–20 mA current loop

• Power Supply: 115 VAC / 125 VDC

• Diagnostics: Built-in diagnostics including underrange, overrange, open wire detection, and feedback error

• LED Indicators: Status LEDs for unit OK and I/O enabled

• Isolation: 1500 V RMS channel-to-channel and channel-to-ground isolation

• Mounting: Field-mountable with rugged enclosure

Technical Specifications

• Model Number: IC660BBA104

• Input Accuracy: ±0.1% of full-scale reading at 25°C

• Input Resolution: 1 µA

• Input Conversion Time: User-selectable between 16.6 ms and 400 ms

• Input Overrange Capacity: 0–25 mA

• Output Accuracy: ±0.15% of full-scale reading at 25°C

• Output Resolution: 6 µA

• Output Update Frequency: 6–8 ms typical

• Output Overrange Capacity: 0–24 mA

• Operating Temperature: 0°C to 60°C

• Dimensions (H x W x D): 8.83 x 3.56 x 4.42 inches

• Weight: Approximately 4 lbs (1.8 kg)

• Heat Dissipation: 12 Watts maximum

• Isolation Voltage: 1500 V RMS

Applications

• Process Control: Monitoring and controlling analog signals in manufacturing processes

• Industrial Automation: Integration with PLCs for analog signal processing

• Building Management Systems: Environmental monitoring and control

• Energy Management: Data acquisition from energy meters and sensors

Why Choose the IC660BBA104?

• High Precision: Accurate analog signal processing with high resolution

• Robust Design: Suitable for harsh industrial environments

• Comprehensive Diagnostics: Facilitates quick troubleshooting and maintenance

• Seamless Integration: Compatible with GE Fanuc Genius I/O systems

Order Now

The GE Fanuc IC660BBA104 analog I/O block is available for immediate shipment.
