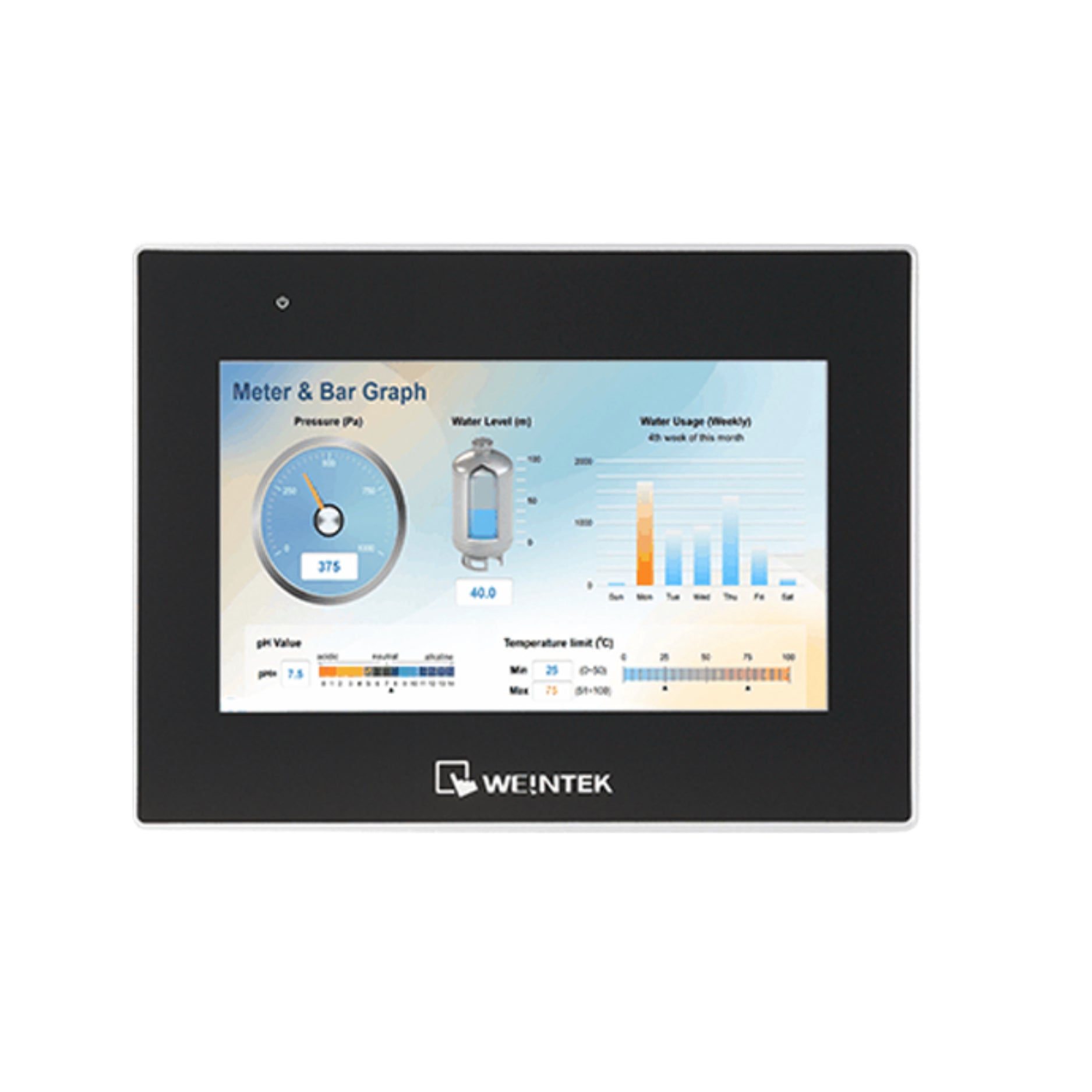

Weintek cMT2078X | 7-Inch Advanced HMI with Quad-Core CPU

Weintek cMT2078X | High-Performance 7-Inch HMI with Advanced Connectivity and IIoT Features

Overview

The Weintek cMT2078X is a cutting-edge 7-inch resistive touch HMI designed for advanced industrial automation and IIoT applications. Equipped with a powerful quad-core 64-bit RISC processor running at 1.5 GHz, 1 GB RAM, and 4 GB flash memory, it ensures smooth operation for complex tasks. The dual 10/100 Mbps Ethernet ports and multiple serial interfaces provide versatile connectivity options. Additionally, it supports protocols like OPC UA, MQTT, and Modbus TCP/IP, facilitating seamless integration into modern industrial networks.

Key Features

• 7" Resistive Touchscreen – 800x480 resolution, 16.7M colors, LED backlight

• Quad-Core 64-bit RISC Processor – 1.5 GHz for high-speed processing

• Dual Ethernet Ports – 2 x 10/100 Mbps for network flexibility

• Serial Communication Ports – RS-232 and RS-485 (2W/4W) for diverse device connectivity

• USB Host Port – USB 2.0 for peripheral integration

• Built-In RTC – Real-time clock for accurate timestamping

• Fanless Cooling System – Enhances reliability in industrial environments

• NEMA4 / IP66 Compliant Front Panel – Protection against dust and water

• EasyAccess 2.0 & CODESYS Support – Optional features for remote access and PLC programming

Technical Specifications

• Model: cMT2078X

• Display: 7” TFT LCD, 800 x 480 resolution, 400 cd/m² brightness, 800:1 contrast ratio

• Touch Panel: 4-wire resistive

• Processor: Quad-core 64-bit RISC, 1.5 GHz

• Memory: 4 GB Flash, 1 GB RAM

• Ethernet Ports:

  • LAN1: 10/100 Mbps

  • LAN2: 10/100 Mbps

• Serial Ports:

  • COM1: RS-232 (4-wire)

  • COM2: RS-485 (2W/4W)

  • COM3: RS-232 (2-wire) / RS-485 (2-wire)

• USB Host: 1 x USB 2.0

• Power Input: 24V DC ±20%

• Power Consumption: 820 mA @ 24VDC

• Dimensions (WxHxD): 200.3 x 146.3 x 35.0 mm

• Panel Cutout: 192 x 138 mm

• Weight: Approx. 0.6 kg

• Operating Temperature: 0°C to +55°C

• Storage Temperature: -20°C to +60°C

• Humidity: 10% to 90% (non-condensing)

• Mounting: Panel mount

• Front Panel Protection: NEMA4 / IP66

• Certifications: CE, cULus

• Software: EasyBuilder Pro v6.05.02 or later

Applications

• Advanced Machine Control Panels

• Industrial IoT Gateways

• SCADA and MES Interfaces

• Remote Monitoring Systems

• Data Acquisition and Visualization

Why Choose the cMT2078X?

• Enhanced Processing Power – Handles complex applications with ease

• Versatile Connectivity – Dual Ethernet and multiple serial ports for flexible integration

• IIoT-Ready – Supports modern protocols for seamless network integration

• Robust Design – Suitable for harsh industrial environments
