Pepperl+Fuchs V15-G-2M-PVC | M12 5-Pin Female Cordset | 2m PVC Cable | IP68/IP69

Pepperl+Fuchs V15-G-2M-PVC | Reliable M12 5-Pin Female Cordset for Industrial Applications

Overview

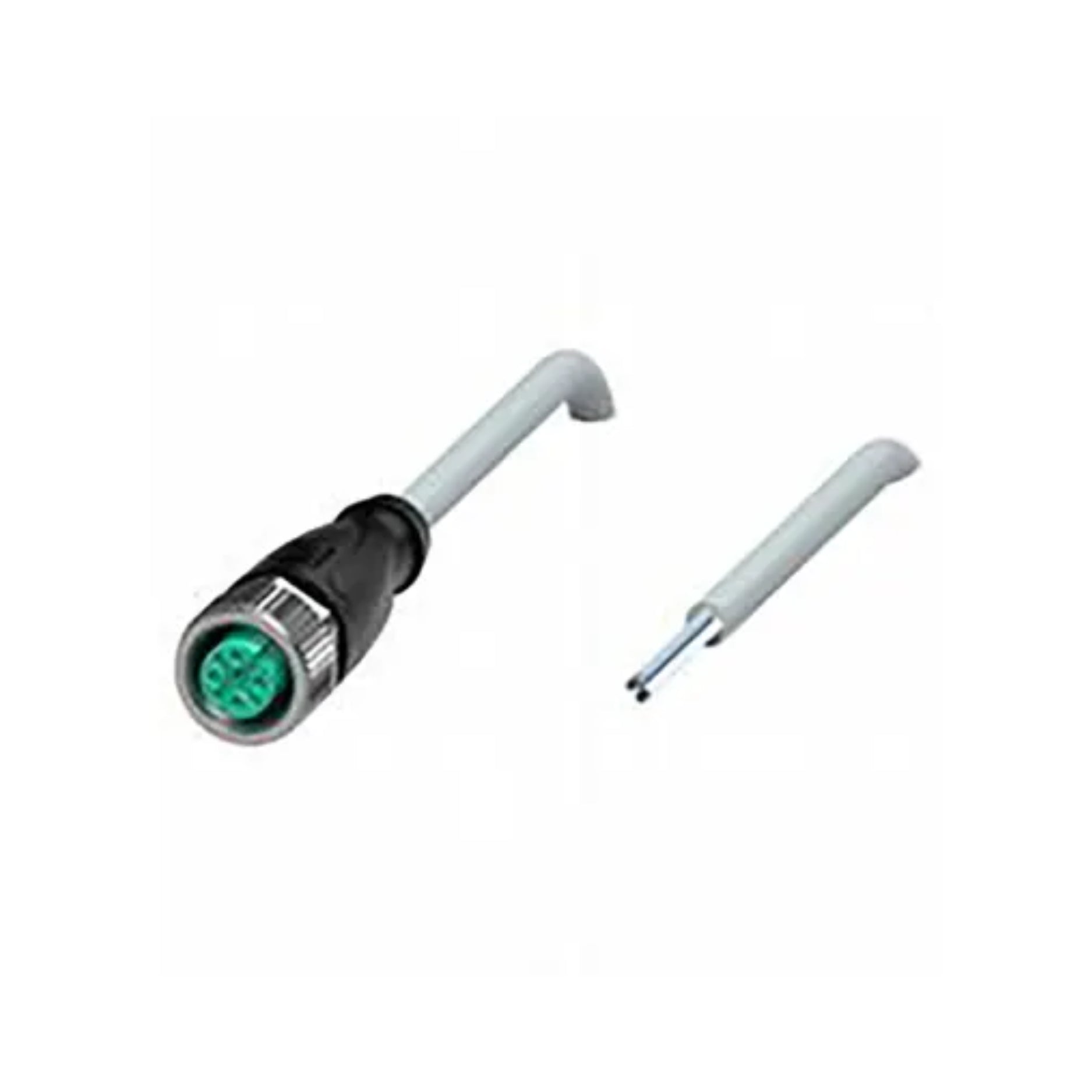

The Pepperl+Fuchs V15-G-2M-PVC is a robust M12 5-pin female cordset designed for secure and stable connections in industrial automation systems. Featuring a 2-meter gray PVC cable, this cordset ensures reliable signal transmission for sensors and actuators. Its durable construction and IP68/IP69 protection rating make it suitable for harsh industrial environments.

Key Features

• Connector Type: M12 female, straight, 5-pin configuration.

• Cable Length: 2 meters, providing flexibility for various applications.

• Cable Material: Polyvinyl Chloride (PVC) sheath, offering durability and flexibility.

• Design: Specific design protects against loosening and inaccurate installation.

• High Protection Rating: IP68/IP69-rated, ensuring robust protection against dust and water ingress.

• Operating Voltage: Supports up to 48 V AC / 60 V DC.

• Operating Current: Handles up to 4 A per contact.

• Temperature Range: Operates effectively in temperatures ranging from -40°C to +90°C for the plug connector, and -40°C to +70°C for fixed cable installations.

Technical Specifications

• Model Number: V15-G-2M-PVC

• Connector 1: M12 female socket, straight, 5-pin, A-coded

• Connector 2: Cable end

• Cable Diameter: 4.8 mm

• Core Cross Section: 0.34 mm²

• Conductor Colors: Brown, white, blue, black, gray

• Bending Radius: >10x cable diameter for movable installation

• Degree of Protection: IP68/IP69

• Compliance: EN 60529, IEC 61076-2-101

Applications

• Industrial Automation: Facilitates reliable connections for sensors and actuators in automated systems.

• Robotics: Ensures secure signal transmission in robotic applications.

• Process Control: Provides dependable connectivity in process monitoring and control systems.

• Machine Building: Ideal for custom machinery requiring robust and field-attachable connectors.

Why Choose Pepperl+Fuchs V15-G-2M-PVC?

• Robust Construction: PVC cable and IP68/IP69 rating ensure durability in harsh industrial environments.

• Secure Installation: Specific design protects against loosening and inaccurate installation.

• Reliable Performance: High-quality materials and construction provide secure and stable electrical connections.

• Trusted Brand: Pepperl+Fuchs is renowned for high-quality industrial components, ensuring reliability and support.

Order Now

Available for immediate shipping worldwide.

Producto NUEVO en su embalaje original sellado. El producto puede ser de una versión o diseño anterior. El embalaje puede presentar marcas, signos de decoloración y desgaste. Garantía de DDPARTSSOLUTION : 1 año. La garantía y el soporte del fabricante no aplican.
