Pepperl+Fuchs RL31-8-1200-RT/73c/136 | Diffuse Mode Sensor | 1200 mm Range

Pepperl+Fuchs RL31-8-1200-RT/73c/136 | High-Performance Diffuse Mode Sensor for Industrial Applications

Overview

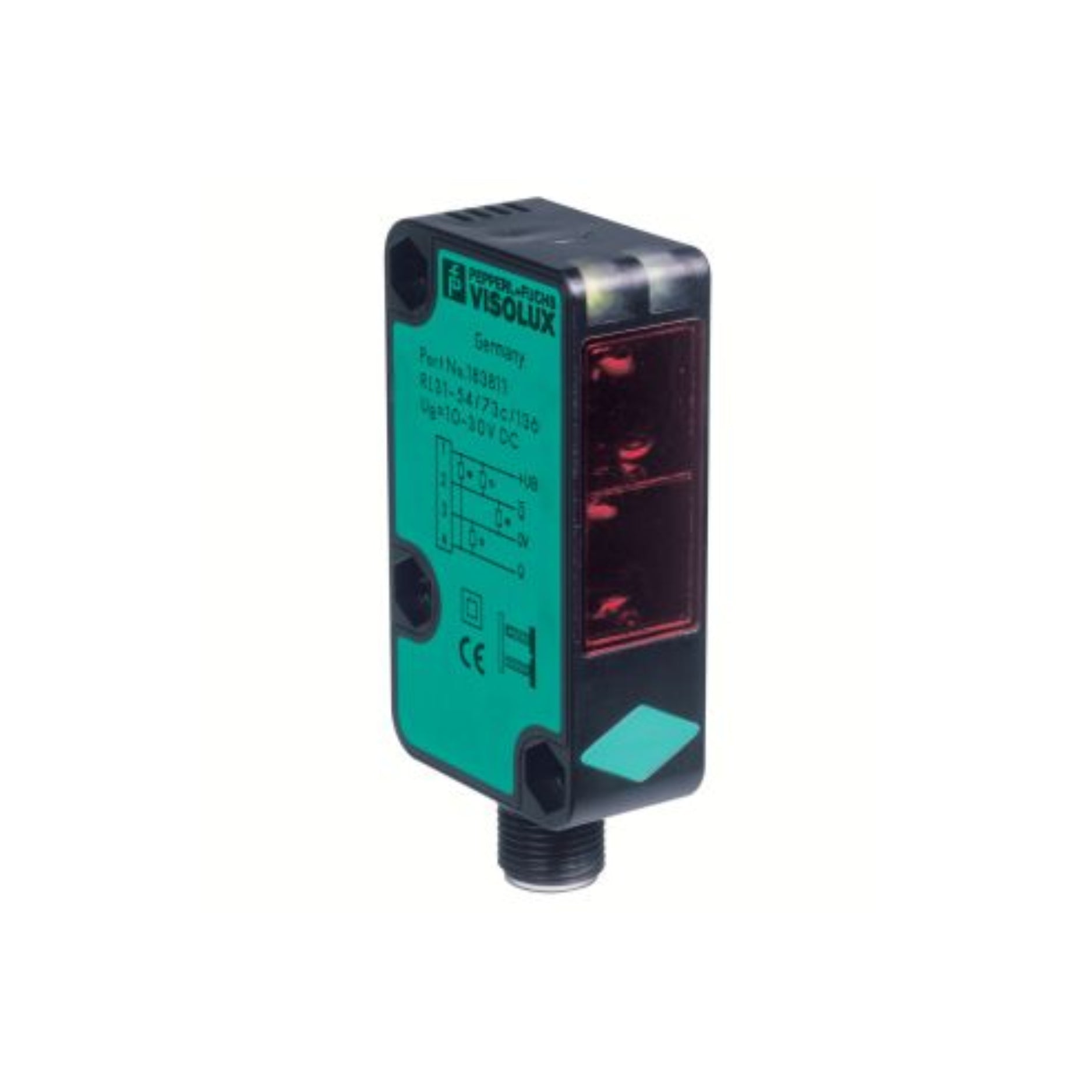

The Pepperl+Fuchs RL31-8-1200-RT/73c/136 is a robust diffuse mode sensor designed for precise detection of objects within an adjustable range of 0 to 1200 mm. Featuring a push-pull (4 in 1) output, this sensor ensures reliable performance in various industrial automation applications. Its compact design and IP67 protection rating make it suitable for challenging environments.

Key Features

• Adjustable Detection Range: 0 to 1200 mm, allowing for flexible application in various industrial settings.

• Output Type: Push-pull (4 in 1) output, providing both PNP and NPN compatibility for versatile integration.

• Light Source: Modulated visible red light (630 nm), ensuring accurate and consistent detection.

• Compact Design: Slim profile with dimensions of 62 mm (height) × 18 mm (width) × 35 mm (depth), facilitating easy installation in space-constrained areas.

• High Protection Rating: IP67-rated, offering robust protection against dust and water ingress.

• Operating Temperature Range: -30°C to +55°C, suitable for various environmental conditions.

• Connection: Equipped with a 4-pin M12 x 1 connector for secure and straightforward installation.

• Indicators: Green LED for power status and yellow LED for signal indication, providing clear visual feedback.

Technical Specifications

• Model Number: RL31-8-1200-RT/73c/136

• Detection Range: 0 to 1200 mm, adjustable

• Reference Target: Standard white, 100 mm × 100 mm

• Light Source: LED, 630 nm

• Light Type: Modulated visible red light

• Diameter of Light Spot: Approximately 25 mm at 1.2 m distance

• Opening Angle: 2°

• Ambient Light Limit: 50,000 Lux (according to EN 60947-5-2)

• Operating Voltage: 10 to 30 V DC

• Ripple: 10%

• No-Load Supply Current: ≤ 20 mA

• Switching Type: Light-on

• Signal Output: 2 push-pull (4 in 1) outputs, short-circuit and reverse polarity protected

• Switching Voltage: Max. 30 V DC

• Switching Current: Max. 100 mA

• Voltage Drop: ≤ 1.5 V

• Switching Frequency: ≤ 500 Hz

• Response Time: ≤ 1 ms

• Housing Material: Polycarbonate

• Optical Face Material: PMMA

• Degree of Protection: IP67

• Connection Type: 4-pin M12 x 1 connector

• Dimensions: 62 mm (H) × 18 mm (W) × 35 mm (D)

• Weight: Approximately 25 g

• Compliance: EN 60947-5-2

Applications

• Material Handling: Accurate detection of objects on conveyors for sorting and positioning.

• Packaging Industry: Verifies the presence of items in packaging lines to maintain quality control.

• Automotive Manufacturing: Ensures precise detection of vehicle components during assembly processes.

• Process Control: Monitors levels and positions of materials in various industrial processes.

Why Choose Pepperl+Fuchs RL31-8-1200-RT/73c/136?

• Adjustable Sensing Range: Provides flexibility to accommodate various detection distances up to 1200 mm.

• Reliable Output: Push-pull output ensures compatibility with both PNP and NPN input devices.

• Durable Construction: IP67-rated housing offers robust protection in harsh industrial environments.

• Easy Installation: Compact design and standard M12 connector facilitate straightforward mounting and wiring.

• Trusted Brand: Pepperl+Fuchs is renowned for high-quality industrial sensors and automation solutions, ensuring reliability and support.
