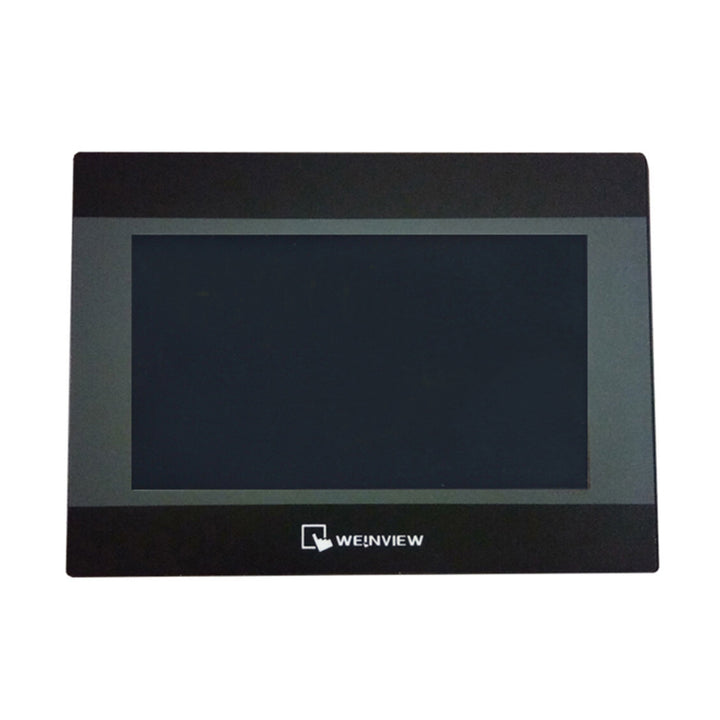

Weintek TK6071iP | 7" HMI Touchscreen

Weintek TK6071iP | 7" Industrial HMI Touchscreen Panel

Overview

The Weintek TK6071iP is a high-performance 7-inch Human-Machine Interface (HMI) designed for industrial automation applications. Featuring a TFT LCD display with 800×480 resolution and a 4-wire resistive touchscreen, it offers clear visuals and reliable touch input. Powered by a 32-bit RISC CPU at 400MHz, along with 128MB Flash memory and 64MB RAM, it ensures smooth and efficient operation.

This HMI supports multiple communication interfaces, including RS-232, RS-485, and USB 2.0, allowing seamless integration with various industrial devices. Operating on 24V DC power, the TK6071iP is suitable for a wide range of industrial environments.

Key Features

• 7" TFT LCD Display – 800×480 resolution with LED backlight

• Touch Panel – 4-wire resistive touchscreen for reliable input

• Processor – 32-bit RISC CPU at 400MHz

• Memory – 128MB Flash, 64MB RAM

• Communication Ports:

  • COM1: RS-232

  • COM2: RS-485 2W/4W

  • USB Client: USB 2.0 x 1

• Power Supply – 24V DC ±20%

• Power Consumption – 300mA @ 24V

• Operating Temperature – 0°C to 55°C

• Housing Material – Engineering plastic

• Dimensions – 200.4 x 146.5 x 34mm

• Panel Cutout Size – 192 x 138mm

• Weight – Approximately 0.52kg

• Backlight Life – >30,000 hours

• Display Colors – 65,536 colors

• Contrast Ratio – 500:1

• Brightness – 350 cd/m²

• Vibration Resistance – 10 to 25Hz (X, Y, Z direction 2G for 30 minutes)

• Insulation Resistance – More than 50MΩ at 500V DC

• Withstand Voltage – 500V AC for 1 minute

Applications

• Industrial Automation – PLC and machine control interfaces

• Process Monitoring – Real-time data visualization

• Factory Equipment – User-friendly control panels

• Building Management Systems – HVAC and lighting control

Why Choose the Weintek TK6071iP?

• High-Resolution Display – Clear and detailed visuals for operators

• Robust Communication Options – Integrates with various industrial protocols

• Durable Design – Suitable for demanding industrial environments

• User-Friendly Software – Easy configuration with EasyBuilder Pro

Order Now

Available for immediate shipping.
