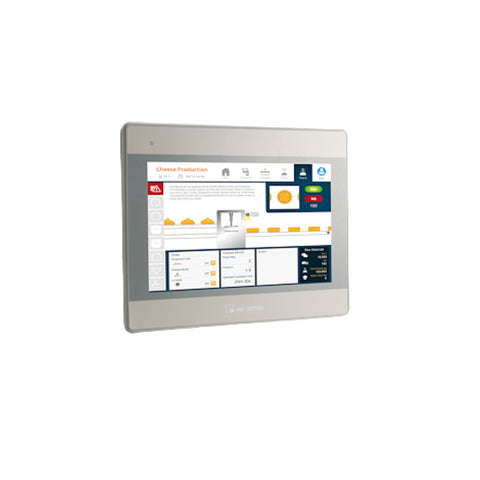

Weintek MT8121iE | 12.1-Inch HMI Touchscreen

Weintek MT8121iE | Industrial 12.1-Inch HMI Panel with Ethernet, Serial, and USB

Overview

The Weintek MT8121iE is a durable 12.1-inch Human Machine Interface (HMI) engineered for industrial automation. It features a high-resolution 1024x768 TFT LCD, Ethernet, multiple serial ports, and a USB host, offering compatibility with a wide range of PLCs and controllers. The unit is programmed using EasyBuilder Pro, making it a flexible and user-friendly choice for system integrators and OEMs.

Key Features

• 12.1" TFT LCD Display – High clarity 1024x768 resolution, 16.2M colors

• 4-Wire Resistive Touchscreen – Reliable and accurate touch control

• Ethernet Port – 10/100 Mbps for seamless integration and remote access

• Serial Communication – RS-232 and RS-485 (2W/4W) for PLC connectivity

• USB Host Port – Supports data logging and external device connections

• SD Card Slot – Expandable storage for backups and recipes

• Built-In Real-Time Clock (RTC) – Accurate timestamping

• Fanless Cooling – Silent operation and low maintenance

• NEMA4/IP65 Front Panel – Dust and splash resistant for harsh environments

Technical Specifications

• Model: MT8121iE

• Display: 12.1” TFT, 1024 x 768 resolution

• Touchscreen: 4-wire resistive

• Processor: Cortex-A8 600 MHz

• Memory: 256 MB RAM / 128 MB Flash

• Ethernet: 1 x 10/100 Mbps

• Serial Ports:

  • COM1: RS-232/RS-485 2W/4W

  • COM3: RS-485 2W

• USB Host: 1 x USB 2.0

• SD Card Slot: Supports SD/SDHC

• Power Supply: 24VDC ±20%

• Power Consumption: 800 mA @ 24VDC

• Dimensions (WxHxD): 322 x 243 x 51 mm

• Panel Cutout: 305 x 231 mm

• Operating Temperature: 0°C to +50°C

• Mounting: Panel mount

• Protection: NEMA4 / IP65 (front), IP20 (rear)

• Certifications: CE marked, UL compliant

• Software: EasyBuilder Pro V4.00.01 or newer

Applications

• Factory Automation Systems

• PLC-Based Control Panels

• Machine Interfaces for OEMs

• SCADA Front-End Displays

Why Choose the MT8121iE?

• Larger high-resolution display for better visualization

• Broad communication options with Ethernet and serial ports

• Ideal for complex or large-scale automation systems

Order Now

Available for immediate delivery.
