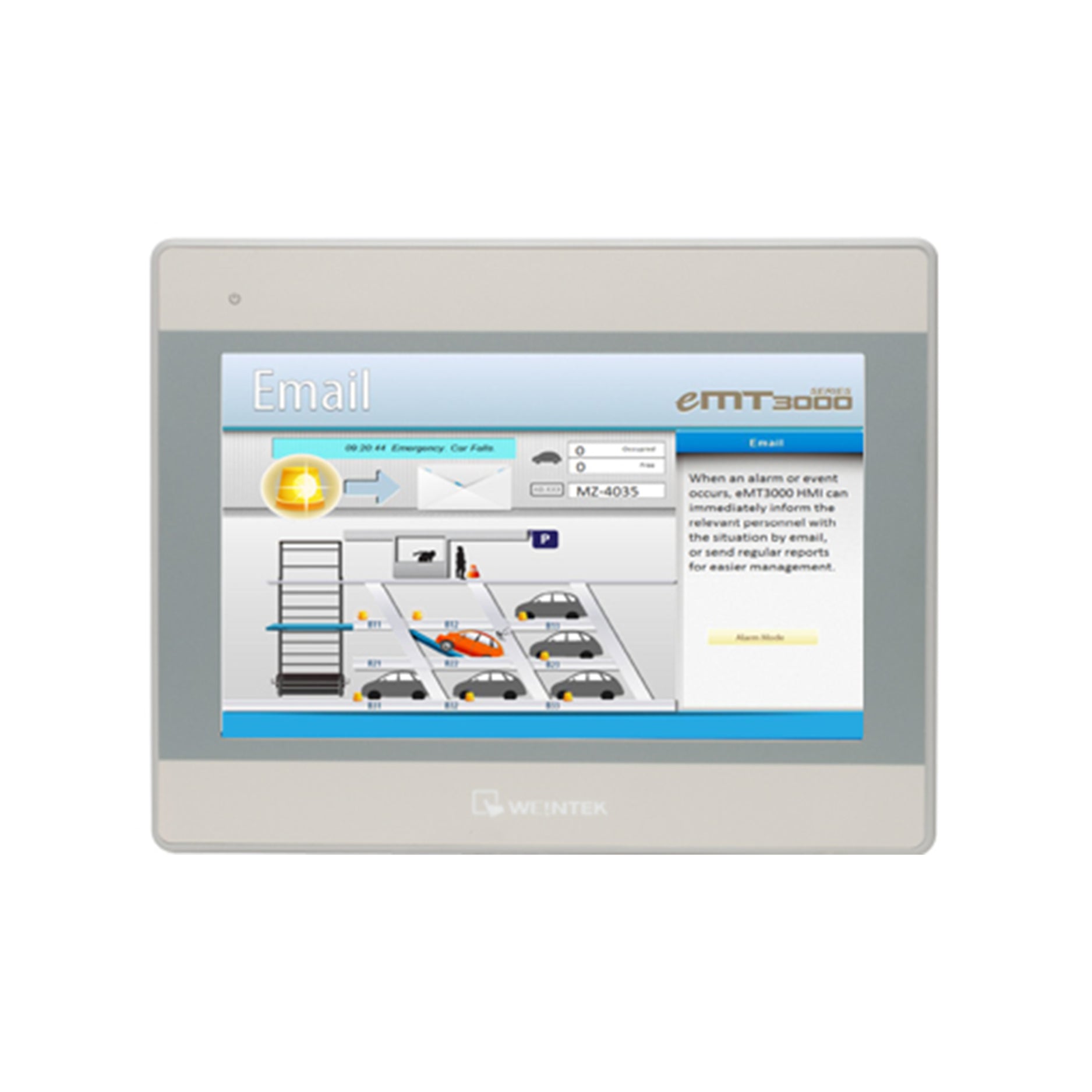

Weintek MT8101iE | 10.1-Inch HMI Touchscreen

Weintek MT8101iE | Industrial 10.1-Inch HMI Panel with Ethernet, Serial, and USB

Overview

The Weintek MT8101iE is a reliable and high-resolution 10.1-inch HMI (Human Machine Interface) engineered for industrial automation applications. Featuring a 1024x600 TFT LCD, the unit offers Ethernet, RS-232/RS-485, and USB host ports, allowing broad connectivity with various PLCs. It is configured via the free EasyBuilder Pro software, making it a great choice for OEMs, system integrators, and control panel builders.

Key Features

• 10.1" TFT LCD Display – 1024x600 resolution, vivid colors, wide viewing angle

• Resistive Touchscreen – 4-wire for accurate operator input

• Ethernet Communication – 10/100 Mbps for remote access and data exchange

• RS-232/RS-485 Serial Ports – Wide PLC protocol compatibility

• USB Host Port – For peripheral devices and data logging

• Built-in RTC – Real-time clock for logging and alarms

• Fanless Cooling Design – Quiet and low-maintenance

• NEMA4/IP65 Front Panel – Industrial protection against dust and moisture

Technical Specifications

• Model: MT8101iE

• Display: 10.1” TFT LCD

• Resolution: 1024 x 600 pixels

• Touch Panel: 4-wire resistive

• CPU: 32-bit RISC

• Memory: 128 MB Flash / 128 MB RAM

• Ethernet: 1 x 10/100 Base-T

• Serial Ports:

  • COM1: RS-232

  • COM2: RS-485 2W/4W

  • COM3: RS-485 2W

• USB Host: 1 x USB 2.0

• Power Supply: 24V DC ±15%

• Power Consumption: 450 mA @ 24VDC

• Dimensions: 271 x 213 x 36 mm

• Panel Cutout: 260 x 202 mm

• Operating Temperature: 0°C to +50°C

• Mounting: Panel mount

Applications

• Industrial Automation Systems

• PLC-Based Control Panels

• Machine Interfaces for OEMs

• SCADA & Data Logging Displays

Why Choose the MT8101iE?

• Widescreen 10.1" display with high resolution

• Robust industrial design with flexible communication

• Easy integration using free EasyBuilder Pro software

Order Now

In stock and available for global shipping.
