Weintek MT8070iH | 7-Inch HMI with Ethernet

Weintek MT8070iH | Reliable 7-Inch HMI with Ethernet and Serial Communication

Overview

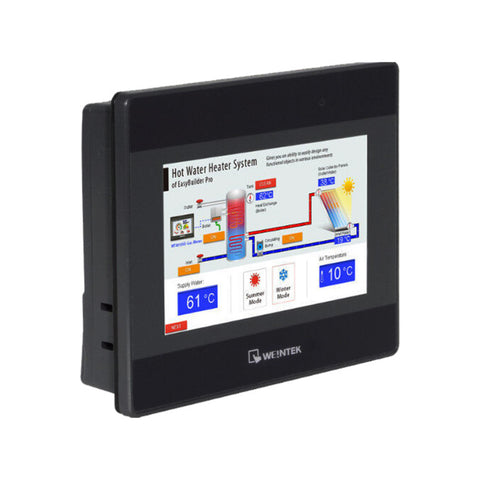

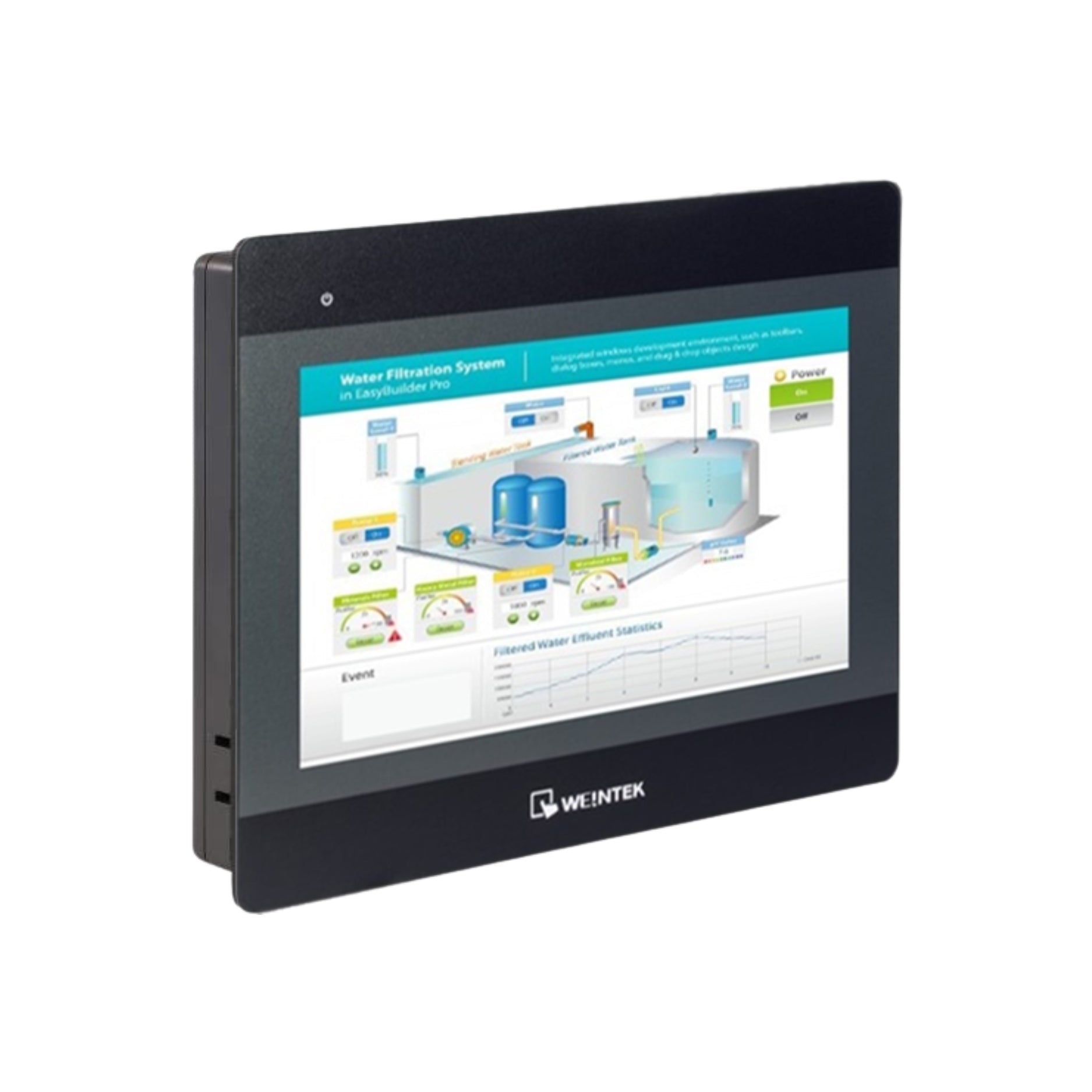

The Weintek MT8070iH is a 7-inch resistive touch HMI designed for dependable operation in industrial automation environments. Featuring Ethernet connectivity, RS-232 and RS-485 serial ports, and both USB host and client ports, it offers an ideal solution for small-to-medium machinery interfaces. The MT8070iH supports Weintek’s EasyBuilder 8000 software, facilitating easy configuration and integration with various PLC brands.

Key Features

• 7" Resistive Touchscreen – 800x480 resolution for clear data visualization

• Ethernet Port – Seamless network connectivity and remote access

• RS-232 and RS-485 Ports – Wide PLC communication compatibility

• USB Host and Client Ports – Supports data logging and project download

• Compact Design – Perfect for tight panel spaces

• NEMA4/IP65 Front Panel – Resistant to water and dust

• Fanless Cooling System – Quiet and maintenance-free

• Built-in RTC – For timestamped alarms and logging

• EasyBuilder 8000 Compatible – Fast and flexible project development

Technical Specifications

• Model: MT8070iH

• Display Type: 7” TFT LCD, 800 x 480 resolution

• Touch Panel: 4-wire resistive

• CPU: 32-bit RISC 400MHz processor

• Memory: 128MB Flash / 64MB DDR2 RAM

• Ethernet Port: 1 x 10/100 Mbps

• Serial Ports:

  • COM1: RS-232/RS-485 (2W/4W)

  • COM2: RS-232

  • COM3: RS-232/RS-485 (2W)

• USB Ports:

  • USB Host: 1 x USB 1.1

  • USB Client: 1 x USB 2.0

• SD Card Slot: Yes

• Power Input: 24V DC ±20%

• Power Consumption: ~250 mA @ 24VDC

• Panel Cutout: 192 x 138 mm

• Dimensions (WxHxD): 200 x 146 x 42.5 mm

• Operating Temperature: 0°C to +50°C

• Mounting: Panel mount

• Front Panel Protection: IP65

• Software: EasyBuilder 8000 V2.0.0 or later

Applications

• Small Machine Control Panels

• Basic HMI Interfaces

• Packaging Equipment

• Energy Monitoring Systems

• OEM Machine Displays

Why Choose the MT8070iH?

• Cost-effective HMI with essential features

• Compact and rugged for industrial environments

• Reliable performance for standard control tasks

Order Now

Available for worldwide shipping.
