Weintek MT8051iP | 4.3" HMI Touchscreen Panel

Weintek MT8051iP | 4.3" HMI Touchscreen Panel for Industrial Automation

Overview

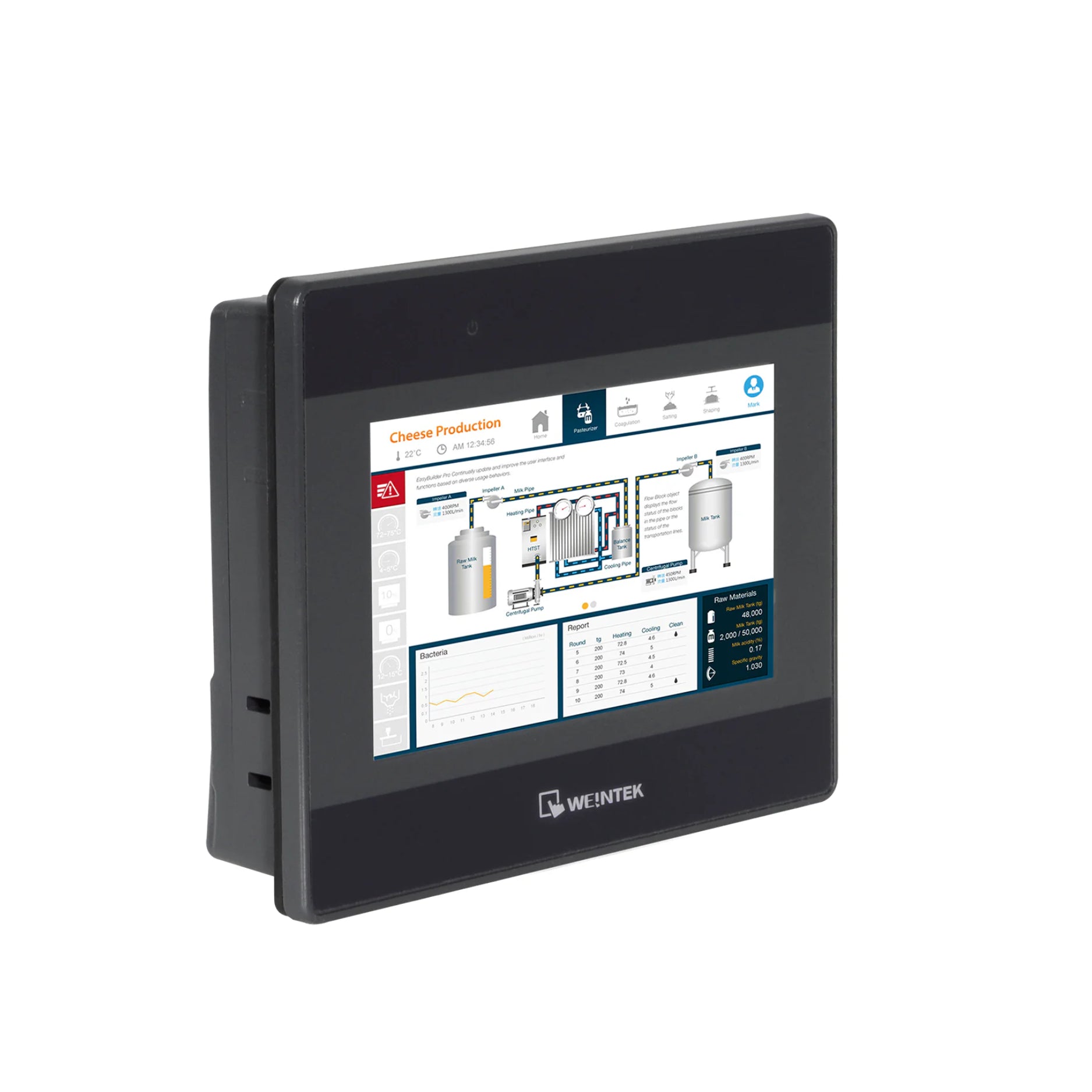

The Weintek MT8051iP is a compact 4.3-inch Human-Machine Interface (HMI) designed for industrial automation applications. Featuring a vibrant TFT LCD display and a 600MHz Cortex-A8 processor, it offers reliable performance for monitoring and controlling industrial processes. With built-in Ethernet and serial communication ports, it ensures seamless integration with various PLCs and control systems.

Key Features

• Display: 4.3" TFT LCD, 480 x 272 resolution, 16.7 million colors

• Touchscreen: 4-wire resistive touch panel

• Processor: 32-bit RISC Cortex-A8 600MHz CPU

• Memory: 128 MB Flash, 128 MB RAM

• Communication Ports:

  • 1 x Ethernet (10/100 Base-T)

  • COM1: RS-232/RS-485 2W/4W

  • COM3: RS-485 2W

• USB: 1 x USB 2.0 Host

• Power Supply: 10.5~28VDC

• Mounting: Panel mount with NEMA4 / IP65 compliant front panel

• Operating Temperature: 0°C to 50°C (32°F to 122°F)

• Software: Compatible with EasyBuilder Pro

• Certifications: CE marked

• Optional: Supports EasyAccess 2.0 for remote access

Technical Specifications

• Dimensions (W x H x D): 128 x 102 x 32 mm

• Panel Cutout: 119 x 93 mm

• Weight: Approx. 0.25 kg

• Backlight: LED, >30,000 hours lifespan

• Contrast Ratio: 500:1

• Brightness: 400 cd/m²

• Viewing Angle (T/B/L/R): 50°/70°/70°/70°

• Protection Structure: NEMA4 / IP65 compliant front panel

• Power Consumption: 800mA @ 12VDC; 400mA @ 24VDC

• Isolation Resistance: Exceeds 50MΩ at 500VDC

• Vibration Endurance: 10 to 25Hz (X, Y, Z direction 2G 30 minutes)

• Enclosure Material: Plastic

• Real-Time Clock (RTC): Built-in (CR2032 3V lithium battery)

• SD Card Slot: Not available

• USB Client: Not available

• CAN Bus: Not available

• HDMI: Not available

• Audio Output: Not available

• RS-485 Dual Isolation: Not available

• Weincloud EasyAccess 2.0: Optional

Applications

• Factory Automation: Monitor and control production lines

• Building Management Systems: Interface for HVAC, lighting, and security systems

• Energy Management: Display and control for renewable energy systems

• Process Control: Visualization and control in chemical, pharmaceutical, and food industries

Why Choose the MT8051iP?

• Enhanced Performance: 600MHz Cortex-A8 processor ensures smooth operation

• Versatile Connectivity: Multiple communication ports for flexible integration

• User-Friendly Interface: Intuitive touchscreen for easy operation

• Durable Design: Robust construction suitable for industrial environments

Order Now

Available and ready for fast international shipping.
