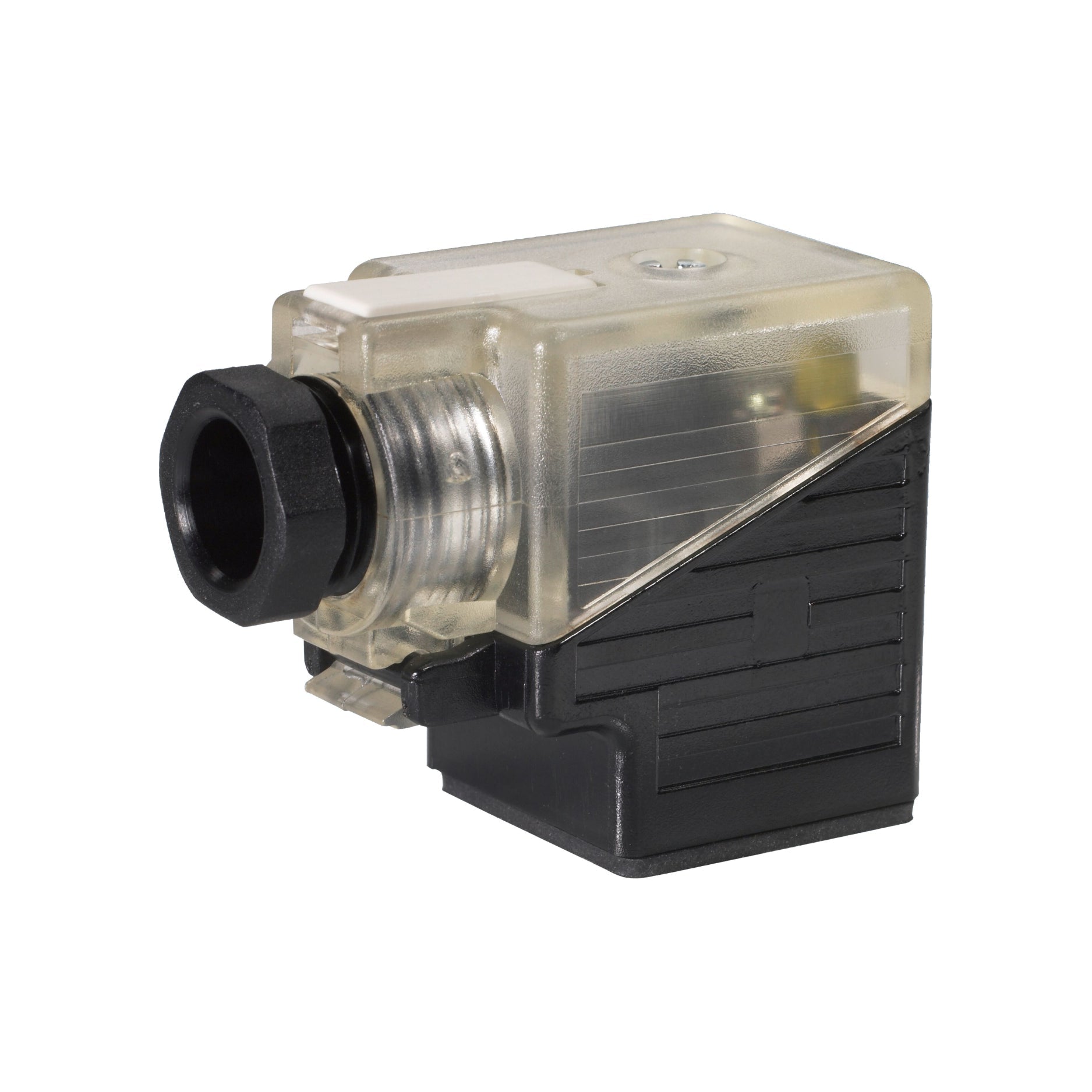

Rexroth R901017026 Plug-In Connector 3P Z5L1 M 24V SPEZ

Overview:

The Rexroth R901017026 is a 3-pole (2 + PE) plug-in connector compliant with EN 175301-803 standards. It features a yellow LED indicator for operational status and includes a Zener diode suppression circuit for enhanced protection. This connector is specifically designed for valves equipped with K4 connectors, ensuring seamless integration and dependable performance in industrial environments.

Key Features & Benefits:

• 3-Pole Configuration (2 + PE): Provides secure and efficient electrical connections.
• Integrated LED Indicator: Yellow LED offers clear visual status of the connection, aiding in monitoring and maintenance.
• Zener Diode Suppression Circuit: Protects against voltage spikes, enhancing the longevity of connected components.
• Robust Construction: Built to withstand demanding industrial conditions.
• Easy Installation: Screw connection system simplifies installation, reducing downtime.

Technical Specifications:

• Brand: Bosch Rexroth
• Part Number: R901017026
• Connector Type: 3-pole (2 + PE) plug-in connector
• Standard Compliance: EN 175301-803
• Voltage: 24V AC/DC
• Indicator Light: Yellow LED
• Suppression: Zener diode suppression circuit
• Ambient Temperature Range: -20°C to +60°C
• Protection Class: IP65 (with properly mounted and fitted mating connector)
• Cable Entry: M16 x 1.5
• Wire Cross-Section: Up to 1.5 mm²
• Housing Color: Black
• Weight: Approximately 0.0357 kg

Applications:

• Hydraulic and Pneumatic Valves: Ensures reliable connections for solenoid valves in fluid control systems.
• Industrial Automation: Provides stable electrical interfacing in automated machinery and control systems.
• Manufacturing Equipment: Supports efficient operation of production line machinery requiring secure electrical connections.
• Process Control Systems: Enhances reliability in systems monitoring and controlling industrial processes.

Why Choose the Rexroth R901017026 Plug-In Connector?

The Rexroth R901017026 plug-in connector combines versatility, reliability, and ease of installation. Its compliance with international standards, robust construction, and integrated protective features make it an excellent choice for professionals seeking dependable electrical connections in industrial applications. The LED indicator and suppression circuit aid in quick diagnostics and protect against electrical disturbances, reducing maintenance time and improving system uptime.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
