Rexroth R901017022 Plug-In Connector 3P Z5L M 12-240V SP& | 3-Pole Mating Connector with LED

Rexroth R901017022 Plug-In Connector 3P Z5L M 12-240V SP&

Overview:

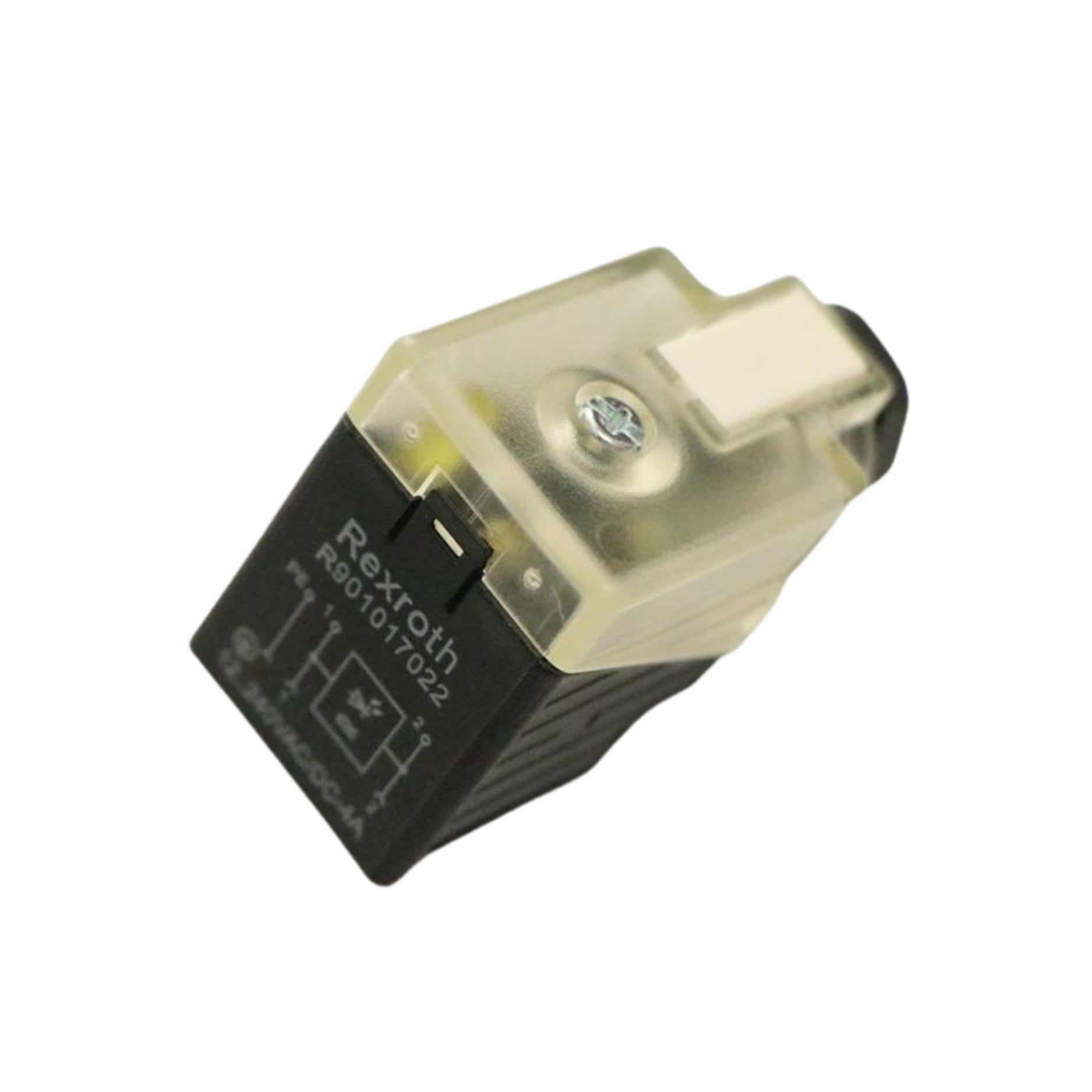

The Rexroth R901017022 is a 3-pole (2 + PE) plug-in connector designed in accordance with EN 175301-803 standards. Equipped with a yellow LED indicator, this connector provides immediate visual feedback on operational status, enhancing safety and troubleshooting efficiency. It is specifically engineered for use with valves featuring the K4 connector type, ensuring seamless integration and reliable performance in industrial environments.

Key Features & Benefits:

• 3-Pole Configuration (2 + PE): Ensures secure and efficient electrical connections.
• Wide Voltage Range: Compatible with supply voltages from 12 to 240V AC/DC, offering versatility across various applications.
• Integrated LED Indicator: Provides clear visual status of the connection, facilitating easy monitoring and maintenance.
• Robust Design: Constructed for durability in demanding industrial settings.
• Easy Installation: Features a screw connection system, simplifying the installation process and reducing downtime.

Technical Specifications:

• Brand: Bosch Rexroth
• Part Number: R901017022
• Connector Type: 3-pole (2 + PE) plug-in connector
• Standard Compliance: EN 175301-803
• Voltage Range: 12 to 240V AC/DC
• Indicator Light: Yellow LED
• Ambient Temperature Range: -20°C to +60°C
• Protection Class: IP65 (with properly mounted and fitted mating connector)
• Cable Entry: M16 x 1.5
• Wire Cross-Section: Up to 1.5 mm²
• Housing Color: Black
• Weight: Approximately 0.038 kg

Applications:

• Hydraulic and Pneumatic Valves: Provides reliable connections for solenoid valves in various fluid control systems.
• Industrial Automation: Ensures stable electrical interfacing in automated machinery and control systems.
• Manufacturing Equipment: Supports efficient operation of production line machinery requiring secure electrical connections.
• Process Control Systems: Enhances reliability in systems monitoring and controlling industrial processes.

Why Choose the Rexroth R901017022 Plug-In Connector?

The Rexroth R901017022 plug-in connector offers a combination of versatility, reliability, and ease of installation. Its compliance with international standards and robust construction make it an excellent choice for professionals seeking dependable electrical connections in industrial applications. The integrated LED indicator aids in quick diagnostics, reducing maintenance time and improving system uptime.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
