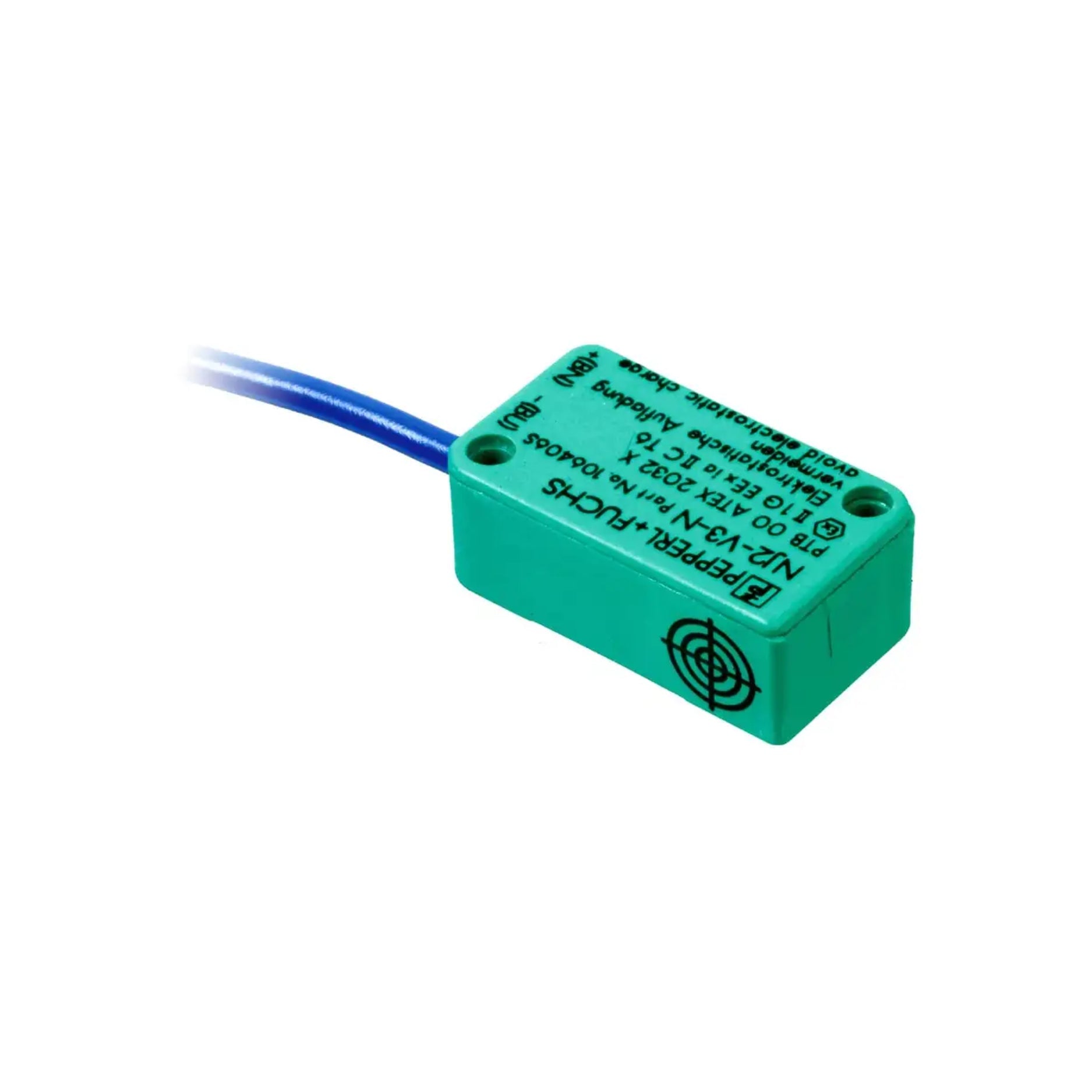

Pepperl+Fuchs NJ2-V3-N | 2mm Inductive Sensor 70133090

Pepperl+Fuchs NJ2-V3-N | NAMUR Inductive Sensor – 2mm Flush, IP67, M12 Connector

Overview

The Pepperl+Fuchs NJ2-V3-N (Part No. 70133090) is a 2 mm flush-mount inductive proximity sensor with a NAMUR output, suitable for hazardous and intrinsically safe environments. Its compact design and M12 connector make it ideal for space-constrained industrial automation and process control systems where non-contact metal detection is required.

Certified for use in hazardous zones, this sensor is commonly used with isolating switching amplifiers to meet safety and performance standards.

Key Features

• Sensing Distance: 2 mm (flush mount)

• Output Type: NAMUR (for use with isolating amplifiers)

• Connector: M12, 2-pin

• Housing Material: Plastic, V3 style

• Mounting: Flush in metal

• Protection Rating: IP67

• Operating in Intrinsically Safe Circuits – Suitable for ATEX Zone 0/1 (when used with proper interface)

Technical Specifications

• Model: NJ2-V3-N

• Part Number: 70133090

• Sensing Range: 2 mm

• Output: NAMUR (per EN 60947-5-6)

• Voltage Range: 5–25 VDC (via isolator)

• Current Consumption: ≤ 1 mA (inactive) / ≥ 2.1 mA (active)

• Housing Style: V3

• Connector Type: M12 male, 2-pin

• Operating Temp: -25°C to +70°C

• Enclosure Rating: IP67

Applications

• Hazardous Area Sensing – Use with intrinsic safety barriers

• Process Automation – Tank level, valve position, or shaft detection

• Industrial Equipment – Compact and rugged metal sensing

Why Choose the NJ2-V3-N?

• Certified NAMUR output for hazardous locations

• Reliable and precise 2 mm flush sensing

• Compact M12 connector for easy installation

Order Now

In stock and ready to ship globally.
