Pepperl+Fuchs NBB5-18GM50-E2-V1 | 5 mm Inductive Sensor

Pepperl+Fuchs NBB5-18GM50-E2-V1 | High-Performance 5 mm Inductive Proximity Sensor – PNP NO Output, M18 Threaded Housing

Overview

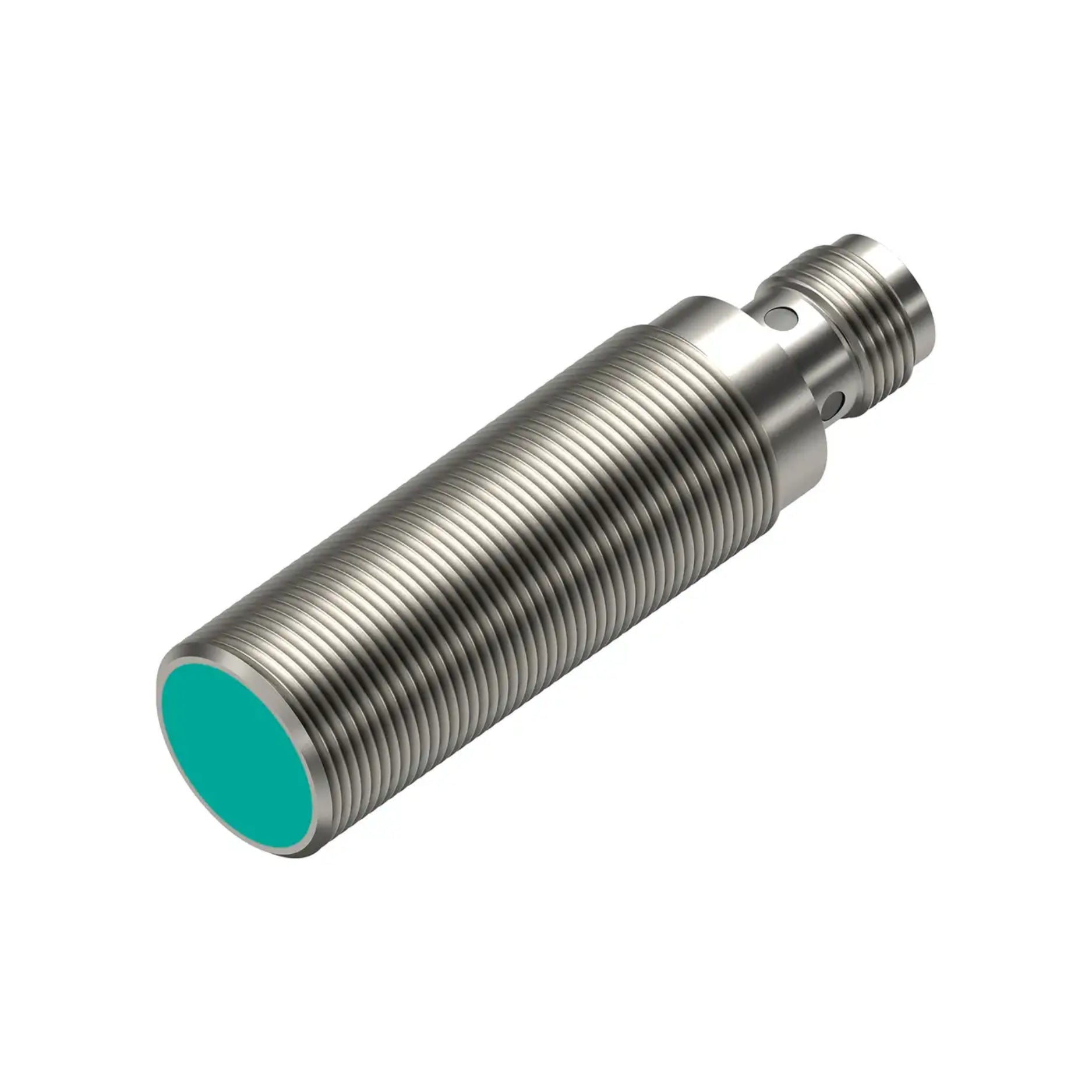

The Pepperl+Fuchs NBB5-18GM50-E2-V1 is a 5 mm inductive proximity sensor designed for precise and reliable detection of metal objects in industrial automation applications. Featuring a PNP normally open (NO) output and housed in a robust M18 threaded metal casing, this sensor ensures durability and seamless integration into various industrial environments. Its IP68 protection rating guarantees optimal performance even in harsh conditions.

Key Features

• Sensing Distance: 5 mm (flush installation)

• Output Type: PNP, Normally Open (NO)

• Operating Voltage: 6 to 36 V DC

• Switching Frequency: Up to 1,950 Hz

• Housing: M18 threaded metal housing

• Connection Type: M12 x 1 connector plug, 3-pin configuration

• Protection Rating: IP65/IP66/IP67/IP68

• Temperature Range: -40°C to +85°C (-40°F to +185°F)

• LED Indicator: Multihole-LED, yellow, for switching state indication

Technical Specifications

• Model Number: NBB5-18GM50-E2-V1

• Part Number: 084195

• Installation Type: Flush

• Housing Material: Nickel-plated brass

• Sensing Face Material: PBT, green

• Operating Current: 0 to 200 mA

• Voltage Drop: ≤ 1 V

• No-Load Supply Current: ≤ 10 mA

• Off-State Current: Max. 20 µA

• Time Delay Before Availability: ≤ 10 ms

• Polarity Protection: Reverse polarity and short-circuit protection

• Mounting: With nuts, M18 threading

• Tightening Torque: ≤ 30 Nm

• Weight: Approx. 61 g

• Certifications: CE, cULus Listed, DNVGL Marine Approval

Applications

• Industrial Automation: Non-contact detection of metal objects in automated systems

• Conveyor Systems: Position and presence sensing of items on production lines

• Assembly Lines: High-speed detection in repetitive manufacturing processes

• Robotic Systems: Limit and safety detection in robotic applications

Why Choose the Pepperl+Fuchs NBB5-18GM50-E2-V1?

• High Precision: Accurate detection with a 5 mm sensing range

• Robust Construction: Durable nickel-plated brass housing suitable for demanding environments

• Reliable Performance: High switching frequency and wide operating temperature range

• Easy Integration: Standard M18 threading and M12 connector for straightforward installation

Order Now

Available for immediate shipping worldwide.
