Pepperl+Fuchs NBB20-L2-A2-V1 | 20 mm Inductive Proximity Sensor

Pepperl+Fuchs NBB20-L2-A2-V1 | High-Performance 20 mm Inductive Proximity Sensor

Overview

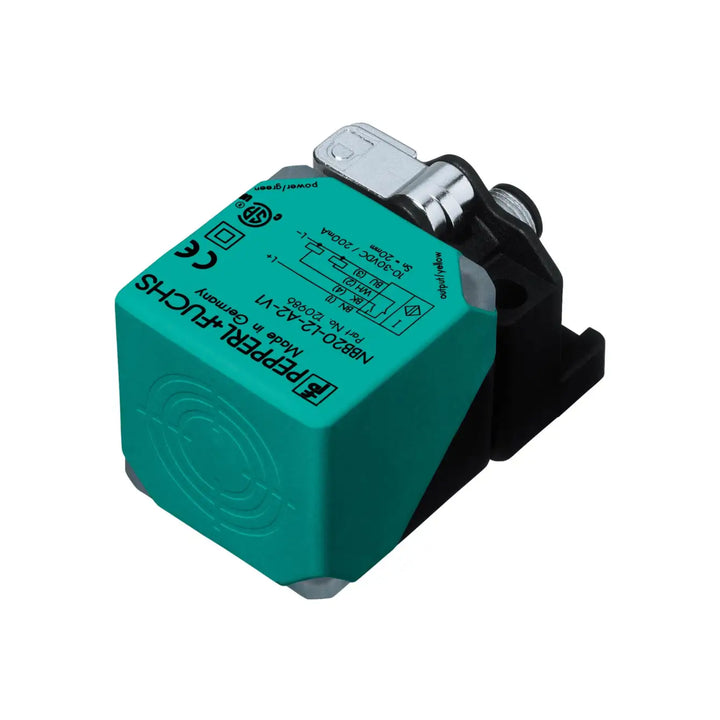

The Pepperl+Fuchs NBB20-L2-A2-V1 is a robust inductive proximity sensor designed for accurate detection of metallic objects in industrial environments. Featuring a 20 mm sensing distance and flush installation, this sensor ensures reliable performance in various applications. Its PNP normally open/normally closed (NO/NC) output configuration and M12 connector facilitate easy integration into existing systems.

Engineered for durability, the NBB20-L2-A2-V1 operates effectively within a wide temperature range and boasts IP68/IP69K protection ratings, making it suitable for use in harsh conditions.

Key Features

• Sensing Distance: 20 mm (flush installation)

• Output Type: PNP, Normally Open/Normally Closed (NO/NC)

• Operating Voltage: 10 to 30 V DC

• Switching Frequency: Up to 440 Hz

• Operating Temperature Range: -25°C to +85°C (-13°F to +185°F)

• Protection Rating: IP68/IP69K

• Housing Material: Polyamide (PA)

• Connection Type: M12 x 1 connector plug, 4-pin

• LED Indicators: Green for operating voltage, Yellow for switching state

Technical Specifications

• Model Number: NBB20-L2-A2-V1

• Part Number: 187548

• Installation Type: Flush

• Assured Operating Distance: 0 to 16.2 mm

• Reduction Factors:

  • Aluminum (rAl): 0.33

  • Copper (rCu): 0.31

  • Stainless Steel (r304): 0.74

  • Brass (rBrass): 0.41

• Hysteresis: Typically 5%

• Reverse Polarity Protection: Yes

• Short-Circuit Protection: Pulsing

• Voltage Drop: ≤ 2 V

• Operating Current: 0 to 200 mA

• Off-State Current: 0 to 0.5 mA

• No-Load Supply Current: ≤ 20 mA

• Time Delay Before Availability: 80 ms

• Housing Dimensions: Height 40 mm, Width 40 mm, Length 67 mm

• Mounting: Quick mounting bracket

• Weight: Approximately 155 g

Applications

• Industrial Automation: Precise detection of metallic components in assembly lines and robotic systems.

• Conveyor Systems: Monitoring the presence and position of items on production lines.

• Packaging Machinery: Ensuring correct placement and movement of packaging materials.

• Automotive Manufacturing: Detecting metal parts during vehicle assembly processes.

Why Choose the Pepperl+Fuchs NBB20-L2-A2-V1?

• Enhanced Sensing Capabilities: Extended operating distance with flush installation.

• Wide Operating Range: Suitable for diverse industrial applications with extended temperature and voltage ranges.

• Robust Construction: High protection ratings ensure durability in challenging environments.

• Easy Integration: Standard M12 connector and LED status indicators simplify installation and operation.

Order Now

Available for immediate shipping worldwide.
