B&R X20IF1082 | Interface Module

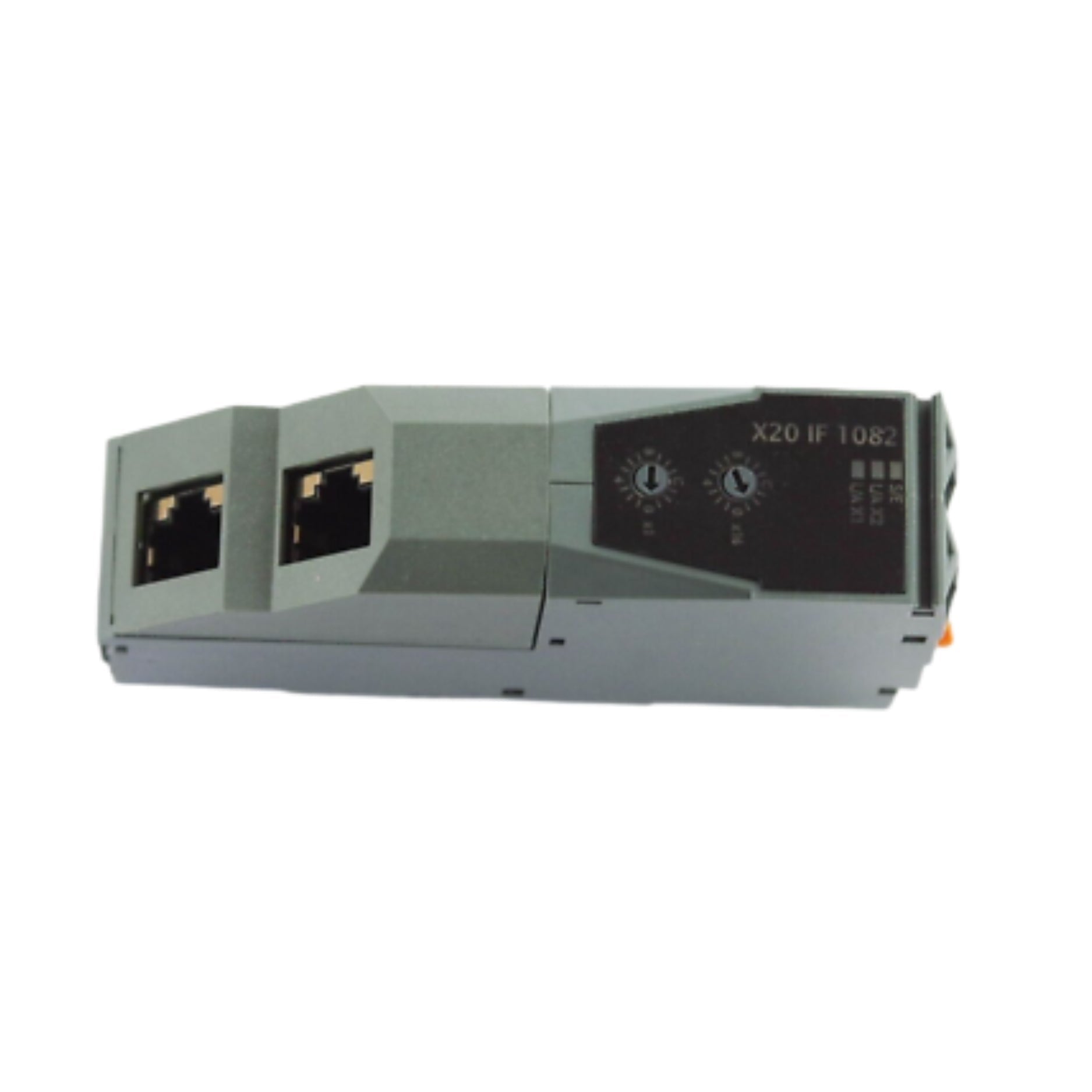

B&R X20IF1082 | RS232/RS485 Serial Interface Module – X20 Series

Overview

The B&R X20IF1082 is a serial interface module from the X20 series, offering one configurable channel for RS232 or RS485 communication. It enables connection to third-party devices such as sensors, drives, and barcode scanners via serial protocols, enhancing the flexibility of automation systems.

Key Features

• Communication Ports: 1 channel (configurable as RS232 or RS485)

• Serial Protocol Support: Standard asynchronous transmission

• Baud Rate: Up to 115.2 kbps

• Connector Type: Standard X20 bus

• Diagnostics: Integrated status LEDs for TX/RX

• Mounting: DIN rail via X20 terminal blocks

• Electrical Isolation: Channel-to-bus isolation

Technical Specifications

• Model Number: X20IF1082

• Series: X20

• Interface Type: RS232/RS485 (configurable)

• Baud Rate: Up to 115.2 kbps

• Number of Channels: 1

• Transmission Mode: Half duplex (RS485) or full duplex (RS232)

• Isolation: Galvanic isolation between serial line and logic

• Power Supply: 24 VDC

• Mounting: DIN rail

• Operating Temperature: -25°C to +60°C

• Certifications: CE, UL, RoHS

• Weight: Approx. 100 g

Applications

• Industrial Communication: Connect sensors, HMIs, or drives via serial

• Legacy Equipment Integration: Add older devices to modern PLC systems

• Machine Control: Reliable communication in compact automation setups

• OEM Machinery: Flexible interface for RS232 or RS485 devices

Why Choose B&R X20IF1082?

• Dual Mode Flexibility: RS232 or RS485 on a single port

• Reliable Transmission: Optimized for industrial environments

• Compact Format: Saves space in control cabinets

• Seamless Integration: Fully compatible with B&R X20 PLC systems

Order Now

In stock and available for fast worldwide delivery. Contact us for matching terminal blocks, cables, and X20-compatible automation components.
