B&R 5PP520.1505-00 | 15" Power Panel

B&R 5PP520.1505-00 | 15" Fanless Industrial HMI with Intel Atom™ and Resistive Touchscreen

Overview

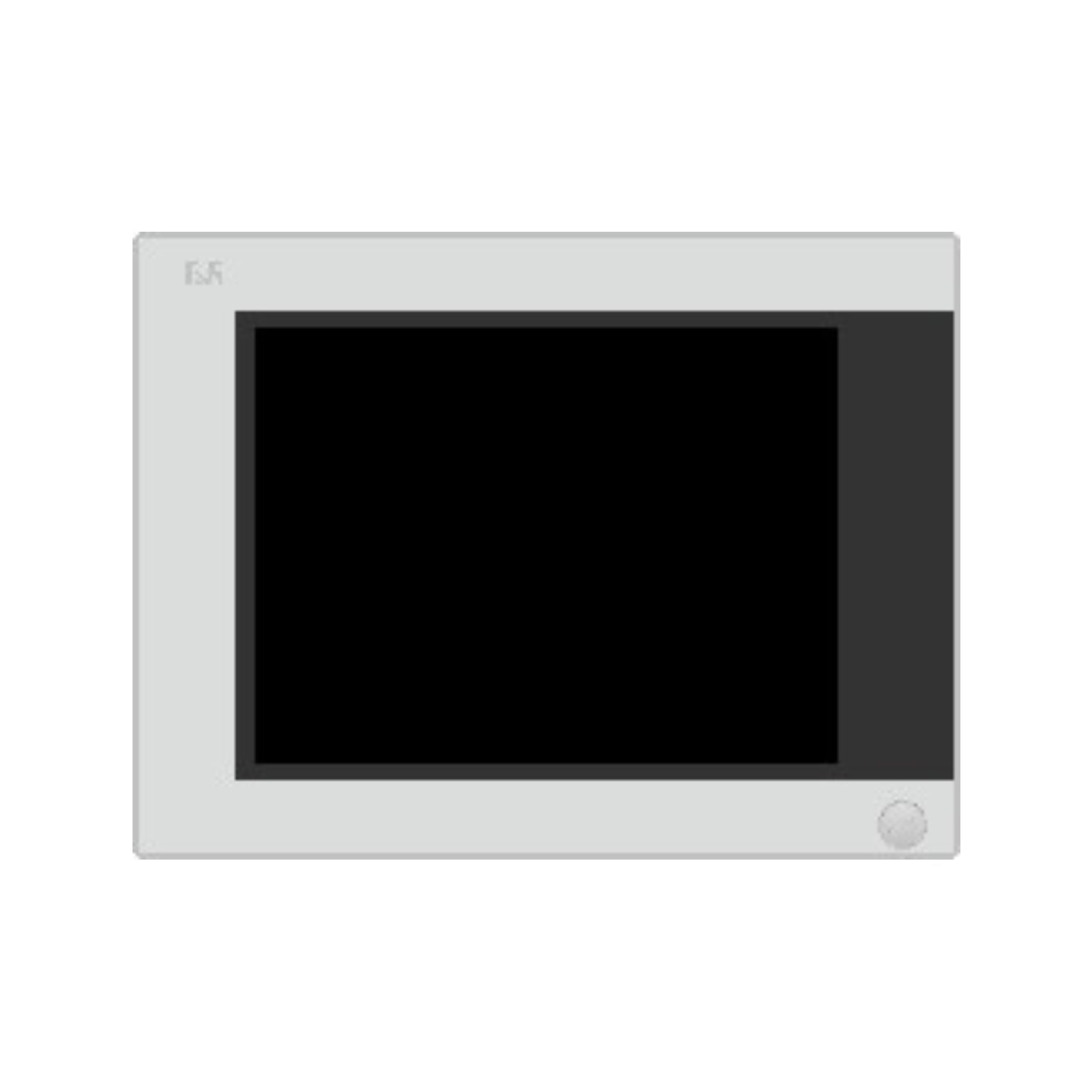

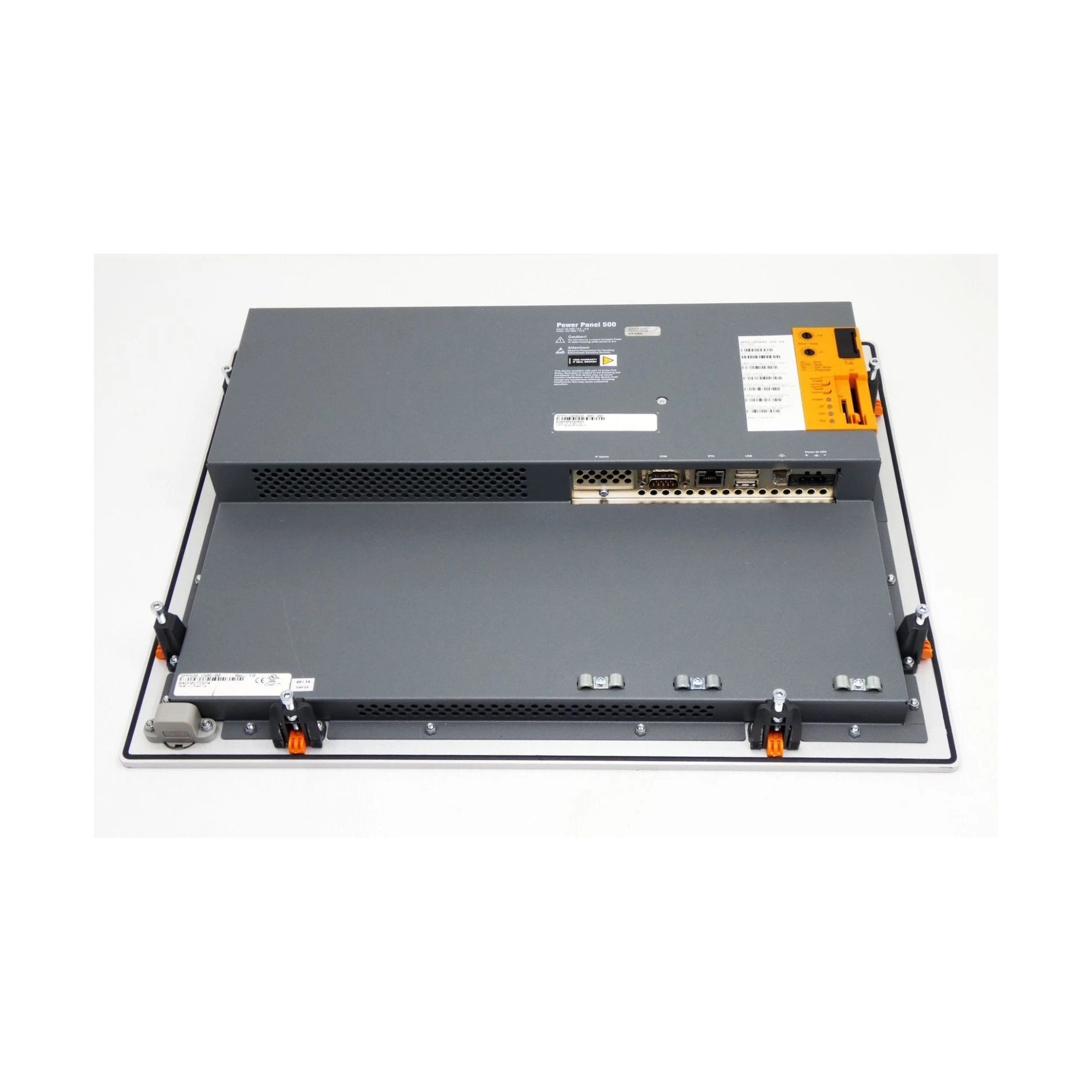

The B&R 5PP520.1505-00 is a high-performance 15-inch industrial Power Panel that combines XGA TFT display quality with analog resistive touch functionality and Intel® Atom™ technology. Designed for fanless operation, it offers compact installation depth and robust communication features, making it an ideal HMI for demanding automation environments.

Key Features

• Display: 15" XGA TFT color display (1024 × 768 resolution)

• Touch Technology: Analog resistive touchscreen

• Processor: Intel® Atom™ for efficient, fanless operation

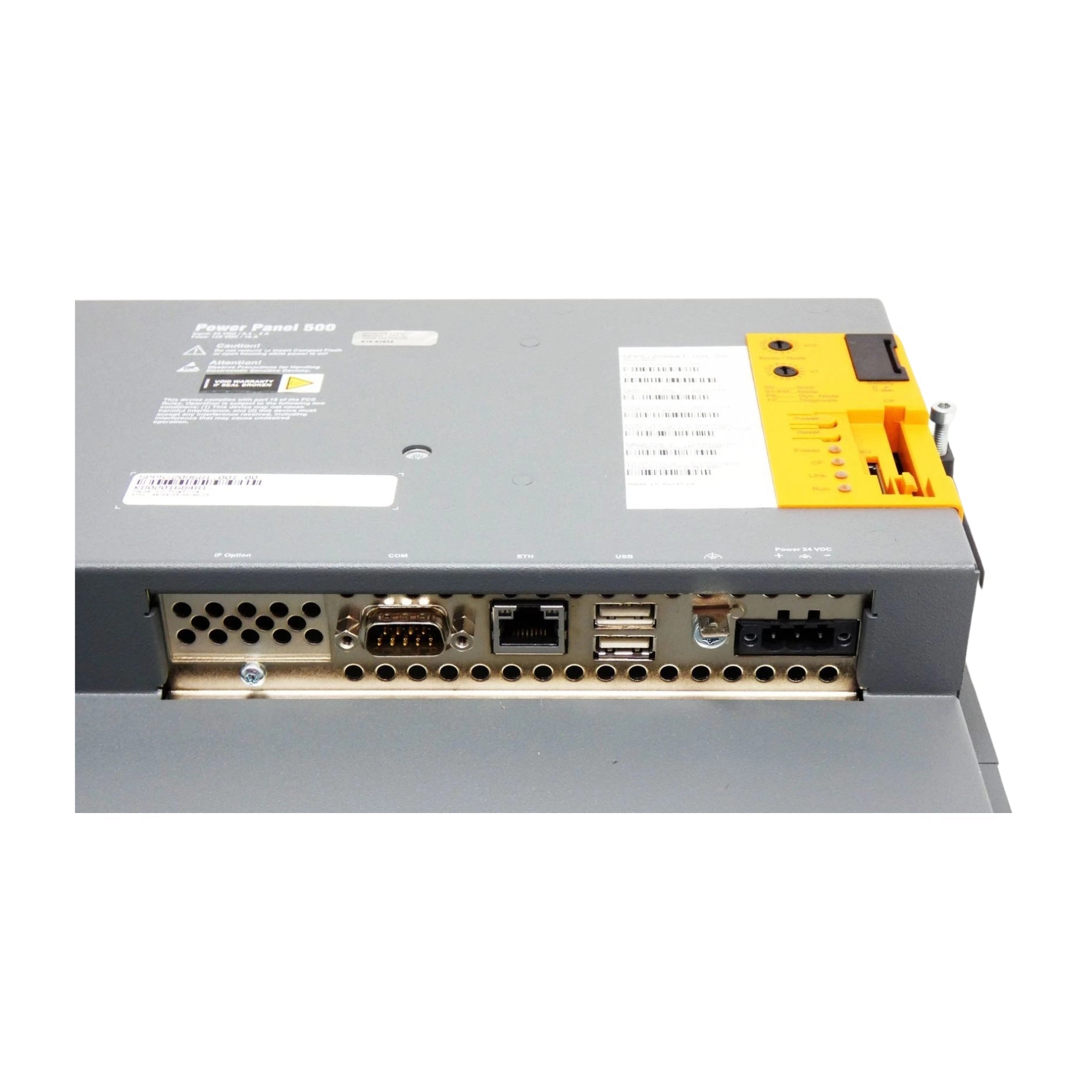

• Communication Ports:

  • 1x RS232

  • 3x USB 2.0

  • 1x Ethernet 10/100/1000

• Expandable: Interface board can be added for additional functionality

• Front Protection: IP65-rated front panel

• Power Supply: 24 VDC (connector ordered separately)

• Fanless Design: Silent operation with reduced maintenance

• Mounting: Panel-mount for control cabinet integration

Technical Specifications

• Model: 5PP520.1505-00

• Display Size: 15 inches

• Resolution: XGA 1024 × 768

• Touchscreen Type: Analog resistive

• Processor: Intel® Atom™

• Memory & Storage: Varies by configuration (expandable via interface board)

• Interfaces: RS232, USB (3x), Ethernet (1x Gigabit)

• Power Input: 24 VDC ±25% (connector not included)

• Cooling: Fanless, convection-cooled

• Protection Rating: IP65 front (when mounted)

• Operating Temperature: Typically 0°C to +50°C

• Installation Depth: Compact design for shallow panels

• Weight: Approx. 3.5 kg

Applications

• Industrial Machine Interfaces

• Process and Motion Control Systems

• SCADA and Automation Panels

• Factory Monitoring Stations

• OEM Equipment Integration

Why Choose B&R 5PP520.1505-00?

• High-resolution 15" display with clear visuals

• Fanless Intel® Atom™ CPU for reliability and silent operation

• Multi-interface connectivity for flexible integration

• Upgradeable architecture with interface board support

• Rugged front protection ideal for harsh industrial settings

NOVO produto em embalagem original lacrada. O produto pode ser de versão ou design mais antigo. A embalagem pode ter marcações, sinais de descoloração e desgaste. Garantia DDPARTSSOLUTION : 1 ano. Garantia e suporte do fabricante NUNCA se aplicam
