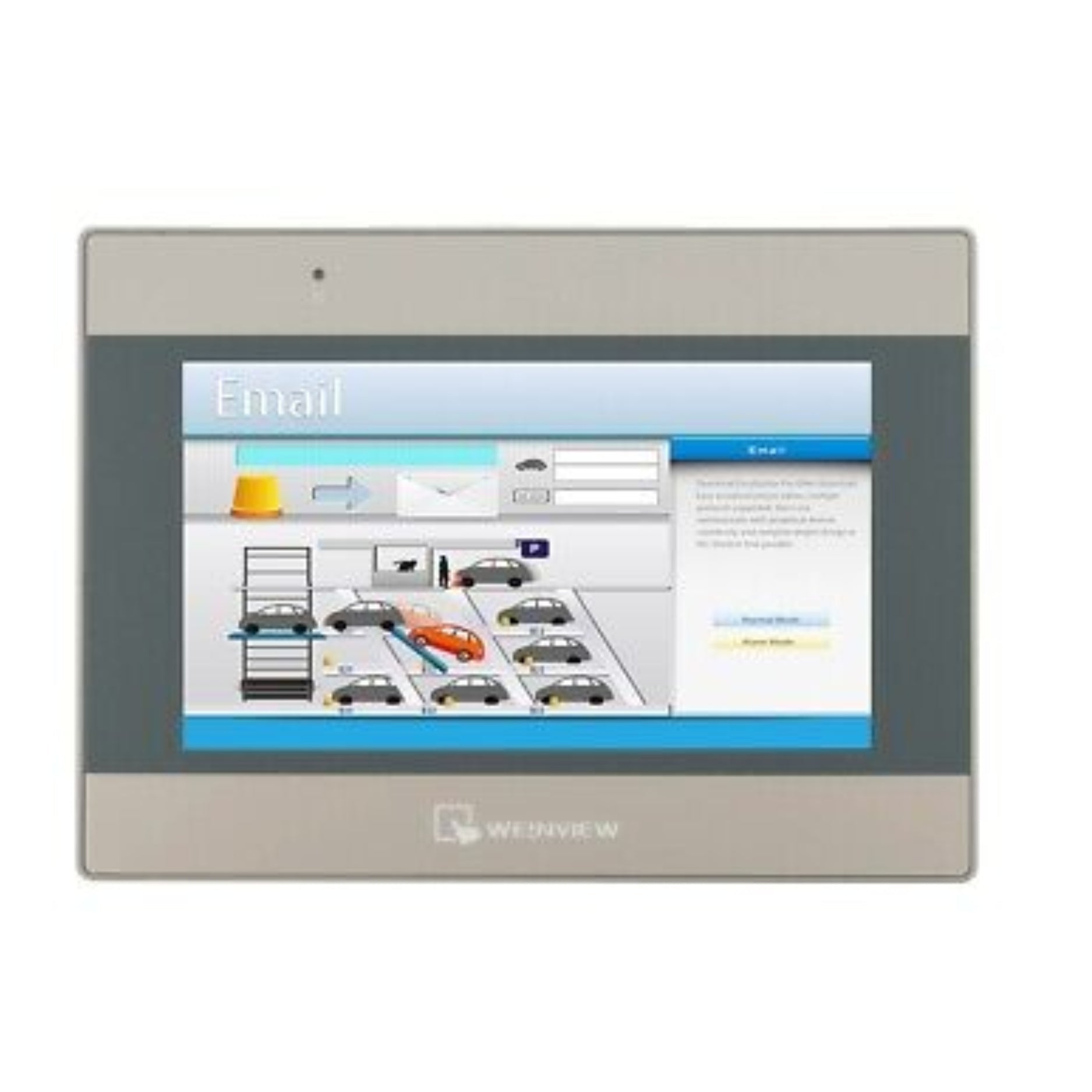

Weintek MT8072iE | 7-Inch HMI Touchscreen

Weintek MT8072iE | 7-Inch HMI Panel with Ethernet, RS-232/RS-485, and EasyBuilder Pro Support

Overview

The Weintek MT8072iE is a powerful and compact 7-inch HMI touchscreen designed for industrial control applications, offering excellent visual performance, versatile communication, and user-friendly configuration with EasyBuilder Pro software. It features 800x480 resolution, Ethernet, and dual serial ports (RS-232 and RS-485), making it compatible with most PLC brands and ideal for OEMs and system integrators.

Key Features

• 7" Widescreen TFT LCD – 800x480 resolution, 16.7M colors

• Touch Interface – 4-wire resistive touchscreen

• Ethernet Port (10/100 Mbps) – For networking and remote access

• RS-232 & RS-485 Ports – Broad PLC protocol compatibility

• USB Host Port – For data logging and device connectivity

• Real-Time Clock (RTC) – Time-stamped data tracking

• EasyBuilder Pro Software – Intuitive, feature-rich, free configuration tool

• Slim & Durable Design – For panel-mounted environments

Technical Specifications

• Model: MT8072iE

• Display Size: 7”

• Resolution: 800 x 480 pixels (16:9)

• Touchscreen: 4-wire resistive

• Processor: 32-bit RISC CPU

• Memory: 128 MB Flash / 128 MB RAM

• Communication Ports:

  • 1x Ethernet (10/100 Mbps)

  • 1x RS-232

  • 1x RS-485 (2W/4W)

  • 1x USB Host

• Input Voltage: 24V DC ±15%

• Power Consumption: 400 mA @ 24V DC

• Dimensions (WxHxD): 200.1 x 146.1 x 36 mm

• Panel Cutout: 192 x 138 mm

• Operating Temperature: 0°C to +50°C

• Mounting: Panel mount

Applications

• Machine Interfaces (OEMs)

• Factory Automation Systems

• PLC Monitoring and Control

• SCADA Front-End Terminals

Why Choose the MT8072iE?

• Affordable yet powerful HMI with broad PLC compatibility

• Reliable performance in demanding industrial environments

• Easy setup with free EasyBuilder Pro software

Order Now

In stock and available for worldwide shipping.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
