Weintek MT8051iP | 4.3" HMI Touchscreen Panel for Industrial Automation

Overview

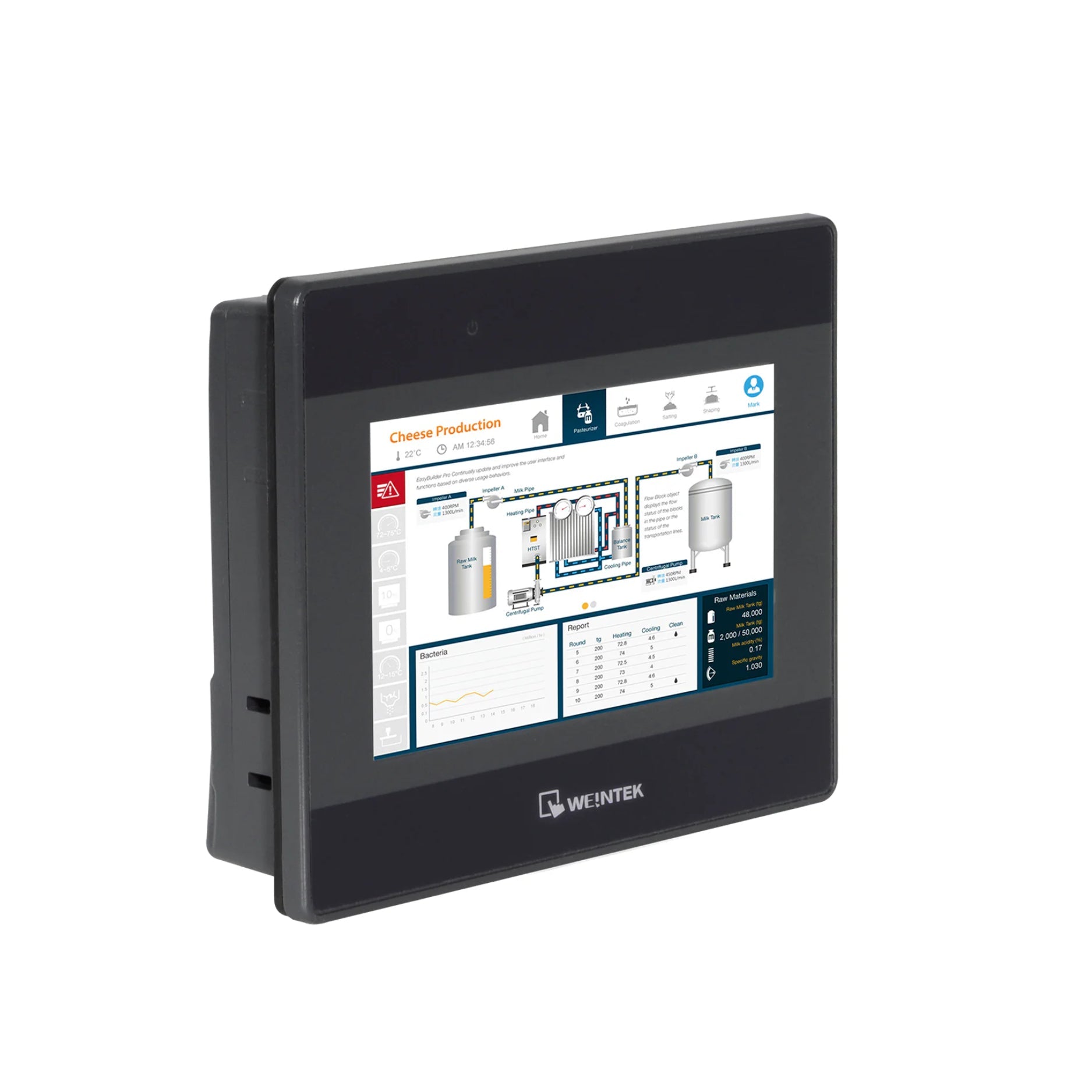

The Weintek MT8051iP is a compact 4.3-inch Human-Machine Interface (HMI) designed for industrial automation applications. Featuring a vibrant TFT LCD display and a 600MHz Cortex-A8 processor, it offers reliable performance for monitoring and controlling industrial processes. With built-in Ethernet and serial communication ports, it ensures seamless integration with various PLCs and control systems.

Key Features

• Display: 4.3" TFT LCD, 480 x 272 resolution, 16.7 million colors

• Touchscreen: 4-wire resistive touch panel

• Processor: 32-bit RISC Cortex-A8 600MHz CPU

• Memory: 128 MB Flash, 128 MB RAM

• Communication Ports:

  • 1 x Ethernet (10/100 Base-T)

  • COM1: RS-232/RS-485 2W/4W

  • COM3: RS-485 2W

• USB: 1 x USB 2.0 Host

• Power Supply: 10.5~28VDC

• Mounting: Panel mount with NEMA4 / IP65 compliant front panel

• Operating Temperature: 0°C to 50°C (32°F to 122°F)

• Software: Compatible with EasyBuilder Pro

• Certifications: CE marked

• Optional: Supports EasyAccess 2.0 for remote access

Technical Specifications

• Dimensions (W x H x D): 128 x 102 x 32 mm

• Panel Cutout: 119 x 93 mm

• Weight: Approx. 0.25 kg

• Backlight: LED, >30,000 hours lifespan

• Contrast Ratio: 500:1

• Brightness: 400 cd/m²

• Viewing Angle (T/B/L/R): 50°/70°/70°/70°

• Protection Structure: NEMA4 / IP65 compliant front panel

• Power Consumption: 800mA @ 12VDC; 400mA @ 24VDC

• Isolation Resistance: Exceeds 50MΩ at 500VDC

• Vibration Endurance: 10 to 25Hz (X, Y, Z direction 2G 30 minutes)

• Enclosure Material: Plastic

• Real-Time Clock (RTC): Built-in (CR2032 3V lithium battery)

• SD Card Slot: Not available

• USB Client: Not available

• CAN Bus: Not available

• HDMI: Not available

• Audio Output: Not available

• RS-485 Dual Isolation: Not available

• Weincloud EasyAccess 2.0: Optional

Applications

• Factory Automation: Monitor and control production lines

• Building Management Systems: Interface for HVAC, lighting, and security systems

• Energy Management: Display and control for renewable energy systems

• Process Control: Visualization and control in chemical, pharmaceutical, and food industries

Why Choose the MT8051iP?

• Enhanced Performance: 600MHz Cortex-A8 processor ensures smooth operation

• Versatile Connectivity: Multiple communication ports for flexible integration

• User-Friendly Interface: Intuitive touchscreen for easy operation

• Durable Design: Robust construction suitable for industrial environments

Order Now

Available and ready for fast international shipping.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
