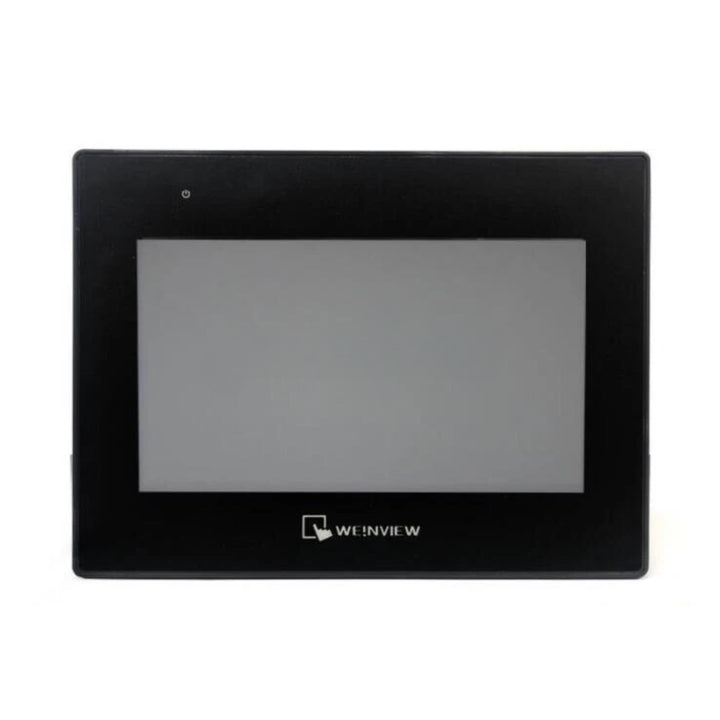

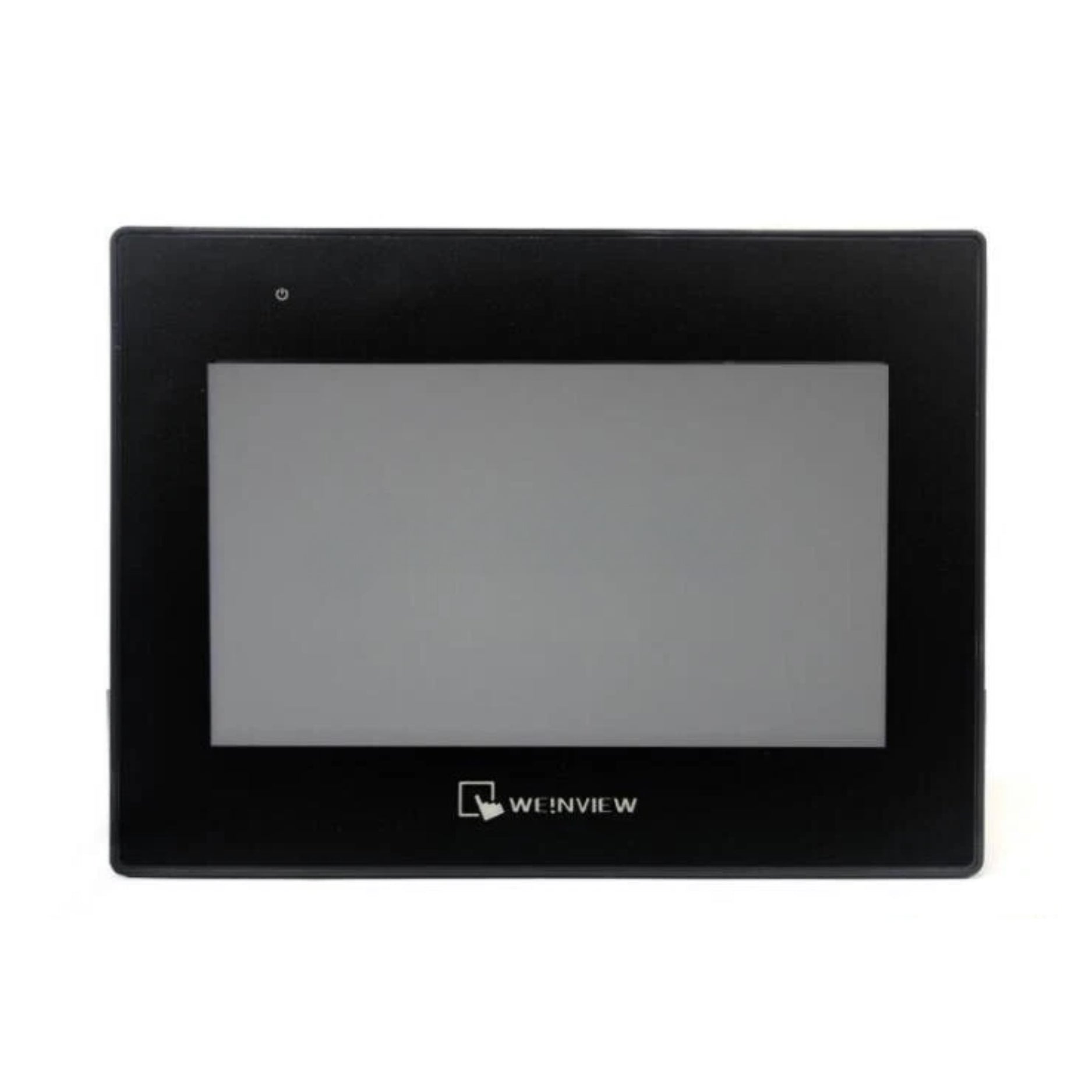

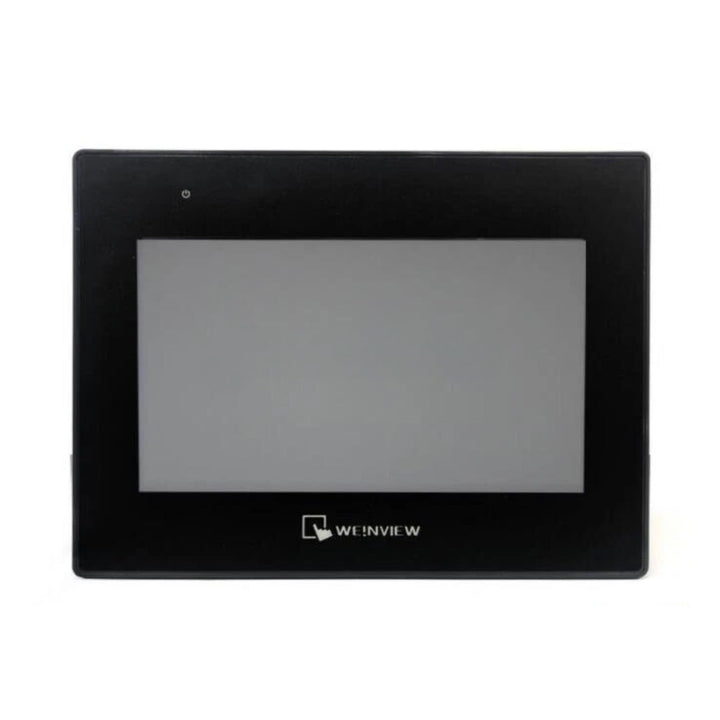

Weintek cMT2109X | 10.1-Inch Smart HMI

Weintek cMT2109X | High-Performance 10.1-Inch Capacitive Multi-Touch Smart HMI

Overview

The Weintek cMT2109X is a powerful, modern 10.1-inch smart HMI featuring a capacitive multi-touch display and a high-speed quad-core processor. Built for the next generation of IIoT and industrial control systems, this HMI supports dual Gigabit Ethernet, OPC UA, MQTT, and SQL database integration, making it ideal for complex automation and real-time data exchange environments.

Key Features

• 10.1” Capacitive Touchscreen – 1280x800 resolution, multi-touch gesture support

• Quad-Core Cortex-A17 Processor – Smooth graphics and fast response

• Dual Gigabit Ethernet Ports – Ideal for segmented OT/IT networks

• Multiple Serial Ports – RS-232 and RS-485 2W/4W for multi-device communication

• Built-in Protocols – OPC UA, MQTT, SQL, Modbus TCP/IP, and more

• USB Host & SD Slot – For data logging and device connectivity

• EasyAccess 2.0 Compatible – Secure remote access capability (license required)

• Fanless Design – Silent, industrial-grade construction

• NEMA4/IP65 Front Panel – Dustproof and water-resistant

Technical Specifications

• Model: cMT2109X

• Display: 10.1” TFT LCD, 1280 x 800 pixels, 16.7M colors

• Touch Panel: Capacitive multi-touch

• CPU: ARM Cortex-A17 Quad-Core

• Memory: 4GB eMMC Flash, 1GB RAM

• Ethernet Ports: 2 x 10/100/1000 Mbps

• Serial Ports:

  • COM1: RS-232

  • COM2/3: RS-485 2W/4W

• USB Host: 1 x USB 2.0

• SD Card Slot: Supports SD/SDHC

• Input Voltage: 24V DC ±20%

• Power Consumption: Approx. 650 mA @ 24V DC

• Dimensions (WxHxD): 271 x 213 x 36 mm

• Panel Cutout: 260 x 202 mm

• Operating Temperature: 0°C to +50°C

• Mounting Type: Panel mount

• Protection Rating: IP65 front panel

• Software Support: EasyBuilder Pro (latest version recommended)

Applications

• Industrial IoT Systems

• Smart Manufacturing Interfaces

• Advanced Machine Automation

• SCADA & MES Front-End Solutions

• Remote Control Panels with Secure Access

Why Choose the cMT2109X?

• Larger high-resolution display with multi-touch interface

• Ready for Industry 4.0 with built-in IIoT protocols

• Flexible connectivity with dual Ethernet and serial ports

Order Now

Available for worldwide shipping.
