WAGO 753-461

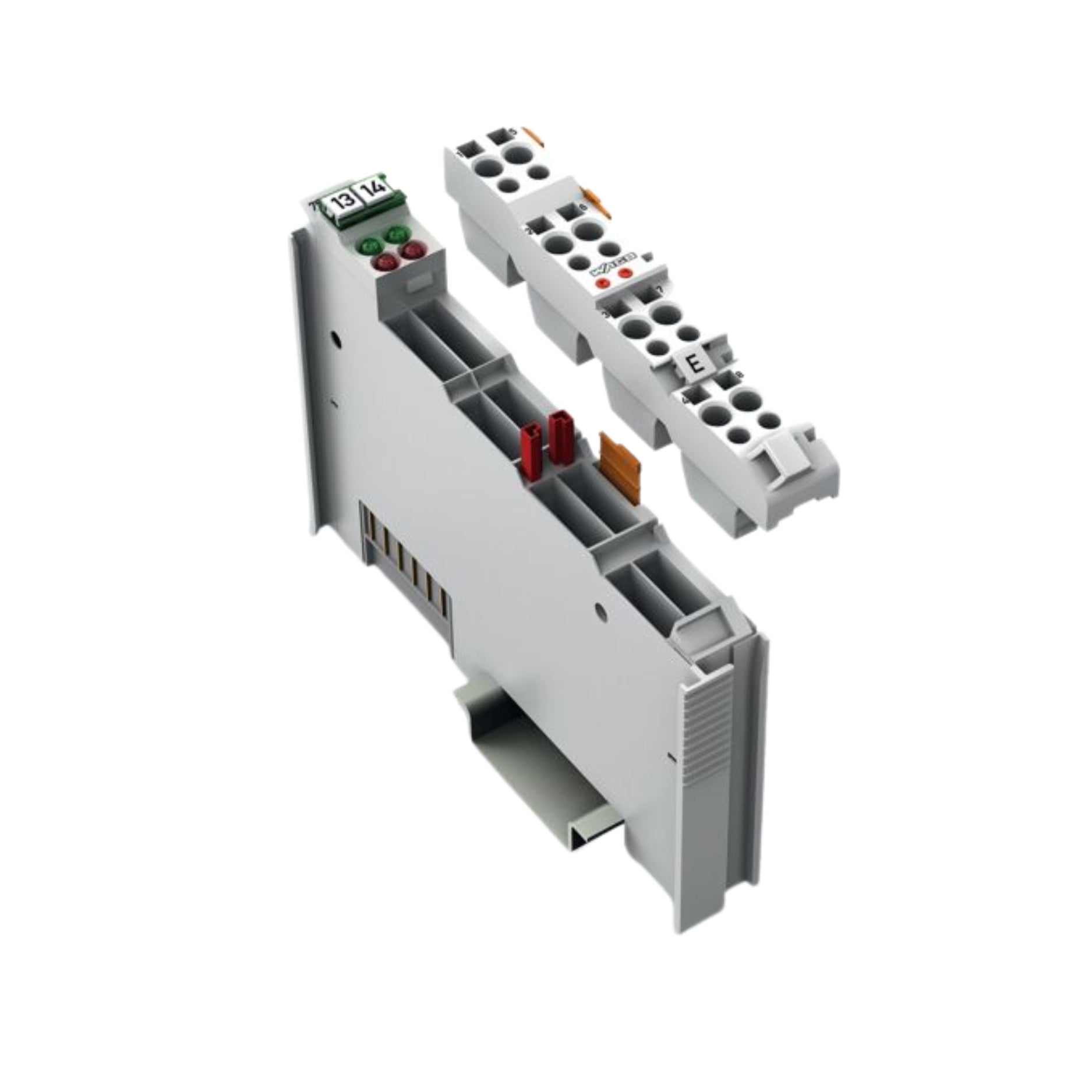

WAGO 753-461 – RTD Resistance Analog Input Module

Overview

The WAGO 753-461 is a 2-channel analog input module designed for direct connection of Pt and Ni resistance temperature detectors (RTDs). It supports 2-wire and 3-wire sensor connections and provides automatic linearization across the full temperature range. Each channel includes diagnostics for short circuits and wire breaks, with LED indication for operation and errors. Shield connections are tied directly to the DIN-rail for noise immunity.

Key Features

• Two RTD/resistance sensor inputs

• Supports Pt100, Pt200, Pt500, Pt1000, Ni100, Ni120, Ni1000

• 2-wire or 3-wire connection per channel

• Resolution of 0.1 °C

• Temperature measurement range: −200 … +850 °C

• Linearization over the full measurement range

• Measuring current ~0.5 mA typical

• Error diagnostics with LED status indicators

• Shielding connected to DIN-rail for improved EMC

• Galvanic isolation between system and field side

Technical Specifications

Part Number: 753-461
Number of Analog Inputs: 2
Sensor Types: Pt100 (default), Pt200, Pt500, Pt1000, Ni100, Ni120, Ni1000
Sensor Connection: 2-wire or 3-wire
Resolution: 0.1 °C
Conversion Time: ~320 ms per channel
Measurement Error (at 25 °C): ≤ 0.2 % of full scale
Temperature Coefficient: ≤ ±0.01 % / K
Response Time: ≤ 4 s
Measuring Current: ~0.5 mA typical
Temperature Range: −200 … +850 °C (depending on RTD type)
System Supply Voltage: 5 VDC via data contacts
Current Consumption (5 V system): ~80 mA
Isolation Voltage (System vs Field): 500 V
Indicators: Green LED for module ready; Red LEDs for channel errors
Connection Technology: CAGE-CLAMP®
Conductor Size: 0.08 … 2.5 mm² (AWG 28 … 14)
Wire Strip Length: 9 … 10 mm
Width: ~12 mm
Height: ~100 mm
Depth: ~69.8 mm
Depth from Top Edge of DIN-Rail: ~62.6 mm
Operating Temperature: 0 … +55 °C
Storage Temperature: −40 … +85 °C
Protection Rating: IP20
Pollution Degree: 2

Applications

• Industrial temperature measurement with Pt100 and other RTD sensors

• Systems requiring precise measurement across wide ranges (−200 to +850 °C)

• Automation panels needing diagnostics for wiring faults

• Mixed I/O systems where space-efficient RTD modules are required

Why Choose WAGO 753-461

• Flexible compatibility with multiple RTD types

• High resolution and accuracy for demanding applications

• Diagnostics and LED indicators simplify troubleshooting

• Galvanic isolation ensures reliable measurements in noisy environments

• Compact size for modular automation setups

Order Now

The WAGO 753-461 is part of the WAGO I/O System 750/753 product line and is available for purchase. Ships worldwide.
