WAGO 750-833

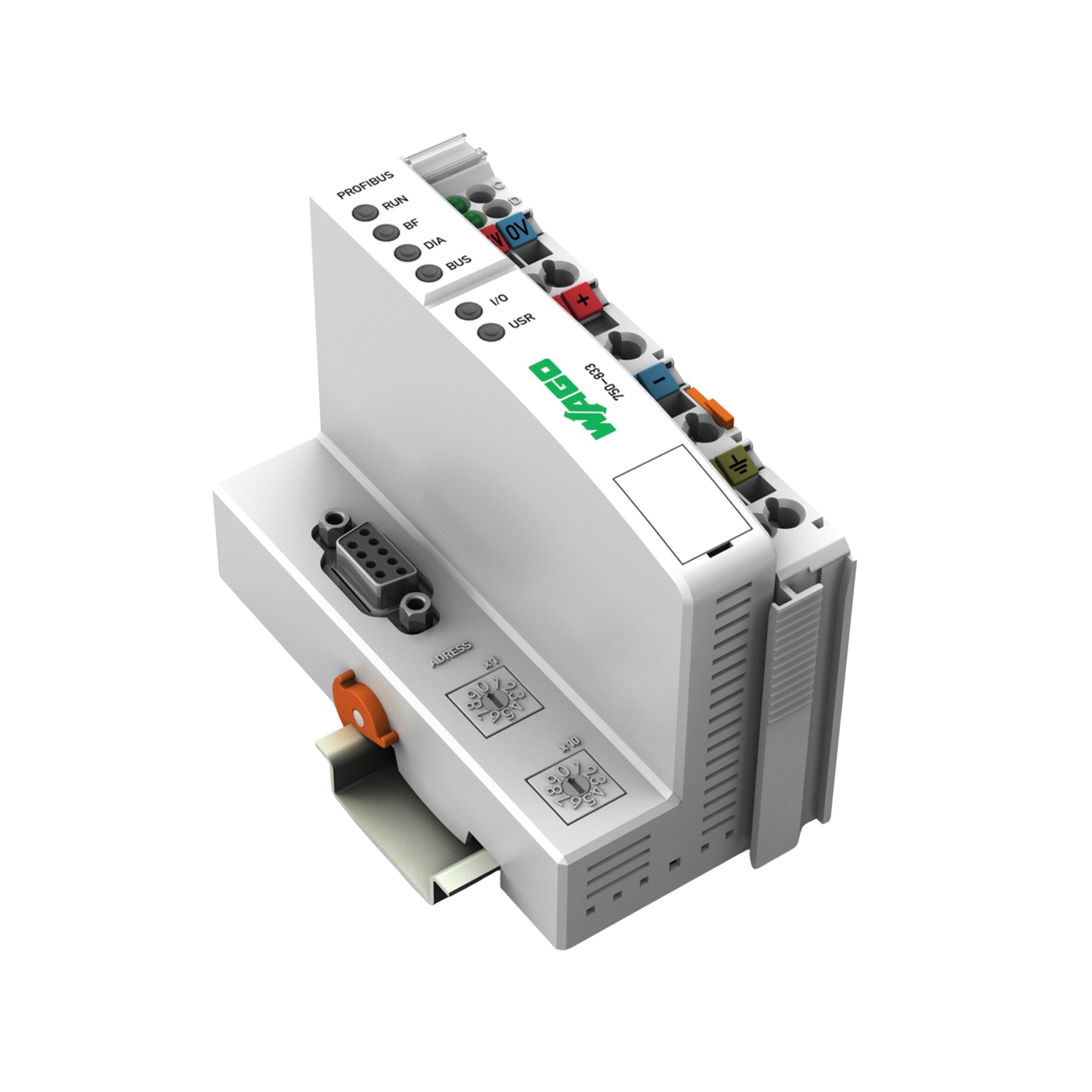

WAGO 750-833 – PROFIBUS DP/V1 Controller (Slave)

Overview

The WAGO 750-833 is a stand-alone PROFIBUS DP/V1 controller (slave) that combines CPU, fieldbus communication, and I/O interface in one device. It supports IEC-61131-3 programming languages and allows the user program to access both the fieldbus data and local I/O data. It is suitable for decentralized control, reducing load on a central PLC, performing preprocessing at the field level, and maintaining compact installations.

Key Features

• PROFIBUS DP/V1 slave communication

• IEC-61131-3 compliant programming (IL, LD, FBD, ST, SFC, CFC)

• Fast cycle time (< 3 ms under typical load)

• Supports up to 63 I/O modules per node

• High data capacity: process image up to 244 bytes in / 244 bytes out

• Rotary or DIP configuration for node address, baud rate etc.

• LEDs for status: RUN, Bus Fault, Diagnostics, I/O, etc.

• Field supply and system supply isolation (≈ 500 V)

Technical Specifications

Part Number: 750-833
Device Type: PROFIBUS DP/V1 Controller (Slave)
CPU: 16-bit
Program Memory: ≈ 128 kB
Data Memory (RAM): ≈ 64 kB
Non-Volatile Software Memory: ≈ 8 kB
Fieldbus Input Process Image: Max 244 bytes
Fieldbus Output Process Image: Max 244 bytes
Max Number of Fieldbus I/O Modules: 63
Max Number of I/O Points: up to 6,000 (with proper setup)
Baud Rate: 9.6 kBaud … 12 MBaud
Bus Segment Length (max.): ~1,200 m
Supply Voltage (System, local CPU): 24 VDC (-25 % … +30 %)
Field Supply Voltage: 24 VDC via power jumper contacts
Current Consumption (System 5 V Side): ~200 mA
Current Consumption (24 V Field Side, under load): ~500 mA
Power Jumper Contacts Capacity: ~10 A
Isolation Voltage between System vs Field: ~500 V
Connection Types: D-Sub 9-pin for PROFIBUS; CAGE-CLAMP® for system and field supplies; Male 4-pole for configuration connector
Solid / Stranded Conductor Size: 0.08 … 2.5 mm² (AWG 28 … 14)
Wire Strip Length: ~8 … 9 mm
Width: ~50.5 mm
Height: ~100 mm
Depth: ~71.1 mm
Height from Top Edge of DIN Rail: ~63.9 mm
Operating Temperature: 0 °C … +55 °C
Storage Temperature: -25 °C … +85 °C
Protection Rating: IP20
Pollution Degree: 2

Applications

• PROFIBUS DP slave nodes in distributed industrial systems

• Decentralized I/O control with preprocessing to reduce master load

• Environments needing mixed digital/analog I/O with high data capacity

• Applications where compact local control and fault-tolerant status are needed

Why Choose the WAGO 750-833

• Combines fieldbus control and local I/O in one unit, saving on hardware and wiring

• High process image capacity for large I/O layouts

• Good performance at high baud rates with proven stability

• Strong isolation protects system electronics from field disturbances

• Wide industrial certification and mounting flexibility
