WAGO 750-8212

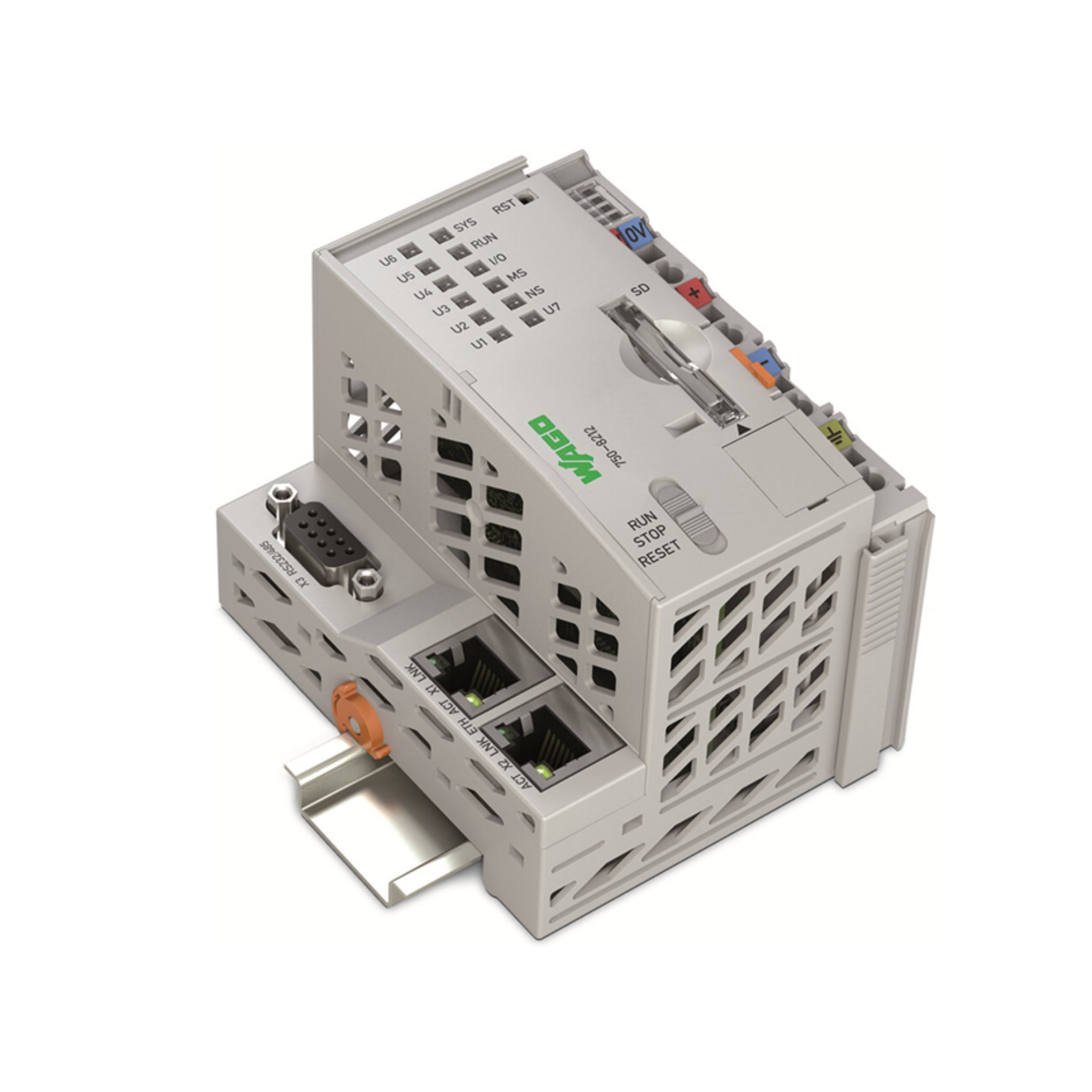

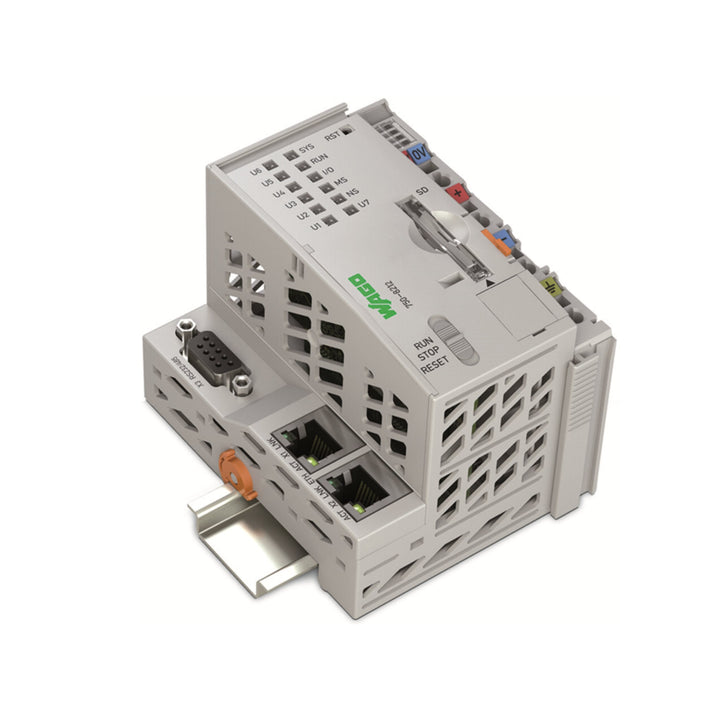

WAGO 750-8212 – PFC200 Controller (Dual-Ethernet / RS-232-485)

Overview

The WAGO 750-8212 PFC200 is a compact programmable logic controller (PLC) for the modular WAGO I/O System 750/753. It features two Ethernet interfaces, RS-232/RS-485 serial communication, and an integrated switch for Ethernet. Supports a wide variety of digital, analog, and specialty I/O modules. Programmable with IEC-61131-3 languages, and equipped for building automation, machine control, and process applications.

Key Features

• Dual Ethernet interfaces with integrated switch

• RS-232 and RS-485 serial ports

• Real-time Linux operating system (with RT-Preempt patch)

• Programming via IEC-61131-3 languages: LD, FBD, ST, IL, SFC, CFC

• Web-based configuration and management interface

• Supports large number of I/O modules per node (up to 250)

• Supports standard communication protocols like Modbus TCP/UDP and serial Modbus RTU

• High isolation between system and field supplies

• Robust design for industrial environments

Technical Specifications

Part Number: 750-8212
Controller Type: Compact PLC – PFC200 (2nd Generation)
Number of Ethernet Ports: 2
Serial Interfaces: RS-232, RS-485
Supported Protocols: Modbus TCP, Modbus UDP, Modbus RTU; plus optional others depending on firmware
CPU: ARM Cortex-A8, 1 GHz
Main Memory (RAM): 512 MB
Internal Flash Memory: 4,000 MB
Non-Volatile Memory: 128 KB
Program / Data Memory: approximately 60 MB (dynamically distributed with firmware)
Max Number of I/O Modules per Node: 250
Number of I/O Modules without Bus Extension: 64
Max Internal Process Image (Inputs / Outputs): 1,000 Words / 1,000 Words
LED Indicators: System, RUN, I/O, several user-programmable status LEDs; power supply status LEDs
System Supply Voltage: 24 VDC (-25 % … +30 %)
Typical Current Consumption from System Supply (24 V) under load: ~550 mA
Total Current Available on System Supply: ~1,700 mA
Field Supply Voltage: 24 VDC via power jumpers
Power Jumper Capacity: 10 A
Isolation Voltage (System vs Field): 500 V
Connection Technology: CAGE-CLAMP® for system & field supplies; RJ-45 for Ethernet; D-sub for serial interfaces
Conductor Size (Solid / Stranded): 0.08 … 2.5 mm² (AWG 28 … 14)
Wire Strip Length: 8 … 9 mm
Width: ~78.6 mm
Height: ~71.9 mm
Depth: ~100 mm
Height from Top Edge of DIN-rail: ~64.7 mm
Operating Temperature: 0 °C … +55 °C
Storage Temperature: -25 °C … +85 °C
Relative Humidity (non-condensing): up to 95 %
Protection Rating: IP20
Pollution Degree: 2
Shock Resistance: 15 g
Vibration Resistance: 4 g

Applications

• Compact PLC tasks in industrial, machine, and process automation

• Integration with mixed digital, analog, and specialized I/O modules

• Building automation systems requiring multiple communication interfaces

• Environments demanding real-time control over Ethernet and serial links

Why Choose the WAGO 750-8212

• Dual communication paths (Ethernet + serial) enhance connectivity and flexibility

• Large module count supports expanding systems without needing extra controllers

• Strong memory resources for complex logic and data processing

• IEC-61131-3 compatibility enables standard programming practices

• Good isolation and rugged electrical/temperature design ensure reliability in industrial conditions
