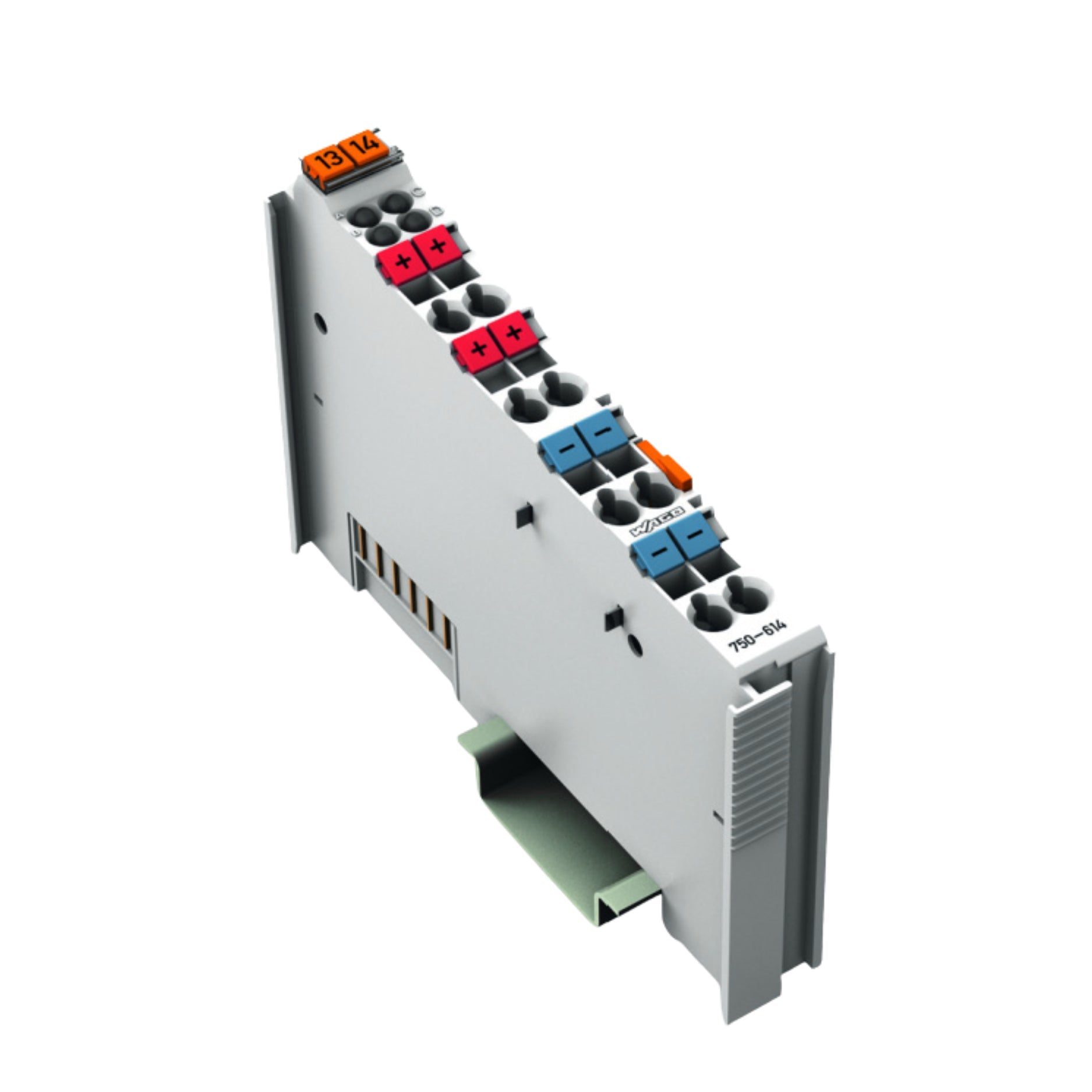

WAGO 750-614

WAGO 750-614 – Potential Distribution Module 0…230 VAC/DC

Overview

The WAGO 750-614 module provides multiple taps (“potential distribution”) of a 0-230 V AC/DC supply. It replaces the need for separate rail-mount terminal blocks, distributing power to downstream modules via power jumpers. The “Extreme” version enhances performance under harsh environmental conditions with higher surge immunity, extended temperature range, and robust mechanical resistance.

Key Features

• Distributes incoming AC/DC supply voltage across multiple outgoing power jumper contacts

• Accepts 0 … 230 VAC/DC signal voltage input and output

• Extreme version: enhanced protection against surges, shocks, vibrations, and wide temperature range

• Two incoming power jumper contacts and two outgoing power jumper contacts

• Large current carrying capacity via power jumper contacts (up to 10 A)

• Uses CAGE-CLAMP® terminals for field supply wiring

• Compact size: slim width for space-efficient installation

Technical Specifications

• Part Number: 750-614 (Extreme variant = 750-614/040-000)

• Signal Type: AC or DC voltage

• Voltage Range: 0 … 230 VAC/DC

• System Supply Voltage: 5 VDC via data contacts

• Number of Incoming Power Jumper Contacts: 2

• Number of Outgoing Power Jumper Contacts: 2

• Maximum Current via Power Jumper Contacts: 10 A

• Connection Technology: CAGE-CLAMP® (field supply)

• Solid / Stranded Conductor Size: 0.08 … 2.5 mm² (AWG 28 … 14)

• Wire Strip Length: 8 … 9 mm

• Width: ~12 mm

• Height: ~100 mm

• Depth: ~69.8 mm

• Depth from Top Edge of DIN-Rail: ~62.6 mm

• Operating Temperature (Extreme): extended range (exact limit per datasheet)

• Storage Temperature: standard industrial range (e.g. -40 … +85 °C)

• Protection Rating: IP20

• Material: Housing polycarbonate / polyamide

• Surge Voltage Immunity: ~5.0 kV (EN), ~6.0 kV UL etc.

• Certifications: Extreme environmental class (vibration, shock, EMC etc.)

Applications

• Distributing high-voltage AC/DC supply across I/O modules in harsh environments

• Replacing terminal block arrays to simplify wiring inside control cabinets

• Using in installations with vibration, temperature extremes, surge or impulse voltage exposure

• Systems where clean, reliable power distribution is needed for modules downstream

Why Choose the WAGO 750-614

• Allows tapping of 0-230 VAC/DC without needing extra terminal blocks

• High current capacity (10 A) supports heavy load distribution

• Extreme variant ensures reliability under adverse environmental conditions

• Compact module design saves space and simplifies installation

Order Now

The WAGO 750-614 is part of the WAGO I/O System 750 “Extreme” product line. Available for purchase. Ships worldwide.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
