WAGO 750-559

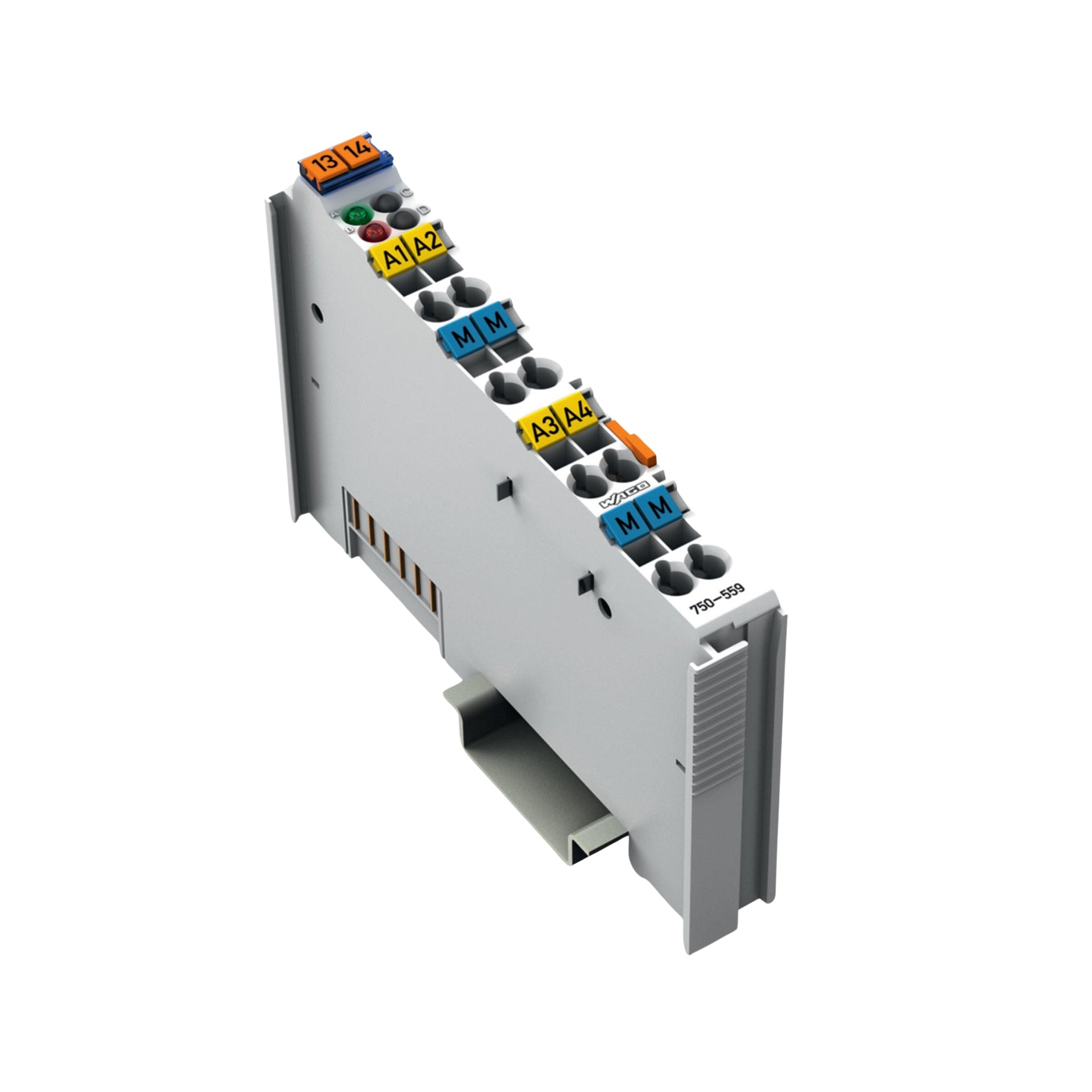

WAGO 750-559 – 4 AO 0-10 V

Overview

The WAGO 750-559 is a 4-channel analog output module in the WAGO I/O System 750. It provides 0-10 VDC output signals with a common ground for all channels. Featuring electrical isolation, 12-bit resolution, and robust measurement accuracy, this module is designed for precise control in industrial automation systems. It fits on a standard DIN-rail and is rated IP20.

Key Features

• Four analog outputs, each outputting 0-10 VDC

• 12-bit resolution per channel

• Common ground on the field side for outputs

• Electrically isolated between system and field (500 V)

• Typical conversion time ~10 ms

• Output filter settle time ~100 ms

• High load impedance (greater than 5 kΩ)

• LED indicators for function status and error detection

• Compact 12 mm module width

Technical Specifications

Part Number: 750-559
Number of Analog Outputs: 4
Signal Voltage: 0 … 10 VDC
Load Impedance: > 5 kΩ
Resolution: 12 bits
Conversion Time (typical): 10 ms
Output Filter / Settle Time (typical): 100 ms
Measuring Error at 25 °C: < ±0.1 % of full scale
Temperature Coefficient: < ±0.01 % / K of full scale
Current Consumption (internal): 125 mA
Voltage Supply: via system voltage (DC/DC)
Isolation Voltage (Field vs. System): 500 V
Wire Connection: CAGE CLAMP® for solid and fine-stranded conductors
Conductor Size (Solid / Stranded): 0.08 … 2.5 mm² (AWG 28 … 14)
Wire Strip Length: 8 … 9 mm
Width: approx. 12 mm
Height: approx. 64 mm
Depth: approx. 100 mm
Operating Temperature: 0 °C … +55 °C
Storage Temperature: -25 °C … +85 °C
Protection Rating: IP20

Applications

• Generating control signals for analog actuators, valves, or proportional devices

• Process control systems requiring accurate 0-10 V output

• Machine automation modules where compact analog output is needed

• Systems where error detection (short-circuit / overload) is important for safety and diagnostics

Why Choose the WAGO 750-559

• High precision analog output with good resolution and stability

• Common ground reduces wiring complexity

• Strong isolation for safety and noise immunity

• Fast and stable response via good conversion & filter times

• Compact size saves panel and DIN-rail space

Order Now

The WAGO 750-559 is part of the WAGO I/O System 750 product line and is available for purchase. Ships worldwide.
