WAGO 750-555

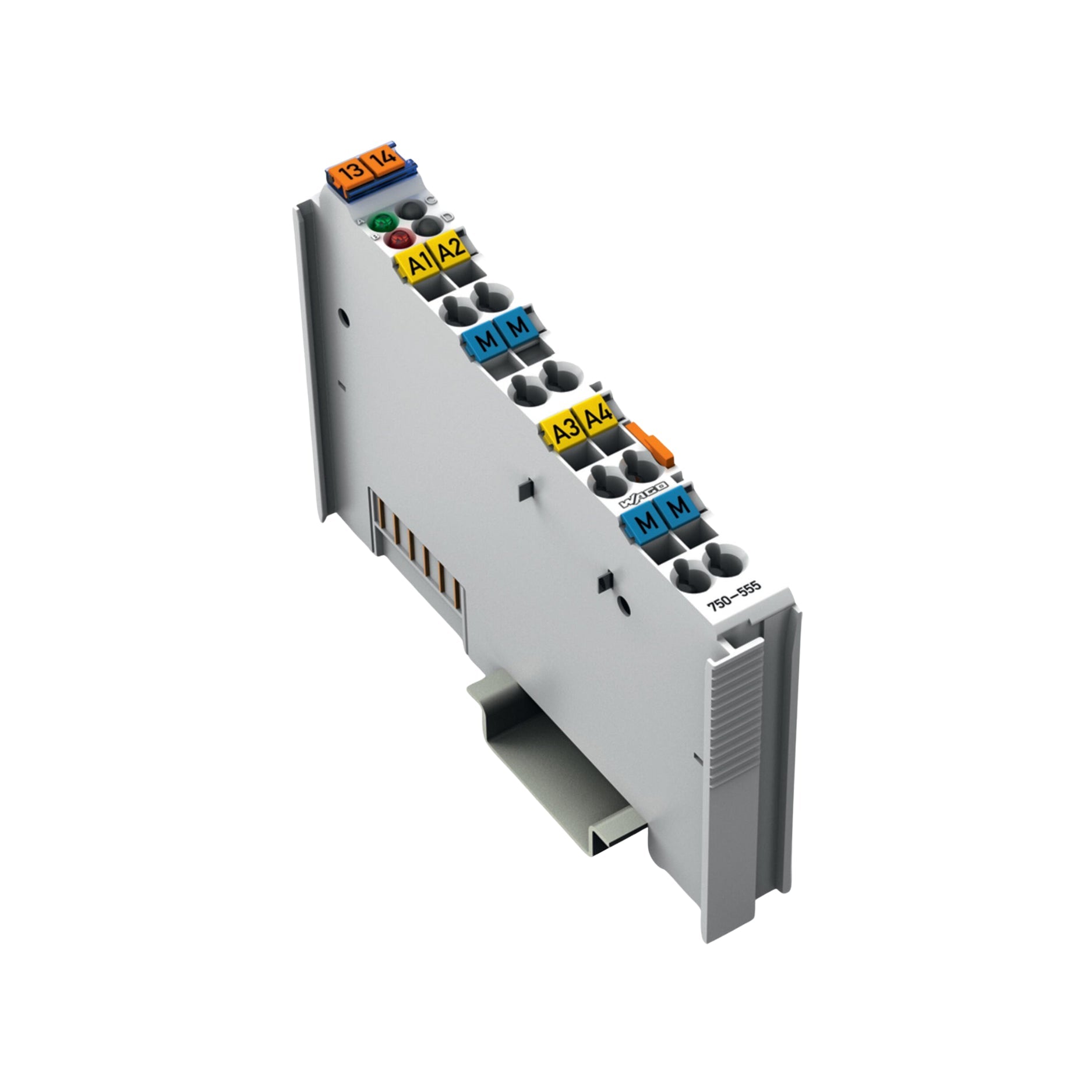

WAGO 750-555 – 4AO 4-20 mA (12-bit Analog Output)

Overview

The WAGO 750-555 is a 4-channel analog output module in the WAGO I/O System 750 series. It generates standard current signals in the 4-20 mA range with 12-bit resolution. All output channels share a common ground on the field side. The module is loop-powered on the field side and electrically isolated from the system side. It features robust performance, precise output control, and is slim (≈12 mm) to optimize panel space.

Key Features

• 4 analog outputs, current mode (4-20 mA)

• 12-bit resolution for accurate signal control

• Common ground on the field side for outputs

• Electrically isolated between system and field side (500 V)

• Typical conversion time ~10 ms

• Load impedance ranges (all channels same range)

• CAGE CLAMP® solid and fine-stranded conductor compatibility

• Slim width design (~12 mm)

Technical Specifications

Part Number: 750-555
Number of Analog Outputs: 4
Output Signal: 4-20 mA current mode
Resolution: 12 bits
Conversion Time (typical): 10 ms
Internal Current Consumption: ~60 mA
Load Impedance: 0-300 Ω or 300-600 Ω (same range for all outputs)
Isolation Voltage: 500 V system vs. field side
Wire Connection: CAGE CLAMP®
Conductor Size Solid/Stranded: 0.08 … 2.5 mm² (AWG 28 … 14)
Wire Strip Length: 8 … 9 mm
Width: ~12 mm
Height: ~100 mm
Depth: ~64 mm
Operating Temperature: 0 °C … +55 °C
Storage Temperature: -40 °C … +85 °C
Protection Rating: IP20

Applications

• Driving current-input devices such as proportional valves or analog indicators

• Loop output for analog control in process machines

• Signal generation for instrumentation and control systems

• Integration in modular I/O panels where space is limited

Why Choose the WAGO 750-555

• Precise analog output thanks to 12-bit resolution and fast conversion

• Common-ground outputs simplify wiring in many designs

• Strong isolation ensures safety and low interference

• Compact form factor conserves panel real estate

• Rugged build and broad temperature range support industrial use

Order Now

The WAGO 750-555 is part of the WAGO I/O System 750 product line and is available for purchase. Ships worldwide.
