WAGO 750-553

WAGO 750-553 – 4AO 0-20 mA Output

Overview

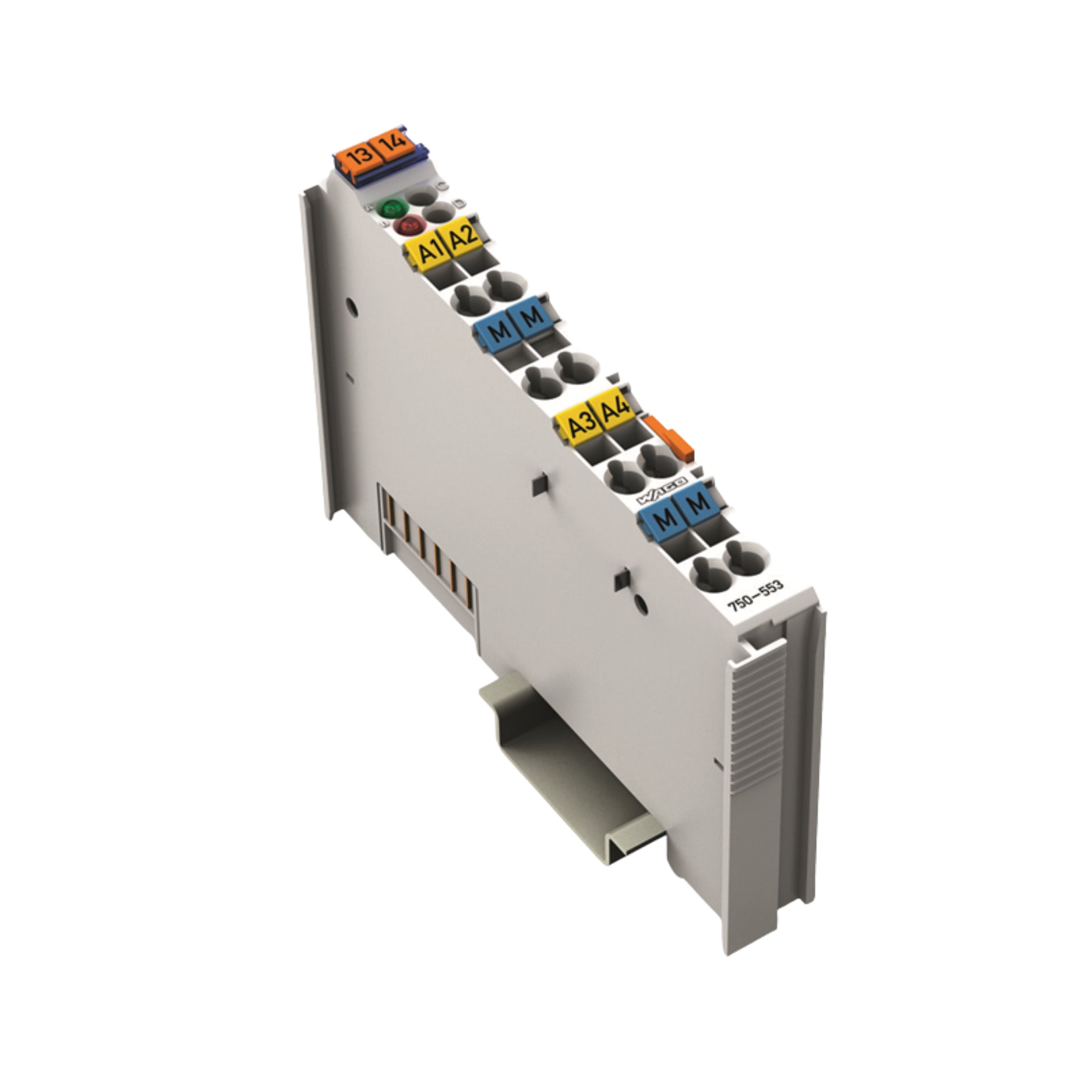

The WAGO 750-553 is a 4-channel analog output module in the WAGO I/O System 750 series. It generates standard 0-20 mA signals, is loop-powered from the field side, provides a common ground for all outputs, and includes LEDs to indicate function and error. It is suitable where current-output control is needed for actuators, valves, indicators, etc.

Key Features

• Four analog output channels, 0-20 mA current signals

• Outputs are electrically isolated from the system side

• Field-powered via 24 V supply and power jumpers

• 12-bit resolution for precise control

• Common ground potential for all channels

• LEDs for function (green) and error (red) status

• Two current ranges for load impedance: 0-300 Ω or 300-600 Ω (all outputs same range)

• Conversion time ~10 ms; recovery time ~100 ms

Technical Specifications

Part Number: 750-553
Number of Analog Outputs: 4
Signal Type: 0 … 20 mA current output
Resolution: 12 bits
Conversion Time (typical): 10 ms
Recovery Time (typical): 100 ms
Load Impedance: either 0 … 300 Ω or 300 … 600 Ω (all outputs same range)
Voltage Supply – System Side: 5 VDC via data contacts
Current Consumption (5 V System Supply): ~60 mA
Field Supply Voltage: 24 VDC (−25 % … +30 %) via power jumper contacts
System/Field Isolation Voltage: 500 V
Indicators: Green LED for output function; Red LED for error condition
Number of Incoming Power Jumper Contacts: 2
Number of Outgoing Power Jumper Contacts: 2
Connection Technology: CAGE-CLAMP® terminals
Solid / Stranded Conductor Size: 0.08 … 2.5 mm² (AWG 28 … 14)
Wire Strip Length: 8 … 9 mm
Width: approx. 12 mm
Height: approx. 100 mm
Depth: approx. 69.8 mm
Depth from Top Edge of DIN-Rail: approx. 62.6 mm
Operating Temperature: 0 °C … +55 °C
Storage Temperature: −40 °C … +85 °C
Protection Rating: IP20
Pollution Degree: 2

Applications

• Driving current-based actuators, analog valves, indicators or control loops

• Industrial panels where precise current output and isolation are required

• Processes needing centralized output modules with multiple channels

• Environments where load impedance matching and error indication are important

Why Choose WAGO 750-553

• Precise output control with fine resolution and reliable signal reproduction

• Strong electrical isolation minimizes interference and protects control electronics

• Flexible load impedance options for different output loads

• Clear status indicators help with troubleshooting and maintenance

• Compact design conserves panel space without compromising capability
