WAGO 750-502

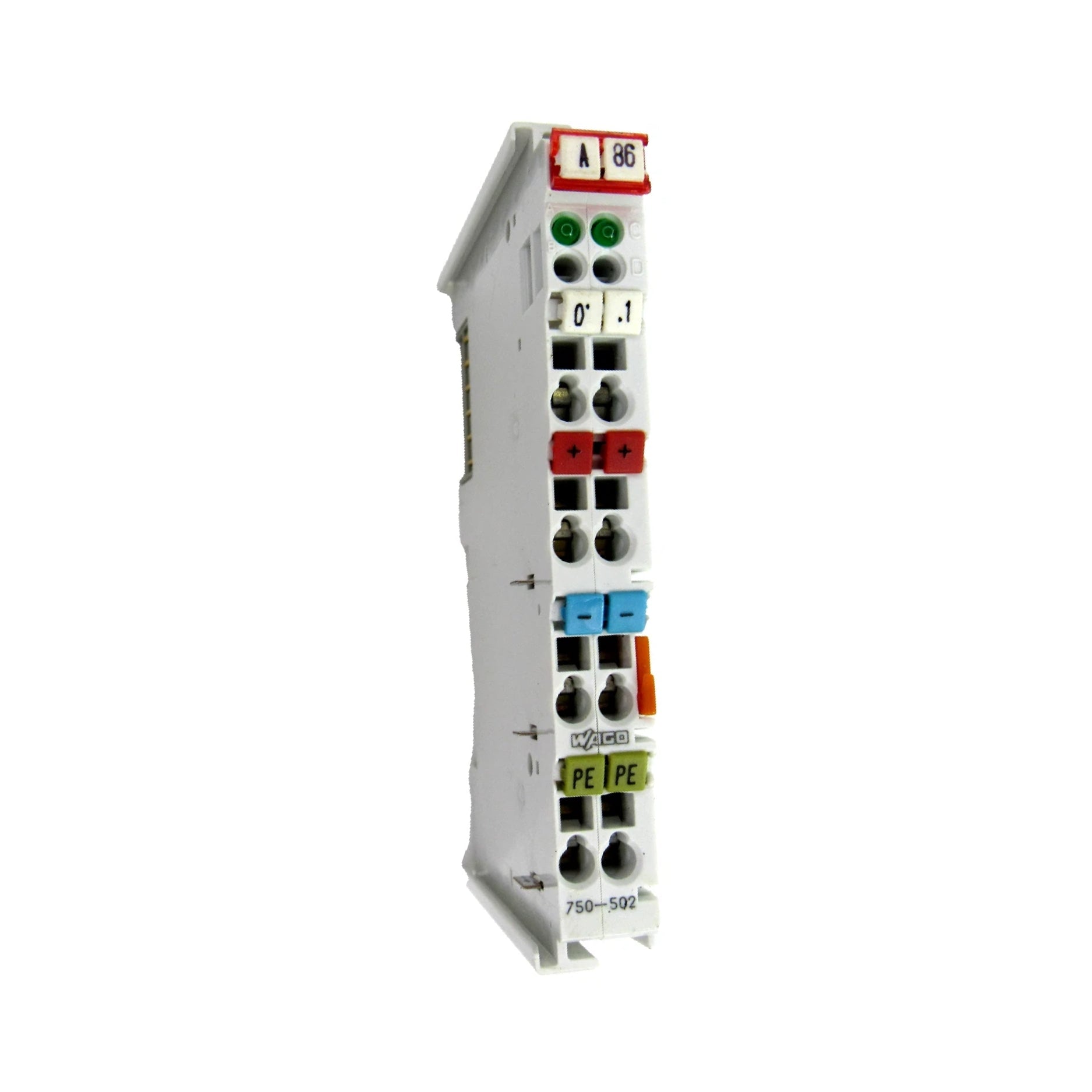

WAGO 750-502 – 2 Digital Outputs (24 VDC, 2.0 A)

Overview

The WAGO 750-502 digital output module provides two high-side channels for switching 24 VDC loads. Each channel is rated at 2.0 A, with short-circuit protection and LED status indication. It offers electrical isolation between system and field sides, making it suitable for reliable load control in automation environments.

Key Features

• Two digital output channels

• 24 VDC high-side switching

• 2.0 A output current per channel

• Short-circuit protected outputs

• LED status indicators for each channel

• Isolation between system and field circuits

• Switching frequency up to 2.5 kHz

• Slim 12 mm module width

Technical Specifications

Part Number: 750-502
Number of Outputs: 2
Signal Voltage: 24 VDC (−25 % … +30 %)
Max Output Current per Channel: 2.0 A
Load Types: Resistive, inductive, lamp loads
Switching Frequency: up to 2.5 kHz
Short-Circuit Limitation: approx. 35 A PWM, peak 44 A
Inductive Load Switch-Off Energy: max. 1.7 J
System Supply Voltage: 5 VDC via data contacts
System Current Consumption: ~3.5 mA
Field Supply Voltage: 24 VDC via power jumpers
No-Load Current Field Side: ~15 mA + charging current
Isolation Voltage (System vs Field): 500 V
Connection Technology: CAGE-CLAMP®
Conductor Size: 0.08 … 2.5 mm² (AWG 28 … 14)
Wire Strip Length: 8 … 9 mm
Dimensions (W × H × D): 12 × 100 × 69.8 mm
Depth from Top Edge of DIN-Rail: ~62.6 mm
Operating Temperature: 0 … +55 °C
Storage Temperature: −40 … +85 °C
Protection Rating: IP20
Pollution Degree: 2

Applications

• Controlling solenoids, valves, lamps, or contactors

• Industrial cabinets requiring high-current outputs

• Systems where reliable isolation is required

• Automation tasks with fast output switching needs

Why Choose the WAGO 750-502

• Provides 2.0 A per channel for direct load control

• Short-circuit protection ensures reliability and safety

• LEDs give quick status feedback per channel

• Compact design saves panel space

Order Now

The WAGO 750-502 is part of the WAGO I/O System 750 product line and is available for purchase. Ships worldwide.
