WAGO 750-460

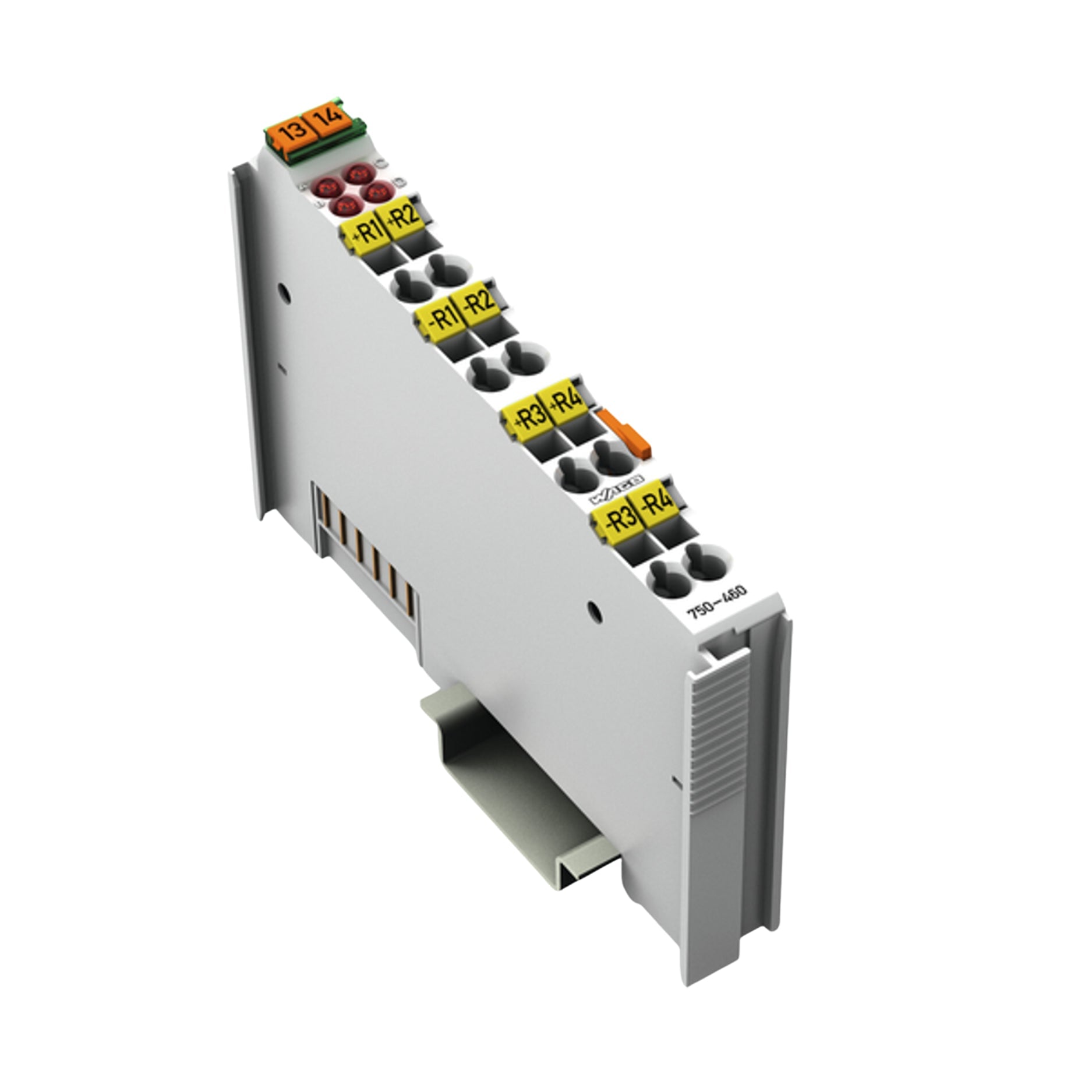

WAGO 750-460 – 4 AI Resistance Measurement for Pt RTD Sensors

Overview

The WAGO 750-460 is a 4-channel analog input module designed for connecting Pt resistance temperature detectors (RTDs). It supports 2-wire Pt sensors and converts resistance into temperature values using internal linearization. The module features built-in diagnostics for wire breaks, short circuits, and measuring range overflow, indicated with LEDs. It is ideal for precise industrial temperature measurement.

Key Features

• Four analog input channels for 2-wire Pt RTD sensors (e.g., Pt100, Pt1000)

• Automatic linearization across the full temperature range

• Diagnostic LEDs for wire break, short circuit, or overflow errors

• High resolution of 0.1 °C

• Wide measurement range: −200 … +850 °C

• Electrical isolation between system and field side (500 V)

• Compact 12 mm module width

Technical Specifications

Part Number: 750-460
Number of Analog Inputs: 4 (RTD / resistance, 2-wire)
Signal Type: Resistance measurement (Pt RTDs)
Resolution: 0.1 °C over the full range
Conversion Time (typical): 250 ms
Measurement Error at 25 °C: ≤ ±0.2 % of full scale
Temperature Coefficient: ≤ ±0.01 % / K of full scale
Measuring Current (typical): 0.5 mA
Temperature Range: −200 °C … +850 °C for Pt sensors
System Supply Voltage: 5 VDC via data contacts
Current Consumption (System Supply): 65 mA
Isolation Voltage (System vs Field): 500 V
Connection Technology: CAGE-CLAMP® (solid and fine-stranded conductors)
Conductor Size (Solid / Stranded): 0.08 … 2.5 mm² (AWG 28 … 14)
Wire Strip Length: 8 … 9 mm
Width: ~12 mm
Height: ~100 mm
Depth: ~69.8 mm
Depth from Top Edge of DIN-Rail: ~62.6 mm
Operating Temperature: 0 °C … +55 °C
Storage Temperature: −40 °C … +85 °C
Protection Rating: IP20

Applications

• Temperature measurement using Pt RTD sensors in process automation

• High-accuracy monitoring and control in industrial environments

• Systems requiring diagnostics for wiring or sensor faults

• Modular I/O setups with temperature monitoring needs

Why Choose the WAGO 750-460

• Precise measurements across a wide temperature range

• Built-in diagnostics increase reliability and reduce downtime

• Compact size saves space in dense I/O racks

• Strong isolation ensures safe and stable operation

Order Now

The WAGO 750-460 is part of the WAGO I/O System 750 product line and is available for purchase. Ships worldwide.
