WAGO 750-455

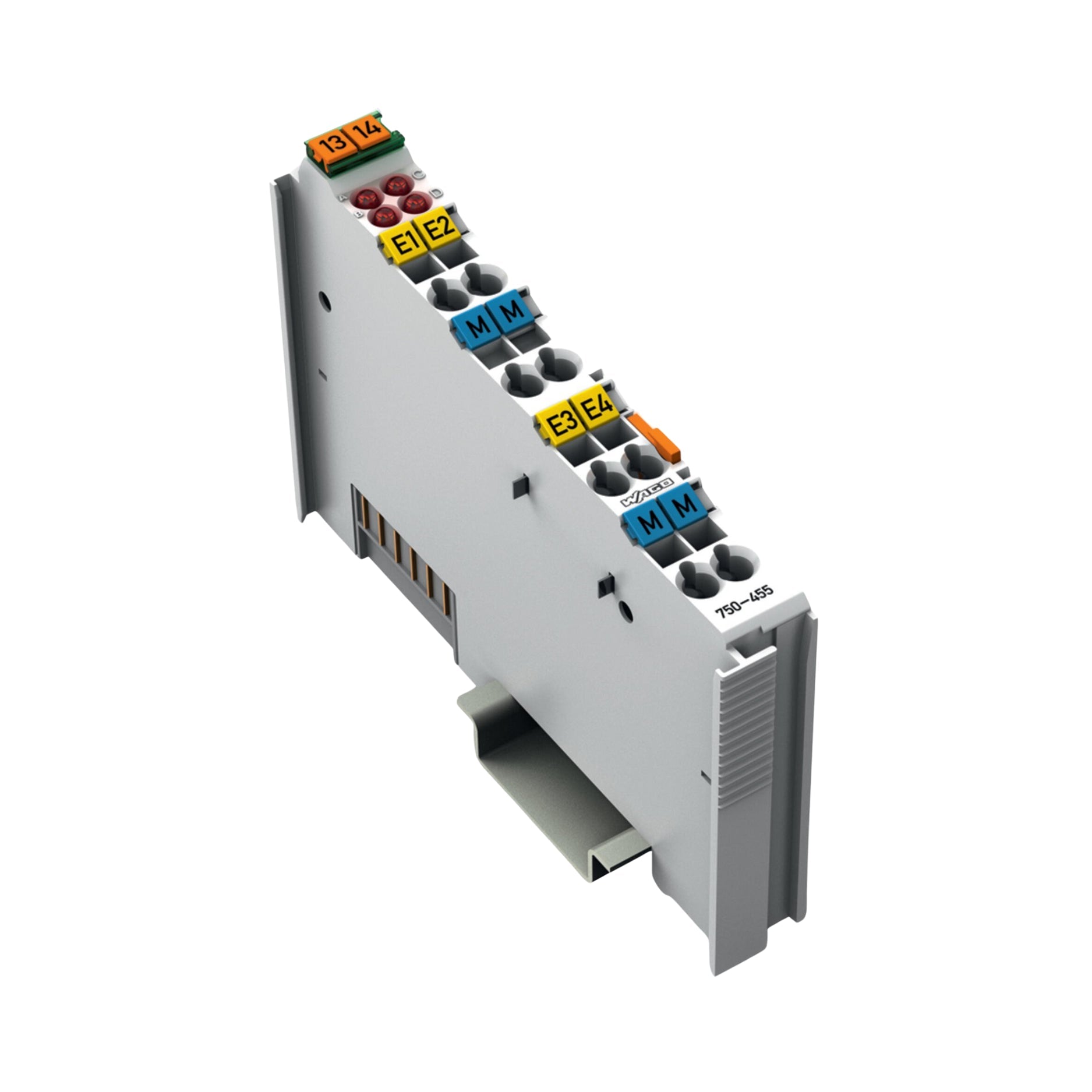

WAGO 750-455 – 4 AI 4-20 mA Single-Ended

Overview

The WAGO 750-455 is a 4-channel analog input module designed for measuring current signals in the range of 4-20 mA. It is single-ended, providing a common ground across all input channels. Each input is electrically isolated from the system side, supporting accurate signal transmission with 12-bit resolution. The module is compact, holds IP20 protection, and is intended for integration in the WAGO I/O System 750 series.

Key Features

• 4 analog input channels (4-20 mA)

• Single-ended signal characteristic with common ground

• 12-bit resolution per channel

• Fast conversion time: approx. 10 ms

• LED indicators for error detection (overrange, underrange, open wire)

• Input resistance ≤ 100 Ω at 20 mA

• Galvanic isolation between field and system sides (500 V)

• Slim 12 mm module width

Technical Specifications

Part Number: 750-455
Number of Analog Inputs: 4
Signal Type: DC 4-20 mA
Signal Characteristic: Single-Ended (common ground)
Input Resistance (max): 100 Ω at 20 mA
Resolution: 12 bits
Conversion Time (typical): 10 ms
Measurement Error at 25 °C: ±0.1 % of full scale
Temperature Coefficient: < ±0.01 % / K
System Supply Voltage: 5 VDC via data contacts
Internal Current Consumption: approx. 65 mA
Field Supply Voltage: 24 VDC (via power jumper contacts)
Isolation Voltage: 500 V (System vs. Field)
Connection Technology: CAGE CLAMP® for both solid and fine-stranded conductors
Wire Size Solid / Stranded: 0.08 … 2.5 mm² (AWG 28 … 14)
Strip Length: 8 … 9 mm
Width: approx. 12 mm
Height: approx. 100 mm
Depth: approx. 69.8 mm
Operating Temperature: 0 °C … +55 °C
Storage Temperature: -40 °C … +85 °C
Protection Rating: IP20

Applications

• Connection of 4-20 mA field sensors (pressure, temperature, flow, etc.)

• Data acquisition in process control systems

• Signal conditioning where common reference ground is used

• Modular I/O expansion in machines or factory automation panels

Why Choose the WAGO 750-455

• Accurate analog signal capture with high resolution

• Error detection on each channel ensures reliability and safety

• Compact design saves cabinet space

• Strong isolation ensures safety and reduces interference

• Flexible wiring with rugged CAGE CLAMP® terminals

Order Now

The WAGO 750-455 is part of the WAGO I/O System 750 product line and is available for purchase. Ships worldwide.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
