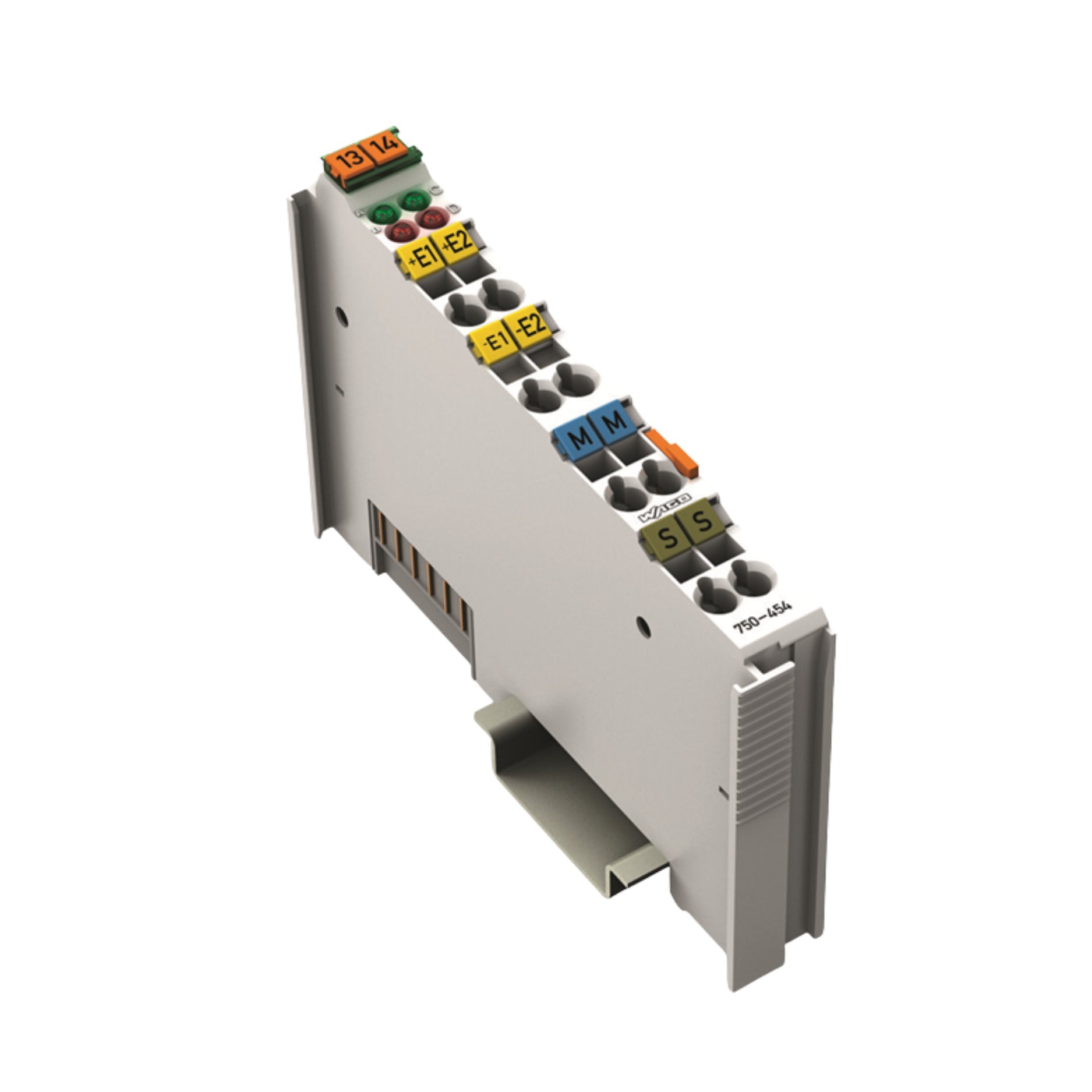

WAGO 750-454 – 2 AI 4-20 mA Differential

Overview

The WAGO 750-454 is a 2-channel analog input module designed for measuring 4-20 mA signals in a differential configuration. Differential inputs help reduce common-mode noise and improve accuracy when signals come from sensors over longer distances. This module is ideal for precise measurement tasks in industrial automation needing robust signal integrity.

Key Features

• 2 analog input channels, differential 4-20 mA

• 12-bit resolution for each channel

• High common-mode rejection for greater accuracy

• LED indication for status/diagnostic feedback

• Isolation between field side and system side

• Uses CAGE-CLAMP® terminals for reliable wire connections

• Slim form factor to save space in I/O panels

• IP20 protection for safe installation

Technical Specifications

Part Number: 750-454
Number of Analog Inputs: 2 (differential)
Signal Type: 4-20 mA current input
Resolution: 12 bits
Measurement Error: ±0.1 % full scale typical
Input Load Resistance: ≤ 100 Ω at 20 mA
Signal Conversion Time: approx. 10 ms
System Supply Voltage: 5 VDC via data contacts
Internal Current Consumption: approx. 65 mA
Field Supply Voltage: 24 VDC via power jumper contacts
Isolation Voltage (Field vs System): 500 V
Connection Type: Differential input wiring
Conductor Size Solid / Stranded: 0.08 … 2.5 mm² (AWG 28 … 14)
Wire Strip Length: 8 … 9 mm
Width: approx. 12 mm
Height: approx. 100 mm
Depth: approx. 69.8 mm
Operating Temperature: 0 °C … +55 °C
Storage Temperature: -40 °C … +85 °C
Protection Rating: IP20

Applications

• Sensor signal capture for flow, pressure, level, temperature devices providing 4-20 mA output

• Differential measurement setups where signal lines are long or prone to interference

• Process control systems needing high accuracy and noise immunity

• Industrial machines with modular I/O requiring clean analog inputs

Why Choose the WAGO 750-454

• Differential inputs provide better noise rejection and stable readings

• Adequate resolution and conversion speed for many process control tasks

• Compact module design to maximize panel layout efficiency

• Strong isolation ensures safety and signal integrity

• Reliable connection technology with visual feedback

Order Now

The WAGO 750-454 is part of the WAGO I/O System 750 product line and is available for purchase. Ships worldwide.
