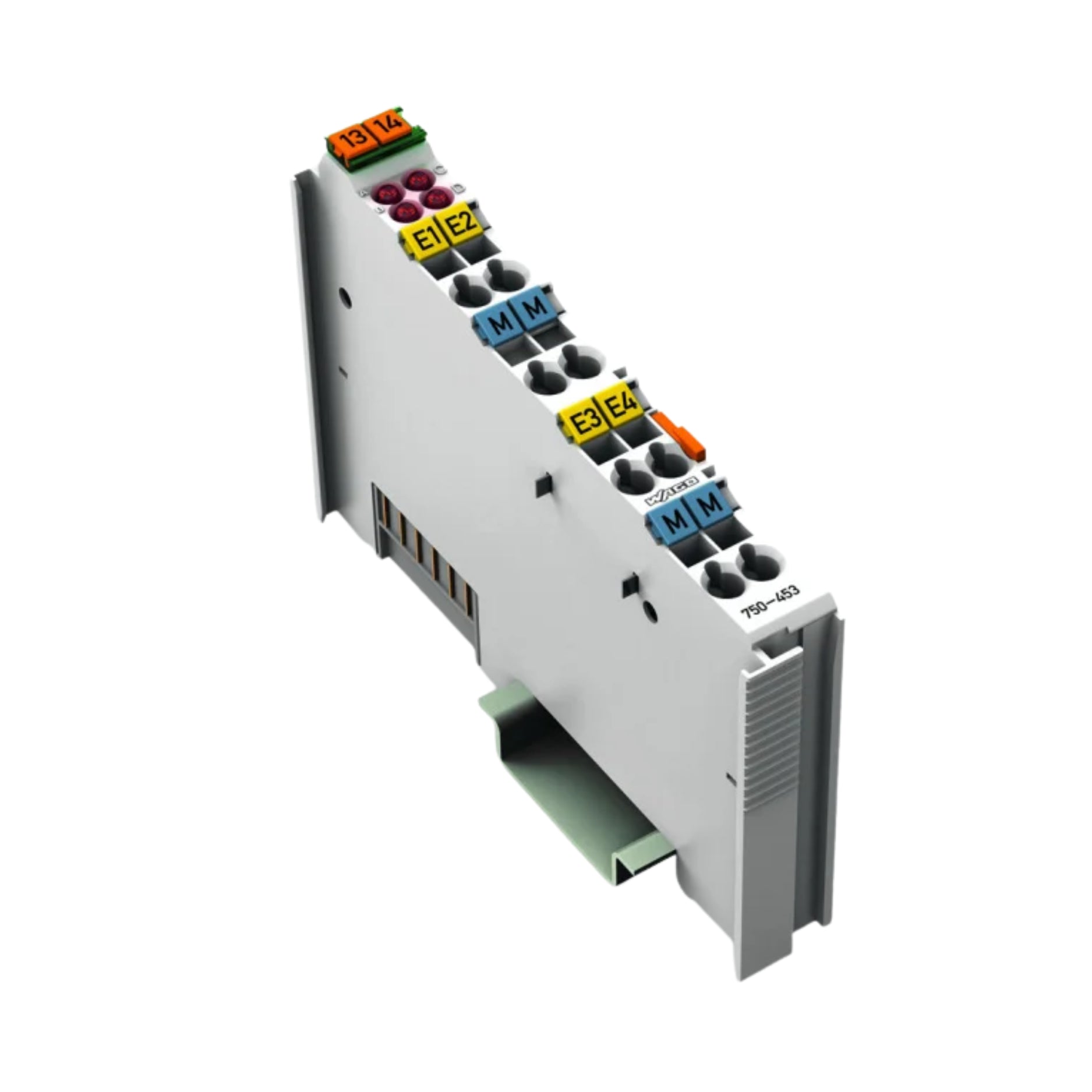

WAGO 750-453 – 4 AI 0-20 mA Single-Ended

Overview

The WAGO 750-453 module is a 4-channel analog input for single-ended 0-20 mA signals. All channels share a common ground. It converts the input signals with 12-bit resolution; the module is powered from the system supply side. LED error indication signals overrange. It is designed for reliable measurement in standard industrial automation environments.

Key Features

• Four analog input channels (0-20 mA)

• Single-ended configuration with shared ground for all inputs

• 12-bit resolution per channel

• Typical conversion time ~10 ms

• Input resistance ≤ 100 Ω at 20 mA

• Over-range detection with LED per channel

• Electrically isolated field and system sides (500 V)

• Uses CAGE-CLAMP® connection technology

• Slim width (~12 mm) module housing

Technical Specifications

Part Number: 750-453
Number of Analog Inputs: 4 (single-ended)
Signal Range: 0 … 20 mA
Maximum Input Voltage: Up to 32 VDC
Input Resistance (max): 100 Ω at 20 mA
Resolution: 12 bits
Conversion Time (typical): 10 ms
Measurement Error at 25 °C: ±0.1 % of full scale value
Temperature Coefficient: ±0.01 % / K of full scale value
System Supply Voltage: 5 VDC via data contacts
Field Supply Voltage: 24 VDC via power jumper contacts
Isolation Voltage (System vs Field): 500 V
Number of Incoming Power Jumper Contacts: 2
Number of Outgoing Power Jumper Contacts: 2
Power Jumper Current Capacity: 10 A
Connection Type: 8 × CAGE-CLAMP® for inputs/outputs
Solid / Stranded Conductor Size: 0.08 … 2.5 mm² (AWG 28 … 14)
Wire Strip Length: 8 … 9 mm
Width: approx. 12 mm
Height: approx. 100 mm
Depth: approx. 69.8 mm
Depth from Upper Edge of DIN Rail (top): approx. 62.6 mm
Operating Temperature: 0 °C … +55 °C
Storage Temperature: -40 °C … +85 °C
Environmental Protection: IP20
Pollution Degree: 2

Applications

• Reading 0-20 mA signals from sensors (e.g. industrial transducers, transmitters)

• Applications where over-range detection and clear status LED feedback are helpful

• Modular I/O panels in process automation and control systems

• Systems that require good isolation between field wiring and system electronics

Why Choose the WAGO 750-453

• Accurate and stable analog input with good resolution

• Over-range detection per channel helps with diagnostics and safety

• Compact module size conserves panel space

• Reliable connection technology and strong isolation

Order Now

The WAGO 750-453 is part of the WAGO I/O System 750 product line and is available for purchase. Ships worldwide.
