WAGO 750-450

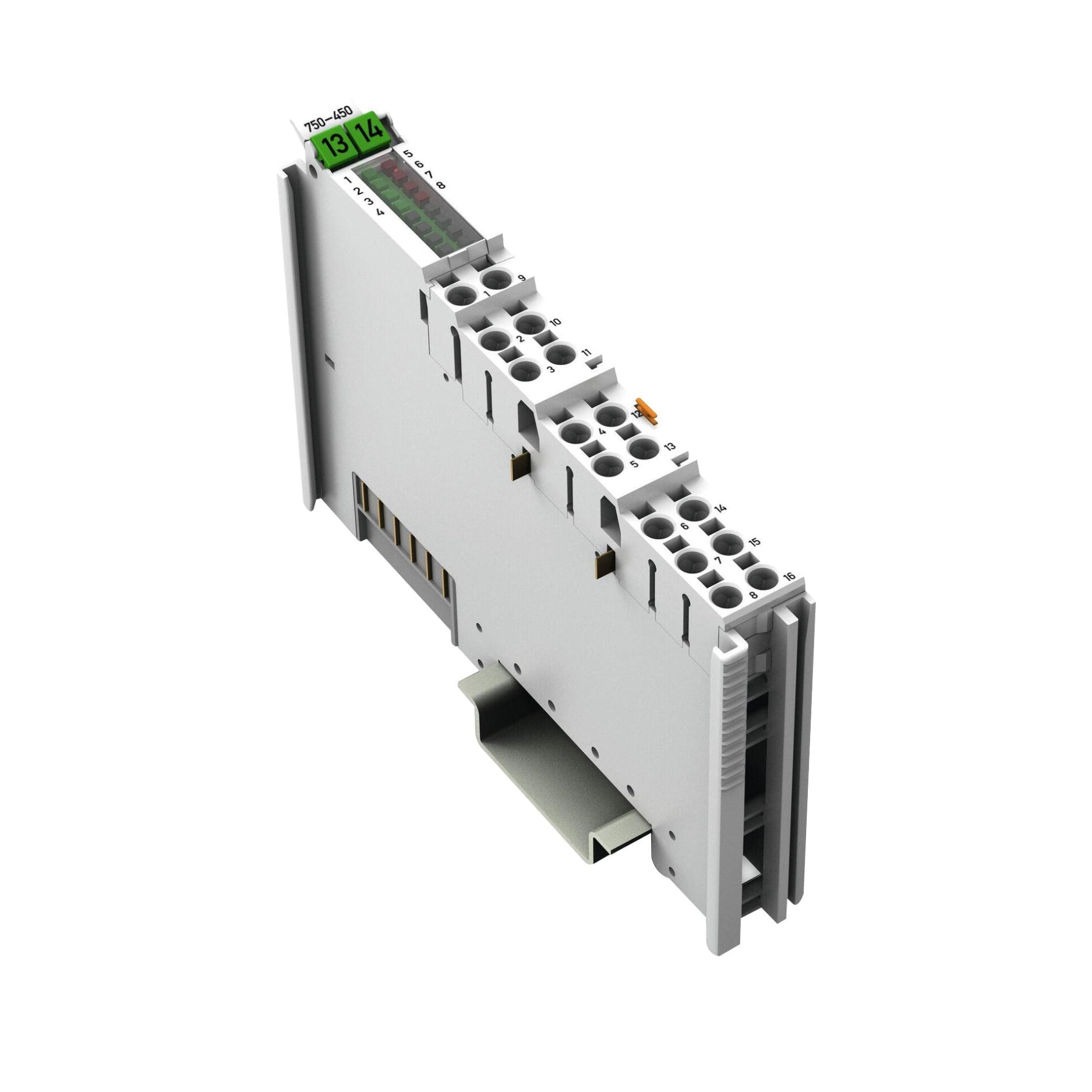

WAGO 750-450 – 4 AI Resistance / RTD / Potentiometer

Overview

The WAGO 750-450 module accepts resistance measurements from RTD (Pt or Ni) sensors and potentiometers, with support for 2-, 3-, or 4-wire configurations. It automatically linearizes over its measurement range and includes LED indicators for sensor errors such as wire break, short circuit, or out-of-range. Unused channels can be deactivated. It is built for precise resistance/temperature sensing in modular I/O systems.

Key Features

• Four analog input channels for resistance / RTD / potentiometer sensors

• Supports Pt100, Pt200, Pt500, Pt1000; Ni100, Ni120, Ni1000 sensors; and potentiometers up to specified resistances

• 2-, 3-, and 4-wire configurations depending on sensor type

• Automatic linearization of the full temperature range

• LED diagnostics for channel error conditions (short circuit, wire break, range overflow)

• Configurable signal types per channel (sensor selection, wiring configuration)

• Unused input channels can be disabled to save resources

• Strong measurement performance with good resolution and error margins

Technical Specifications

Part Number: 750-450
Number of Analog Inputs: 4
Signal Type: Resistance / RTD / Potentiometer
Supported Sensors: Pt100, Pt200, Pt500, Pt1000; Ni100, Ni120, Ni1000; potentiometer types (0-1.2 kΩ, 0-5 kΩ)
Wire Connection: 2-wire, 3-wire, or 4-wire depending on sensor type
Resolution (Full Range): 0.1 °C; finer 0.01 °C for Pt1000 & Ni1000 in limited ranges
Conversion Time per Channel: ≤ 100 ms (2- or 4-wire); ≤ 200 ms (3-wire)
Measuring Error at 25 °C: ±0.6 K for Pt100, Pt200, Pt500, Ni100, Ni120; ±0.2 K for Pt1000, Ni1000
Measuring Current (typical): ≤ 350 µA
Temperature Ranges: −200 … +850 °C (Pt types); −60 … +250 °C (Ni types); −80 … +260 °C (Ni120)
System Supply Voltage: 5 VDC via data contacts
Current Consumption (5 V system supply): approx. 85 mA
Field / Sensor Supply Voltage: 24 VDC via power jumper contacts
Isolation Voltage (System vs Field): 500 V
Number of Power Jumper Contacts In / Out: 2 incoming, 2 outgoing
Connection Technology: Push-in CAGE-CLAMP® for input wiring
Conductor Size (Solid / Stranded): 0.08 … 1.5 mm² solid; 0.25 … 1.5 mm² stranded
Wire Strip Length: 8 … 9 mm
Width: ~12 mm
Height: ~100 mm
Depth: ~69.8 mm
Height from Top Edge of DIN Rail: ~61.8 mm
Operating Temperature: 0 °C … +55 °C
Storage Temperature: −40 °C … +85 °C
Protection Rating: IP20
Pollution Degree: 2
Vibration Resistance: 4 g
Shock Resistance: 15 g

Applications

• Temperature measurement using Pt or Ni RTD sensors, or potentiometer feedback

• Calibration, heating/cooling control, environmental control, process monitoring

• Systems where accurate temperature/resistance measurement is needed with diagnostics

• Modular I/O installations in industrial cabinets

Why Choose the WAGO 750-450

• Versatile support for multiple sensor types and wiring styles (2/3/4-wire)

• Good accuracy and stable performance over wide temperature ranges

• Error detection per channel helps with maintenance and reliability

• Compact module size conserving panel space

• Solid isolation and reliable connection technology for industrial use

Order Now

The WAGO 750-450 is part of the WAGO I/O System 750 product line and is available for purchase. Ships worldwide.
