WAGO 750-430

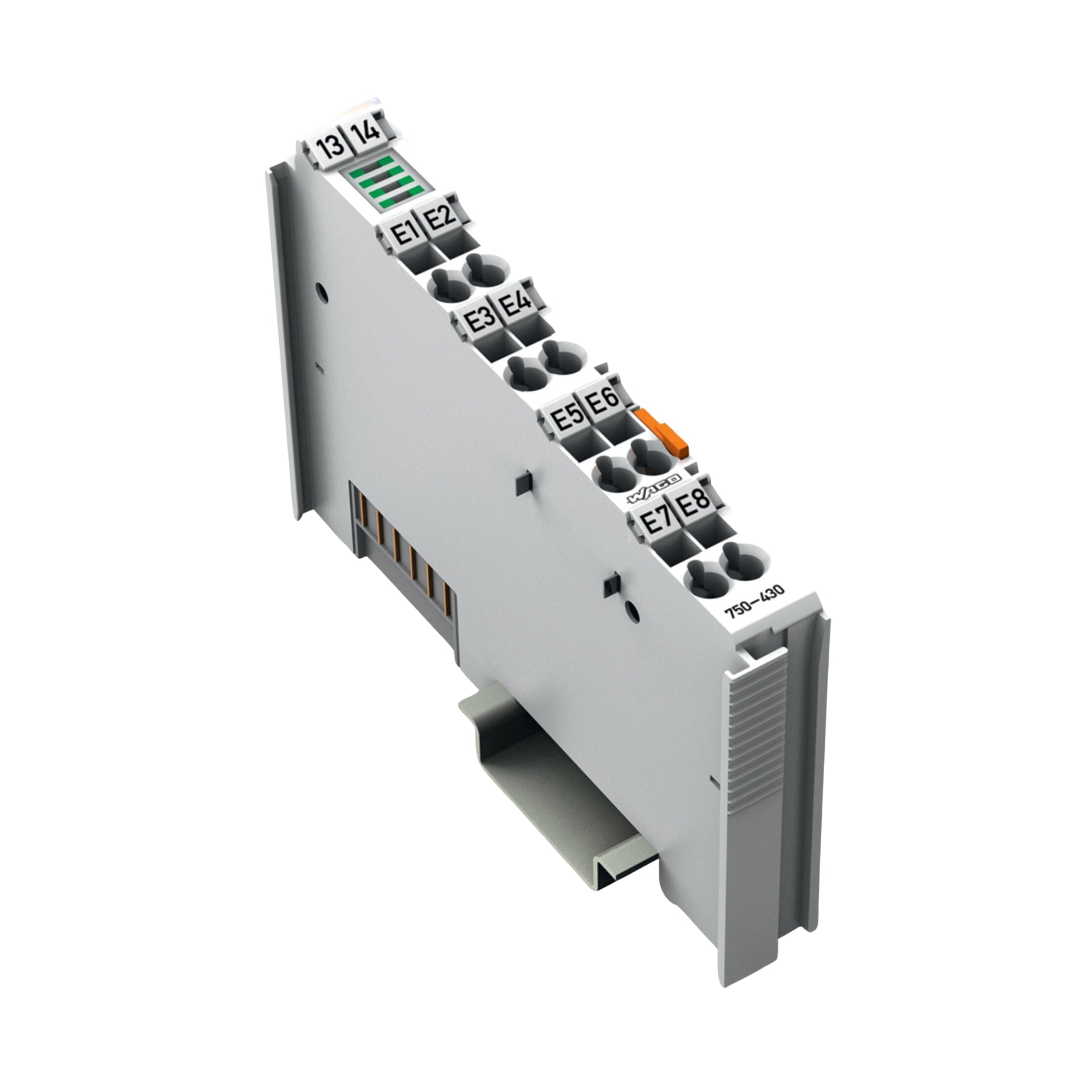

WAGO 750-430 – 8DI 24 V DC, 3 ms

Overview

The WAGO 750-430 is an 8-channel digital input module in the WAGO I/O System 750 series. It accepts 24 VDC input signals and features a 3 ms noise-rejection filter, high-side switching, and LED status indicators for each input. The module is IP20 rated, mounts on DIN-35 rails, and provides galvanic isolation between system and field sides, making it a robust choice for industrial sensor interfacing.

Key Features

• 8 digital input channels

• 24 VDC field signal voltage (with high and low detection thresholds)

• High-side switching inputs

• 3 ms input filter for noise suppression

• LED indicators for each channel status

• Push-in / CAGE CLAMP® connection technology

• 500 V isolation between field and system supply

• Slim 12 mm module width

Technical Specifications

Part Number: 750-430
Number of Digital Inputs: 8
Signal Voltage (Field): 24 VDC (−25 % … +30 %)
Signal Voltage Range for “Low” (0): −3 V … +5 VDC
Signal Voltage Range for “High” (1): 15 V … +30 VDC
Input Filter Time: 3 ms
Input Current per Channel (High): ~2.8 mA
System Supply Voltage: 5 VDC (via data contacts)
Current Consumption (System): ~17 mA
Isolation (Field/System): 500 V
Connection Type: 1-wire high-side inputs
Wire Capacity Solid / Stranded: 0.08 … 2.5 mm² (AWG 28 … 14)
Strip Length: 8 … 9 mm
Width: ~12 mm
Height: ~100 mm
Depth: ~67.8 mm
Operating Temperature: 0 °C … +55 °C
Protection Type: IP20

Applications

• Interfacing with 24 V sensors, switches, proximity detectors in industrial environments

• Building modular automation systems using the WAGO 750 I/O platform

• Use cases where sensor signals need stable, filtered input (e.g. conveyors, packaging, material handling)

• Environments requiring clear indication of input status for diagnostics

Why Choose the WAGO 750-430

• Reliable signal acquisition with built-in noise filtering

• High-side switching simplifies wiring for many standard sensors

• Compact design saves panel space

• Clear LED feedback helps diagnose issues quickly

• Strong electrical isolation enhances safety and reduces interference

Order Now

The WAGO 750-430 is part of the WAGO I/O System 750 product line and is available for purchase. Ships worldwide.
