WAGO 750-403 – 4 DI 24 VDC, 0.2 ms High-Side Switching

Overview

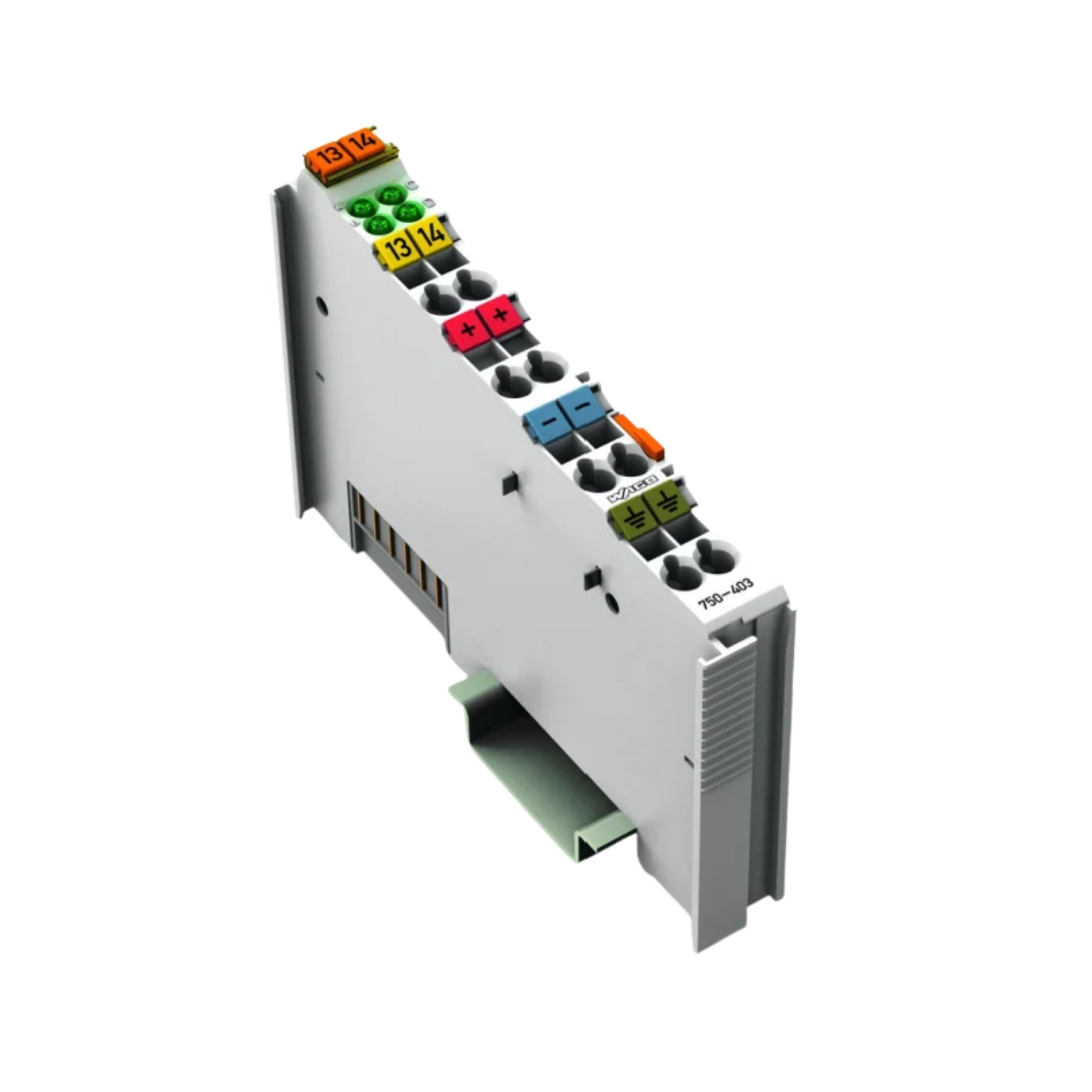

The WAGO 750-403 module is a 4-channel digital input module in the WAGO I/O System 750/753 series. It accepts 24 VDC inputs via high-side switching with a fast 0.2 ms input filter for clean signal detection. Each channel includes status indication with LEDs. The module is electrically isolated between system and field sides and is designed for compact mounting on DIN rails.

Key Features

• Four digital input channels, 24 VDC

• High-side switching characteristic (active when input sees 24 V)

• Very fast input filter of 0.2 ms to reject brief glitches

• LED indicators for each input channel (status)

• Electrically isolated system vs field sides (500 V)

• Slim width (~12 mm) for dense panel layout

• Standard connection via CAGE-CLAMP® terminals

Technical Specifications

Part Number: 750-403
Number of Digital Inputs: 4
Nominal Field Voltage: 24 VDC (−25 % … +30 %)
Signal Range for Low (“0”): −3 V … +5 VDC
Signal Range for High (“1”): 15 V … 30 VDC
Input Filter Time: 0.2 ms
Typical Input Current per Active Channel: ~4.5 mA
Internal Current Consumption (5 V System Side): ~7.5 mA
Isolation Voltage (System vs Field): 500 V
Internal Data Width: 4 bits
Wire Connection: CAGE-CLAMP®
Conductor Size (Solid / Stranded): 0.08 … 2.5 mm² (AWG 28 … 14)
Wire Strip Length: 8 … 9 mm
Width: ~12 mm
Height: ~100 mm
Depth: ~69.8 mm
Depth from Upper Edge of DIN-Rail: ~62.6 mm
Operating Temperature: 0 °C … +55 °C
Storage Temperature: -40 °C … +85 °C
Protection Rating: IP20

Applications

• Fast digital signal reading from 24 V sensors (switches, proximity sensors)

• Environments where signal bounce or short spikes must be filtered out

• Dense I/O configurations where space is limited

• Systems needing reliable LED-based status feedback per channel

Why Choose the WAGO 750-403

• High speed response with very low filter time (0.2 ms) for real-time applications

• Strong capability for clean, reliable input detection in noisy environments

• Flexible wiring with robust connection terminals

• Compact design saves panel space without compromising performance

Order Now

The WAGO 750-403 is part of the WAGO I/O System 750 product line and is available for purchase. Ships worldwide.
