WAGO 750-354

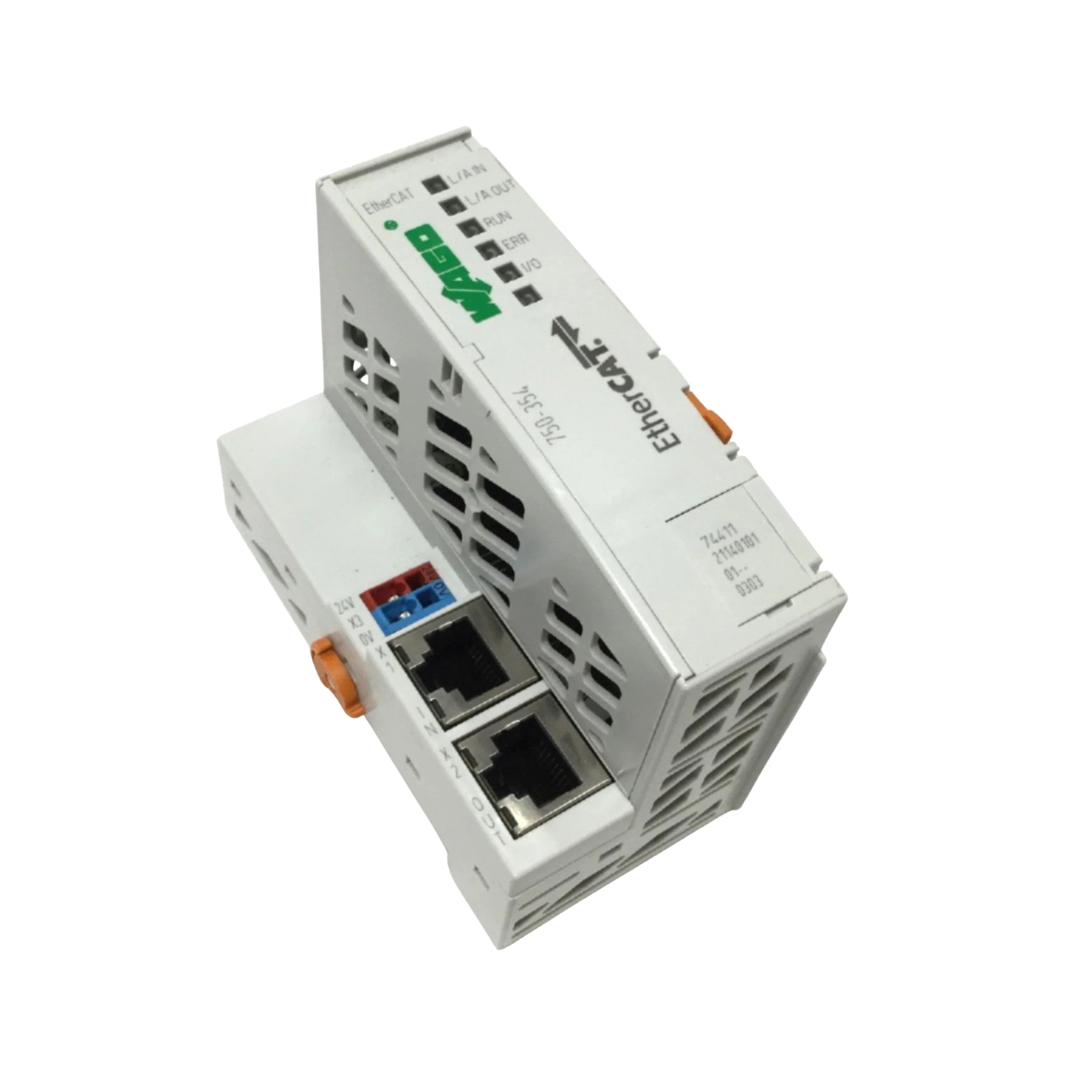

WAGO 750-354 – Fieldbus Coupler EtherCAT

Overview

The WAGO 750-354 connects EtherCAT networks to the WAGO I/O System 750. It automatically detects connected I/O modules and creates a process image for both digital and analog channels. With dual RJ-45 ports, integrated switch, and strong isolation, it provides high-speed communication and flexibility in industrial automation systems.

Key Features

• EtherCAT protocol, 100 Mbit/s

• Supports up to 64 I/O modules per coupler

• Large process image: up to 1024 bytes input / 1024 bytes output

• Dual RJ-45 ports for line and daisy-chain topology

• Compact width with diagnostics LEDs for bus, I/O, and status

• Field and system side isolation up to 500 V

• DIN-rail mounting with CAGE-CLAMP® connections

Technical Specifications

Part Number: 750-354
Communication Protocol: EtherCAT
Ethernet Speed: 100 Mbit/s
Transmission Medium: Shielded twisted pair, 100 Ω, Cat 6 or higher
Max I/O Modules per Node: 64
Process Image (Input / Output): 1024 bytes / 1024 bytes
System Supply Voltage: 24 VDC (-25 % … +30 %)
Current Consumption, System Side: ~300 mA
Total Current for System Supply: ~700 mA
Input Current at 24 V Nominal Load: ~250 mA
Efficiency: ~85 % typical
Isolation Voltage (System vs Field): 500 V
Connections:
 • 2 × RJ-45 for EtherCAT
 • 2 × CAGE-CLAMP® for 24 V system supply
 • 1 × 4-pole service/config connector
Wire Size: 0.08 … 1.5 mm² (AWG 28 … 14)
Wire Strip Length: 5 … 6 mm
Dimensions (W × H × D): 49.5 × 96.8 × 71.9 mm
Depth from Top of DIN-Rail: ~64.7 mm
Operating Temperature: 0 … +55 °C
Storage Temperature: -25 … +85 °C
Protection Rating: IP20
Pollution Degree: 2
Vibration Resistance: 4 g per IEC 60068-2-6
Shock Resistance: 15 g per IEC 60068-2-27

Applications

• Real-time EtherCAT automation systems

• Distributed I/O requiring fast update cycles

• Systems with mixed analog and digital modules

• Installations using daisy-chain Ethernet topology

Why Choose WAGO 750-354

• High-speed EtherCAT communication with large process image capacity

• Dual-port topology simplifies cabling without external switches

• Strong isolation ensures reliable performance in industrial environments

• Compact footprint saves cabinet space

Order Now

The WAGO 750-354 is part of the WAGO I/O System 750 product line and is available for purchase. Ships worldwide.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
