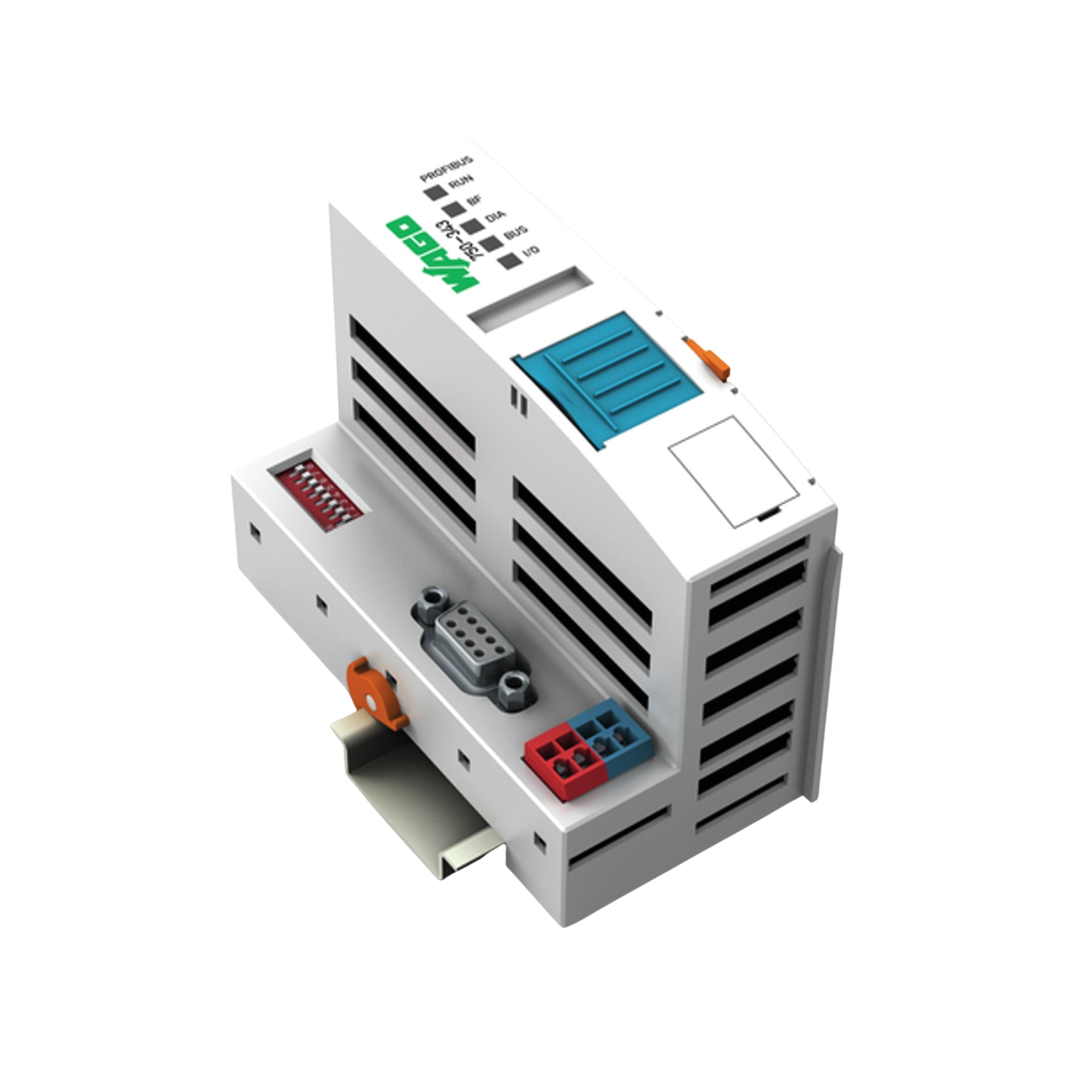

WAGO 750-343 – Fieldbus Coupler PROFIBUS DP ECO

Overview

The WAGO 750-343 is an ECO class PROFIBUS DP fieldbus coupler, designed to connect PROFIBUS DP networks to WAGO’s modular I/O System 750. This coupler automatically detects attached I/O modules and builds the process image. It supports baud rates from 9.6 kBaud up through 12 MBaud. Ideal for mixed analog and digital I/O deployments in industrial automation systems.

Key Features

• PROFIBUS DP communication, 9.6 kBaud up to 12 MBaud

• Automatic recognition of module structure on the internal bus

• Support for up to 63 I/O modules per node

• Handles large I/O point counts (approx. 6000 I/O points with repeaters)

• Uses D-Sub 9-pin connector for the PROFIBUS interface

• Rotary DIP switches for setting node address

• LEDs for status indication: RUN, BF (Bus Fault), BUS, I/O, diagnostics

• System supply via 24 VDC; fieldbus and internal electronics isolated from load side

Technical Specifications

Part Number: 750-343
Communication Protocol: PROFIBUS DP (ECO Coupler)
Supported Baud Rates: 9.6 kBaud … 12 MBaud
Max I/O Modules per Node: 63
Max I/O Points (with repeaters): approx. 6000
Input / Output Process Image (Fieldbus): up to 32 Bytes Input / 32 Bytes Output
Fieldbus Interface Connector: D-Sub 9-pin female
System Supply Voltage: 24 VDC (−25 % … +30 %)
Current Consumption from System Supply (5 V side): ~350 mA
Total System Supply Current (full load): ~650 mA
Input Current at 24 V Field Supply (typical): ~260 mA
Electrical Efficiency (nominal load): ~80 %
Power via System Supply Terminals: 4 × CAGE-CLAMP® system supply contacts
Configuration Interface: 4-pole male connector for device configuration / firmware update
Dimensions: Width ~49.5 mm × Height ~96.8 mm × Depth ~71.9 mm
Operating Temperature: 0 °C … +55 °C
Storage Temperature: -20 °C … +85 °C
Protection Rating: IP20
Mounting: DIN-rail (EN 60715)

Applications

• PROFIBUS DP master/slave networks in industrial automation

• Systems requiring reliable fieldbus coupling for mixed analog and digital I/O modules

• Machine control, process automation, and distributed I/O installations

• Environments where high baud rates and large I/O count (modules) are needed

Why Choose the WAGO 750-343

• Flexible support for a wide range of PROFIBUS baud rates

• Large scalability (up to 63 modules) gives flexibility in system design

• Robust diagnostics and status lighting make fault finding easier

• D-Sub connector for standardized PROFIBUS interface

• Compact form factor with strong performance in industrial settings

Order Now

The WAGO 750-343 is part of the WAGO I/O System 750 product line and is available for purchase. Ships worldwide.
