WAGO 750-1506

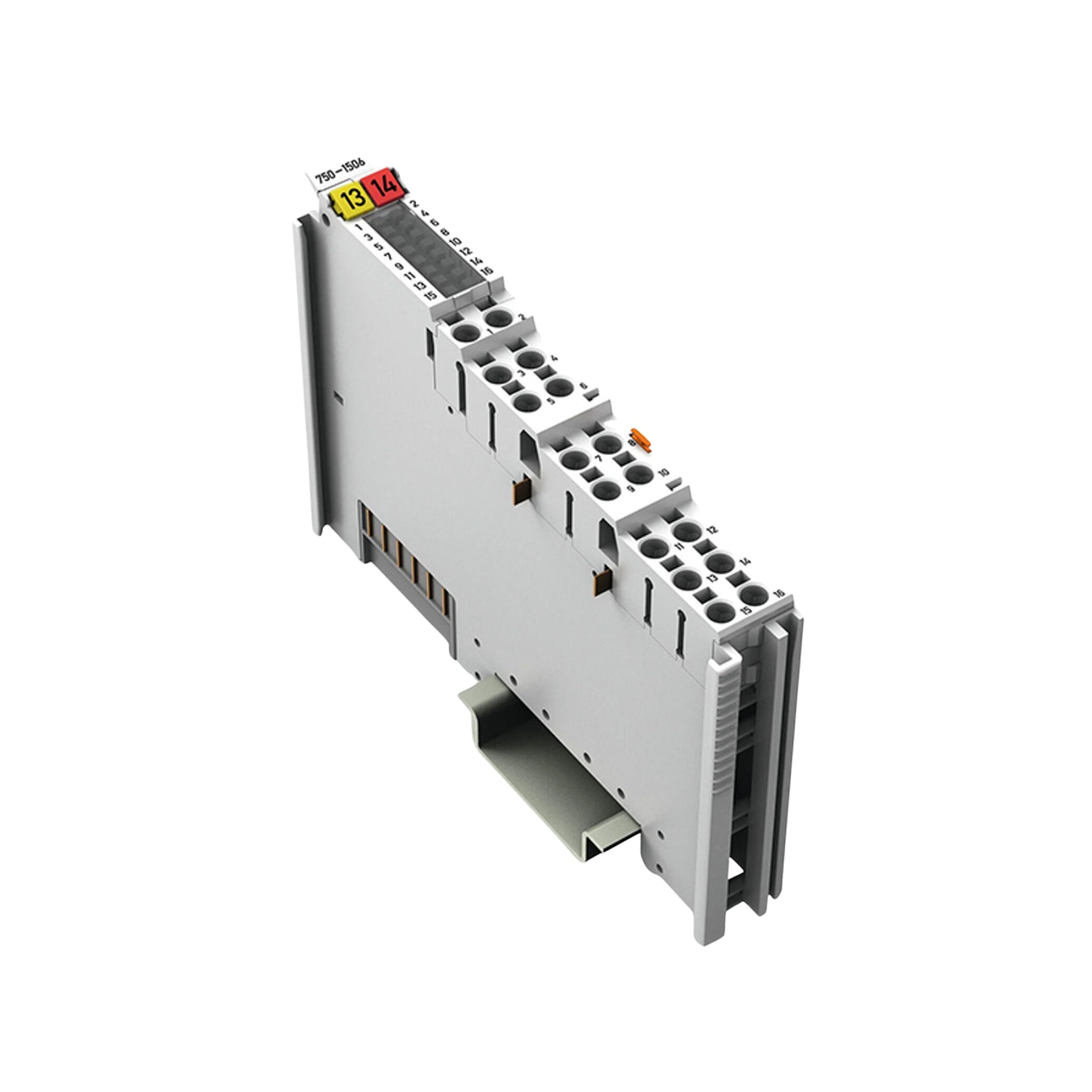

WAGO 750-1506 – 8 Inputs / 8 Outputs Digital I/O Module

Overview

The WAGO 750-1506 is a combined input/output module in the WAGO I/O System 750/753. It provides 8 digital inputs and 8 digital outputs in one slim module. The outputs are rated at 0.5 A per channel. It uses high-side switching, supports a digital input filter, and features LED status indicators for each channel. Field and system circuits are electrically isolated. It uses Push-In / CAGE-CLAMP® terminals.

Key Features

• 8 digital inputs + 8 digital outputs (total 16 channels)

• 24 VDC signal voltage

• High-side switching for inputs and outputs

• Digital input filter of approx. 3 ms

• Output current per channel: 0.5 A, with short-circuit protection

• LED indicators for all inputs and outputs

• Field/system isolation (500 V)

• Push-in / CAGE-CLAMP® connections

• Uses power jumpers for field supply in/out

Technical Specifications

Part Number: 750-1506
Number of Digital Inputs: 8
Number of Digital Outputs: 8
Total Channels: 16
Signal Type (Voltage): 24 VDC
Input Characteristic: High-side switching
Input Filter Time: approx. 3 ms
Input Current, “0” State (typ.): ~ 0.6 mA per channel
Input Current, “1” State (min): ~ 2.2 mA per channel
Input Current, “1” State (max): ~ 2.5 mA per channel
Output Characteristic: High-side switching
Output Current per Output Channel: 0.5 A (short-circuit protected)
Max Switching Frequency: ~ 1 kHz
Permissible Load Types: Resistive, inductive, lamp
Voltage Ranges for Digital Levels:
 • “0”: approx. -3 … +5 VDC
 • “1”: approx. +15 … +30 VDC
System Supply Voltage: 5 VDC (via system bus / data contacts)
System Supply Current: ~ 30 mA
Field Supply Voltage: 24 VDC (-25 … +30 %) via power jumper contacts
Field Supply Current (module, no external load): ~ 16 mA
Isolation Voltage: 500 V (system vs field)
Indicators: Green LED for each DI and DO channel (1-8 for DI, 9-16 for DO)
Power Jumper Contacts: 2 incoming / 2 outgoing
Power Jumper Current Capacity: 10 A

Physical & Environmental Specifications

Width: ~ 12 mm
Height: ~ 100 mm
Depth: ~ 69 mm
Depth from Upper Edge of DIN-Rail: ~ 61.8 mm
Operating Temperature: 0 … +55 °C
Storage Temperature: -40 … +85 °C
Protection Rating: IP20
Pollution Degree: 2 per IEC 61131-2
Vibration Resistance: 4 g
Shock Resistance: 15 g
Humidity (non-condensing): up to 95 %

Applications

• Combined digital input/output tasks from a single module (e.g. controlling actuators while reading sensors)

• Applications needing high output current (0.5 A) per channel

• Industrial automation I/O racks with mixed signals, space constraints

• Systems where LED feedback per channel aids diagnostics

Why Choose the WAGO 750-1506

• Provides both input and output in one compact module, reducing module count

• 0.5 A output capacity lets you drive stronger loads without external relays

• High-side switching simplifies wiring and protects output circuits

• Strong isolation helps reduce noise and improve system reliability

• Slim form factor and Push-In terminals for quick installation
