WAGO 750-1505

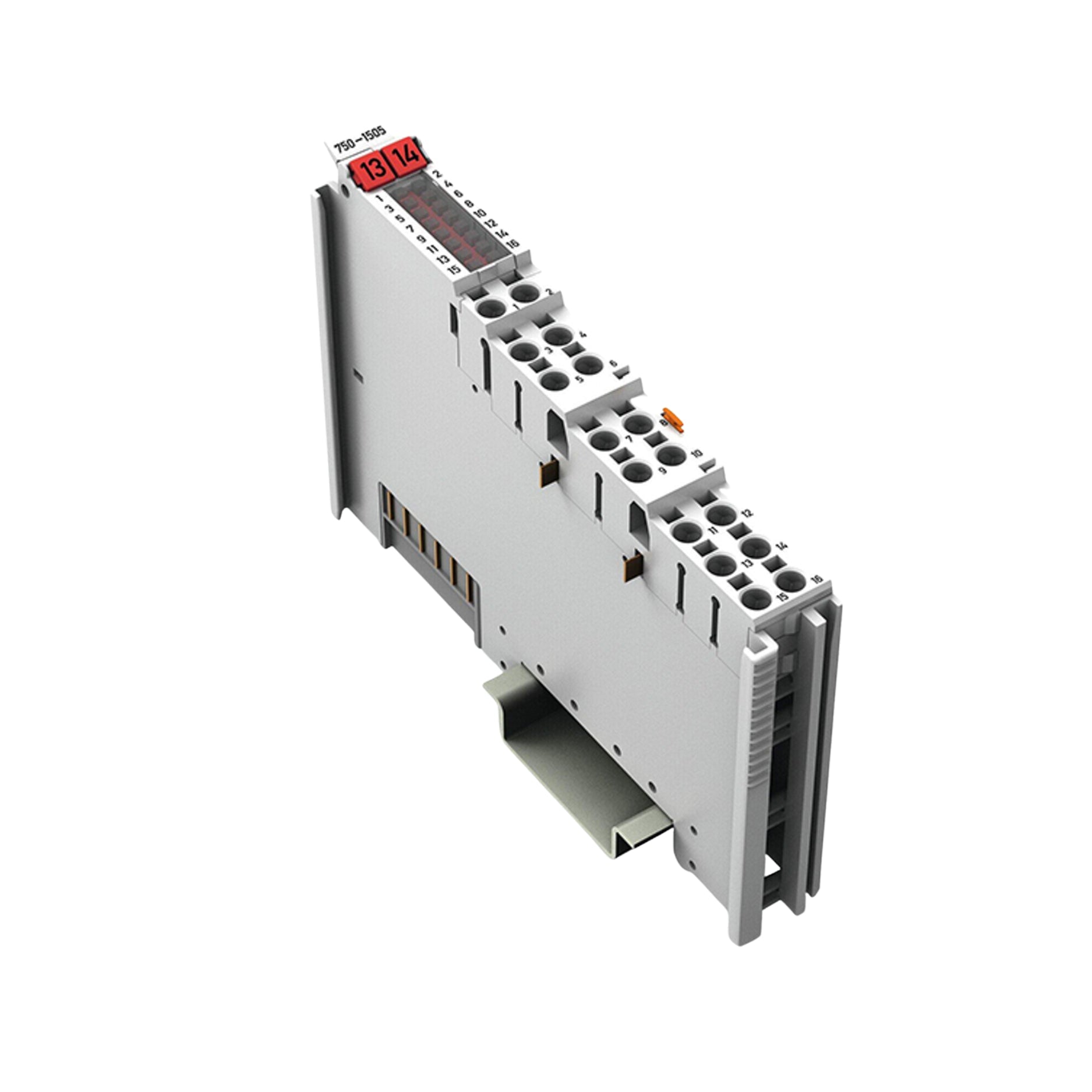

WAGO 750-1505 – 16 Digital Outputs (24 VDC, 0.5 A, Low-Side)

Overview

The WAGO 750-1505 module provides sixteen digital low-side outputs, each rated for 0.5 A at 24 VDC. It is designed for controlling actuators such as valves, relays, or lamps, with short-circuit protection built in. All field and system circuits are electrically isolated. The module is compact (12 mm width) and includes LED indicators for each channel to show output status.

Key Features

• Sixteen digital output channels

• 24 VDC low-side switching

• 0.5 A output per channel

• Short-circuit protection on outputs

• Status LED (green) for each channel

• Field/system electrical isolation (500 V)

• Compact width (approximately 12 mm) for space-efficient integration

• Compatible with resistive, inductive, and lamp loads

• Max switching frequency ~1 kHz

Technical Specifications

Part Number: 750-1505
Number of Digital Outputs: 16
Signal Type: Digital
Signal Voltage: 24 VDC
Output Characteristic: Low-side switching
Output Current per Channel: 0.5 A
Switching Frequency (max): 1 kHz
Load Types: Resistive, inductive, lamp
Output Data Width: 16 bits internal
System Supply Voltage: 5 VDC via data contacts
System Supply Current (no external load): ~40 mA
Field Supply Voltage: 24 VDC (–25 % … +30 %) via power jumper contacts
Field Supply No-Load Current: ~11 mA
Isolation Voltage (System vs Field): 500 V
Indicators: Green LEDs for Output Status, Channels 1 … 16
Number of Incoming Power Jumper Contacts: 2
Number of Outgoing Power Jumper Contacts: 2
Current Capacity of Power Jumpers: 10 A
Connection Technology: Push-in CAGE-CLAMP®
Solid Conductor Size: 0.08 … 1.5 mm² (AWG 28 … 16)
Fine-Stranded Conductor Size: 0.25 … 1.5 mm² (AWG 22 … 16)
Wire Strip Length: 8 … 9 mm
Physical Width: ~12 mm
Height: ~100 mm
Depth: ~69 mm
Depth from Upper Edge of DIN-Rail: ~61.8 mm
Operating Temperature: 0 … +55 °C
Storage Temperature: -40 … +85 °C
Protection Rating: IP20
Pollution Degree: 2

Applications

• Driving loads such as solenoids, valves, indicator lights or relays in automation systems

• Situations where many output channels are needed in a compact module

• Systems requiring low-side switching and electrical isolation for safety and EMC

• Panels or machines where per-channel status indication is desirable

Why Choose the WAGO 750-1505

• High output channel count (16) lets you reduce module count and wiring

• Each channel supports 0.5 A, sufficient for many actuator classes

• Built-in protection (short-circuit) enhances reliability

• Compact and robust design with strong isolation

Order Now

The WAGO 750-1505 is part of the WAGO I/O System 750 product line and is available for purchase. Ships worldwide.
