WAGO 750-1504 – 16DO 24 V DC 0.5 A (High-Side Switching)

Overview

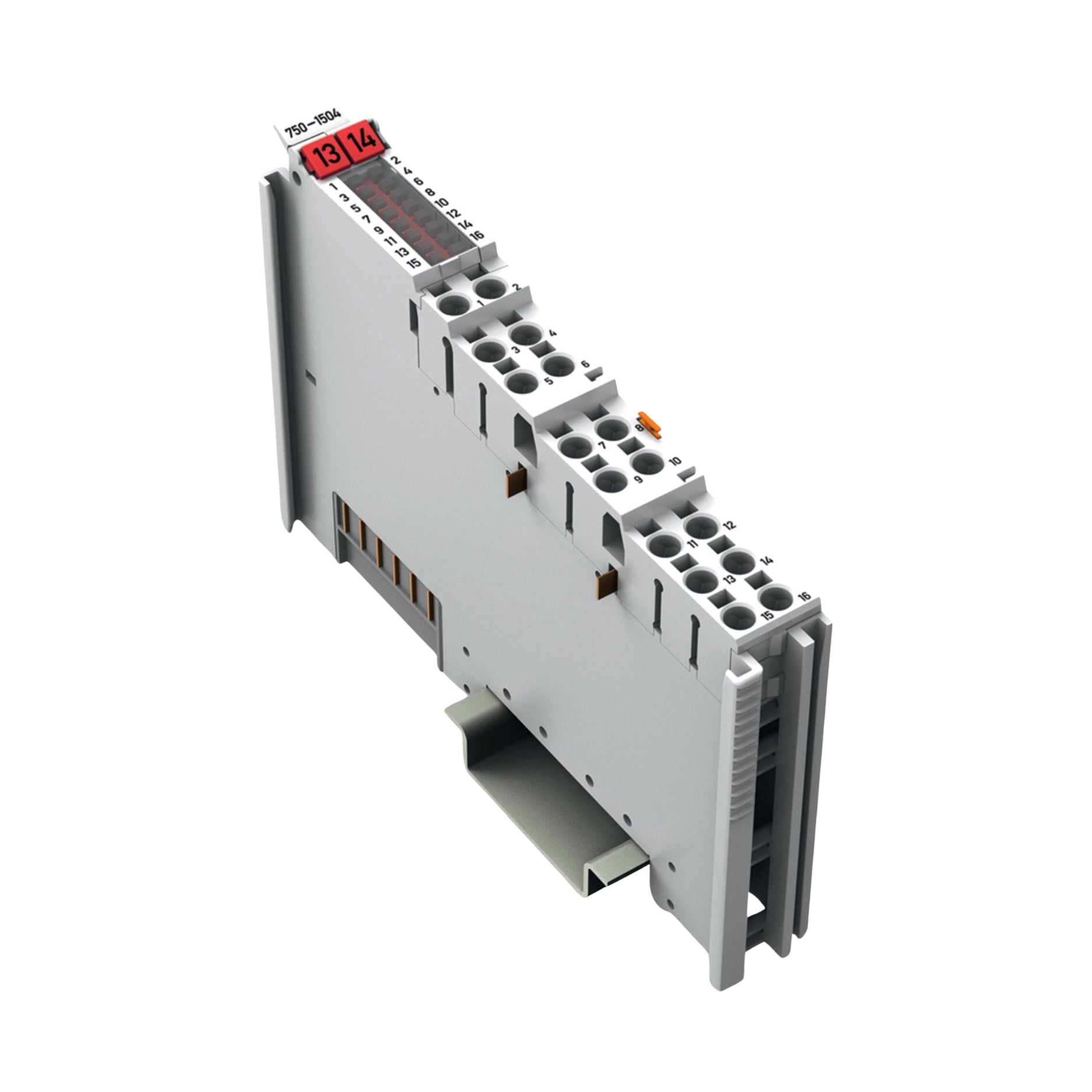

The WAGO 750-1504 is a 16-channel digital output module in the WAGO I/O System 750. It operates at 24 VDC with up to 0.5 A per output channel. Designed for high-side switching, this compact module delivers reliable binary control signals to actuators such as relays, valves, lamps, and contactors. With its slim 12 mm width, it’s space-efficient and well-suited for industrial and process automation setups.

Key Features

• 16 digital output channels, each up to 0.5 A

• High-side switching outputs

• 24 VDC field side supply (−25% … +30%) via power jumper contacts

• Push-in CAGE CLAMP® / Spring contact technology for actuator wiring

• LED indicators for each channel showing output status

• Isolation between system and field side at 500 V

• Compact 12 mm module width

• Switching frequency up to 1 kHz

Technical Specifications

Part Number: 750-1504
Module Type: Digital Output (16 channels)
Output Voltage: 24 VDC field supply (−25% / +30%)
Max Current per Channel: 0.5 A, short-circuit protected
Load Types: Resistive, inductive, lamps
Switching Frequency: up to 1 kHz
Connection Technology: Push-in CAGE CLAMP® / Spring
Conductor Size: 0.08–1.5 mm² solid / 0.25–1.5 mm² fine-stranded
Width: ~12 mm
Height: ~100 mm
System Supply: ~40 mA (5 V via data contacts)
Field Supply (no load): ~29 mA (24 V)
Isolation: 500 V between system and field side
IP Rating: IP20
Operating Temperature: 0 °C to +55 °C
Wire Strip Length: 8–9 mm

Applications

• Actuator control: solenoids, relays, lamps, contactors

• Space-saving modular I/O in automation cabinets

• Integration with WAGO I/O System 750 controllers or fieldbus couplers

• High-frequency switching applications up to 1 kHz

• Systems requiring LED feedback per channel

Why Choose the WAGO 750-1504

• Reliable output module with overload and short-circuit protection

• Compact design saves cabinet space

• Easy wiring with CAGE CLAMP® technology

• LED indicators simplify maintenance and troubleshooting

• Strong isolation ensures safe and noise-resistant operation

Order Now

The WAGO 750-1504 is available and ships worldwide.
