WAGO 750-1415 – 8 DI 24 VDC, 3 ms High-Side Switching

Overview

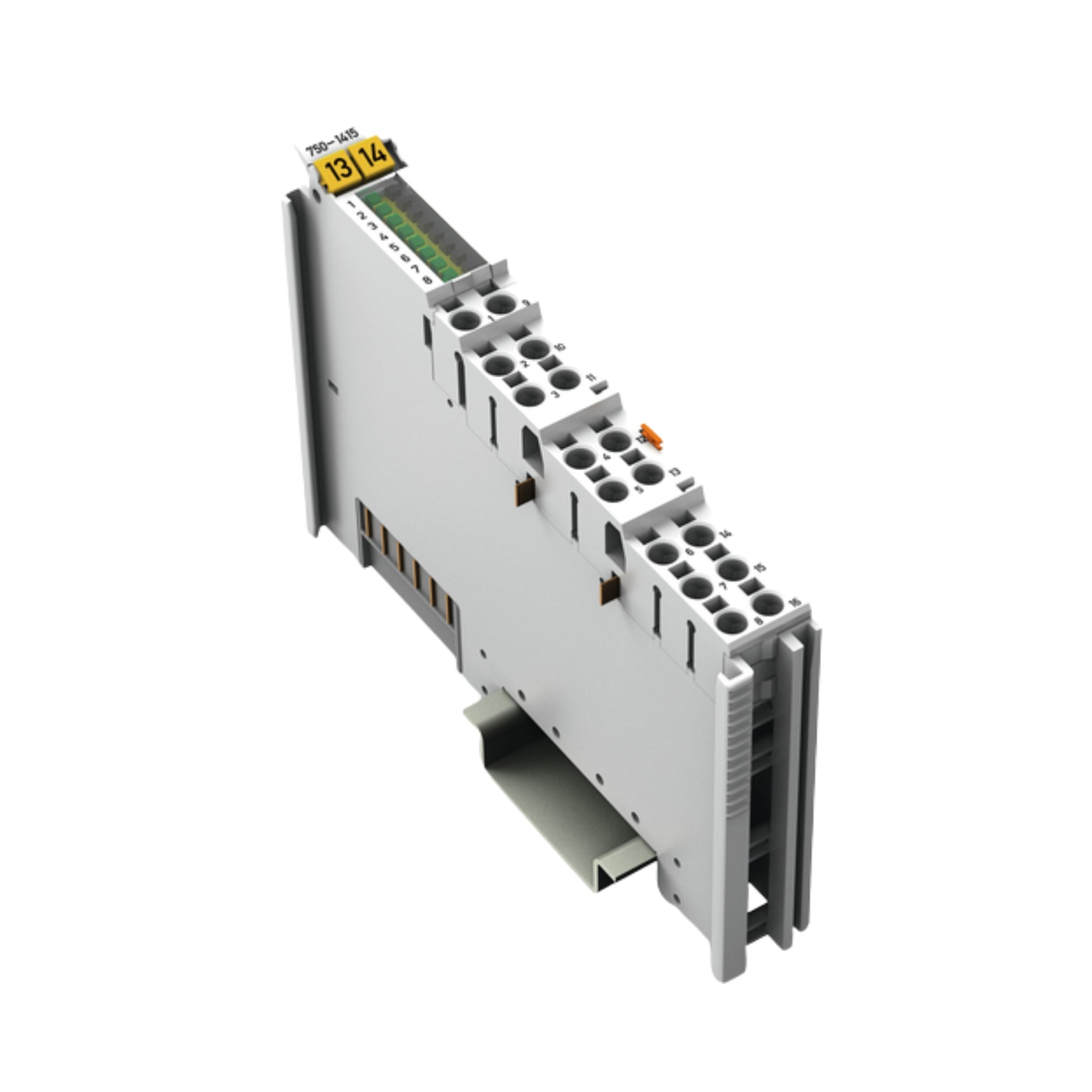

The WAGO 750-1415 is an 8-channel digital input module in the WAGO I/O System 750/753 series. It accepts 24 VDC input signals via a two-conductor high-side connection. Each channel has a 3-ms noise-rejection filter to improve signal reliability. LED indicators provide per-channel status. The module is narrow (≈ 12 mm), provides isolation between field and system sides, and is designed for modular industrial automation I/O setups.

Key Features

• Eight digital input channels

• 24 VDC field voltage, high-side switching

• 3 ms input filter for noise suppression

• LED status indicators for each input channel

• Narrow profile (≈ 12 mm width) to save panel space

• Two-conductor connection per channel

• Electrical isolation between system side and field side

• Reliable connection via CAGE-CLAMP® terminals

Technical Specifications

Part Number: 750-1415
Number of Digital Inputs: 8
Field Supply Voltage: 24 VDC (-25 % … +30 %)
Signal Range “Low” (0): −3 V … +5 VDC
Signal Range “High” (1): +11 V … +30 VDC
Input Filter Time: 3.0 ms
Typical Input Current, Field Side (for “1”): ~4.3 … ~4.6 mA per channel
Typical Input Current, Field Side (for “0”): ~1.6 mA
Internal Current Consumption (module electronics): ~6 mA
Isolation Voltage (System vs Field): 500 V
Wire Connection Type: CAGE-CLAMP® S
Solid Conductor Size: 0.08 … 1.5 mm² (AWG 28 … 16)
Fine-Stranded Conductor Size: 0.25 … 1.5 mm² (AWG 22 … 16)
Stripped Wire Length: 8 … 9 mm
Width: approx. 12 mm
Height: approx. 100 mm
Depth: approx. 69 mm
Operating Temperature: 0 °C … +55 °C
Storage Temperature: -25 °C … +85 °C
Protection Rating: IP20

Applications

• Monitoring 24 V sensors such as switches, proximitors, or similar input devices

• Industrial setups where signal noise is present and needs filtering

• Dense I/O panel installations where space-efficiency is important

• Systems needing reliable per-channel indication via LEDs

Why Choose the WAGO 750-1415

• High channel count in compact form for efficient panel design

• 3 ms filter helps avoid false triggers from signal glitches

• Strong electrical isolation improves overall system safety

• Reliable termination technology and robust construction
