WAGO 750-1406

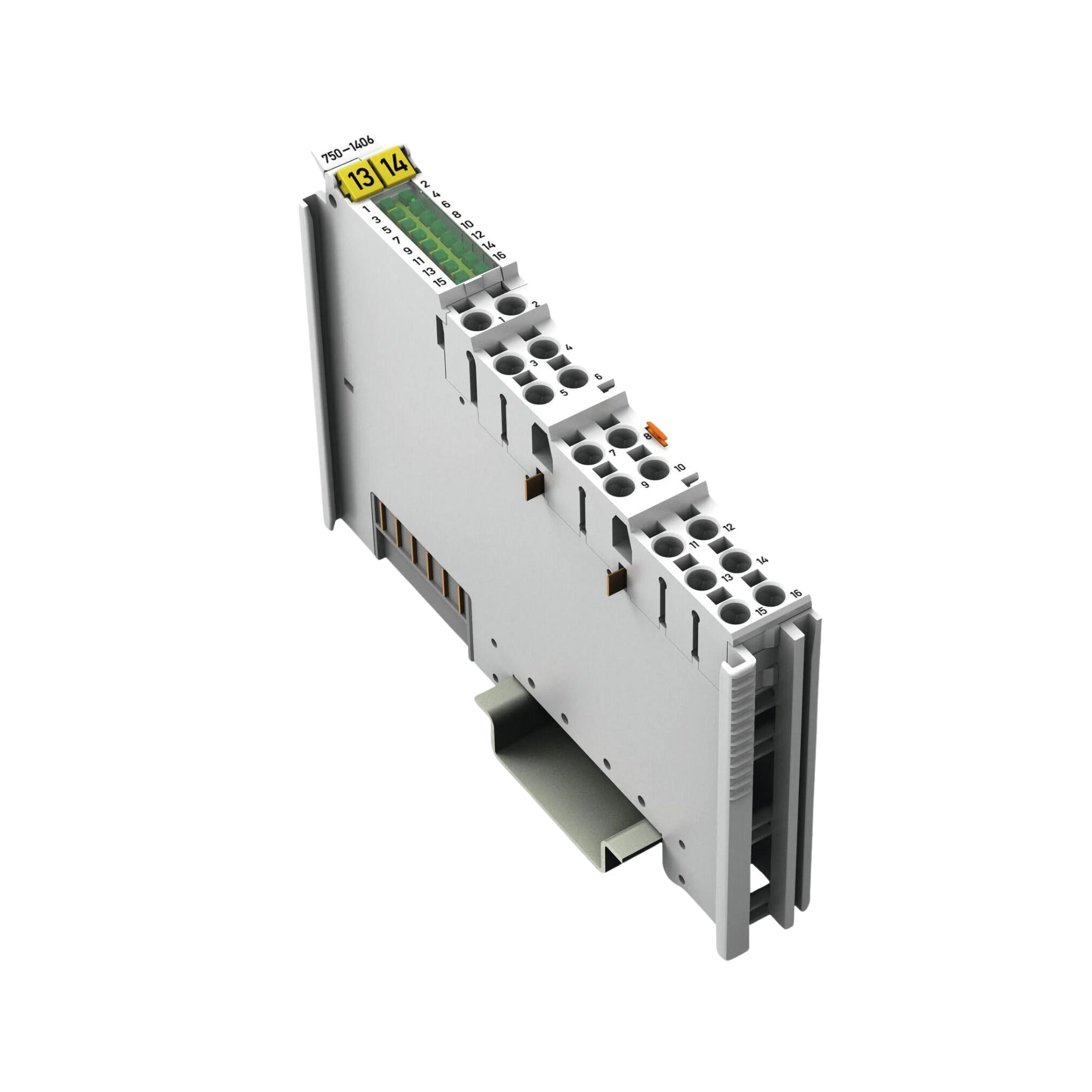

WAGO 750-1406 – 16 DI 24 VDC, High-Side Switching

Overview

The WAGO 750-1406 is a 16-channel digital input module for the WAGO I/O System 750. Each channel operates at 24 VDC with high-side switching, and the module employs a fast 0.2 ms noise-rejection filter. It fits in a slim 12 mm width, has per-channel status LEDs, provides solid reliability, and is electrically isolated between field and system.

Key Features

• 16 digital input channels

• 24 VDC field voltage with high-side switching characteristic

• Very fast input filter (0.2 ms) for clean readings

• LEDs for each channel indicating input status

• Slim form factor: 12 mm width

• Push-in CAGE-CLAMP® terminals for wiring ease and reliability

• Electrical isolation of 500 V between system and field

Technical Specifications

Part Number: 750-1406
Number of Digital Inputs: 16
Field Supply Voltage: 24 VDC (-25 % … +30 %) via power jumper contacts
Signal “0” Voltage Range: −3 V … +5 VDC
Signal “1” Voltage Range: +15 V … +30 VDC
Input Current for “0” (typical): ~0.6 mA
Input Current for “1” (typical): ~2.3 mA
Max Input Current for “1”: ~2.4 mA
Input Filter Time: 0.2 ms
System Supply Voltage: 5 VDC via data contacts
Current Consumption (System Side): ~25 mA
Isolation Voltage (System vs Field): 500 V
Indicators: 16 green LEDs (one per input)
Connection Technology: Push-in CAGE-CLAMP® for each input channel
Solid Conductor Size: 0.08 … 1.5 mm² (AWG 28 … 16)
Fine-Stranded Conductor Size: 0.25 … 1.5 mm² (AWG 22 … 16)
Wire Strip Length: 8 … 9 mm
Width: ~12 mm
Height: ~100 mm
Depth: ~69 mm
Depth from Top Edge of DIN Rail: ~61.8 mm
Operating Temperature: 0 °C … +55 °C
Storage Temperature: −25 °C … +85 °C
Protection Rating: IP20

Applications

• Monitoring multiple 24 V sensors such as switches or proximity detectors

• Systems demanding fast input response (0.2 ms)

• Dense I/O panels where module width must be minimized

• Environments needing status feedback per channel

Why Choose the WAGO 750-1406

• High channel count in a compact form factor

• Excellent signal clarity with high-side switching and short input filter

• Reliable wiring via push-in terminals and strong isolation

• Visual LED feedback aids debugging and maintenance

Order Now

The WAGO 750-1406 is part of the WAGO I/O System 750 product line and is available for purchase. Ships worldwide.
