Allen-Bradley VPL-B1003T-PJ14AA

Allen-Bradley VPL-B1003T-PJ14AA

Overview

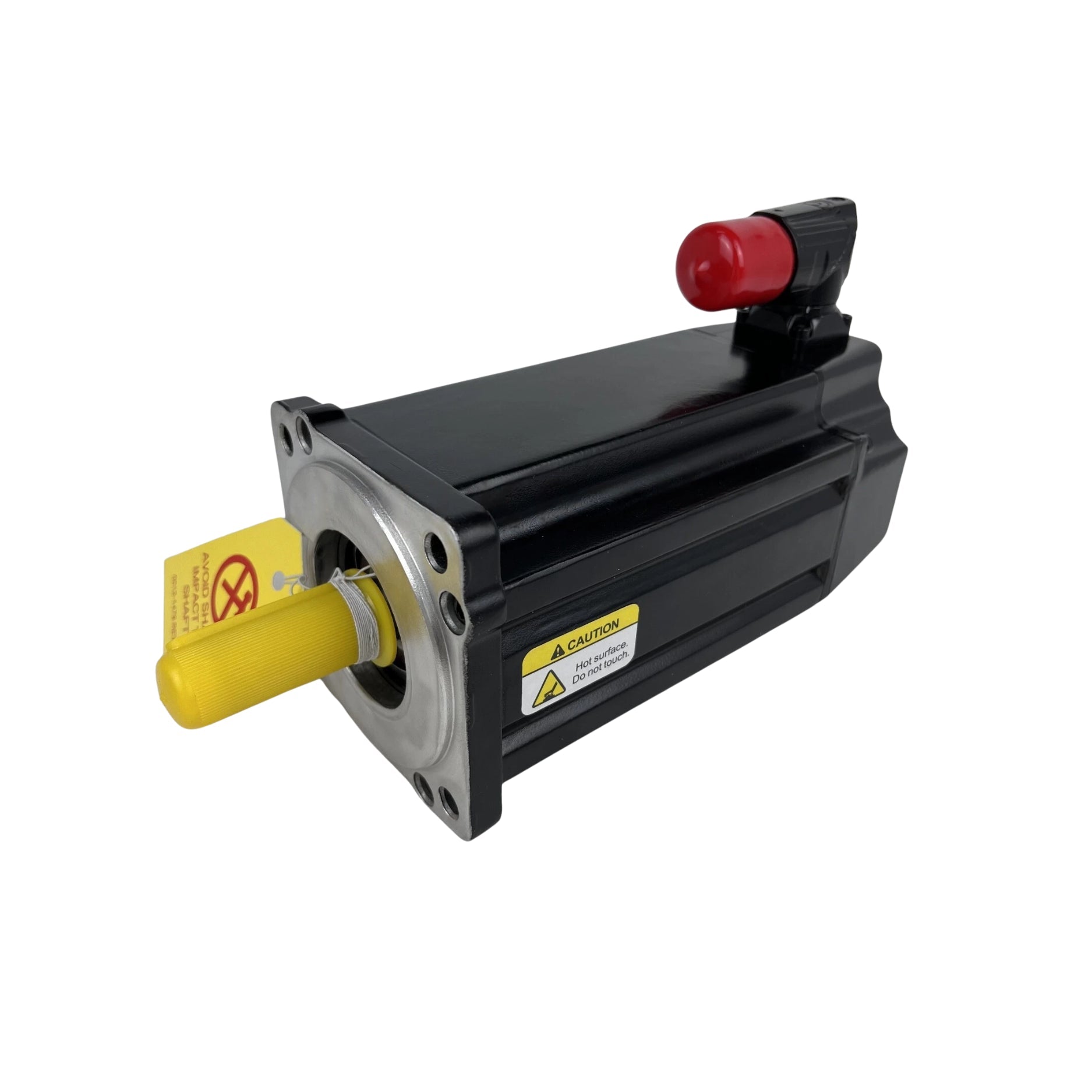

The Allen-Bradley VPL-B1003T-PJ14AA is a high-speed, low-inertia servo motor from the Kinetix VP family, engineered for fast and precise motion control. It features a 100 mm bolt circle frame, three magnet stacks, and T winding, supporting speeds up to 6750 RPM. This model includes an 18-bit single-turn and 12-bit multi-turn high-resolution encoder, a keyed shaft, a SpeedTec right-angle DIN connector, and a 24 V DC holding brake.

Key Features

• Voltage: 480 VAC, 3-phase

• Frame Size: 100 mm bolt circle

• Magnet Stacks: 3

• Winding Type: T

• Rated Speed: 6750 RPM

• Encoder: 18-bit single-turn + 12-bit multi-turn

• Shaft Type: Keyed

• Connector: SpeedTec right-angle DIN

• Holding Brake: 24 V DC

• Mounting: IEC metric flange

• Enclosure: Standard industrial-grade

Technical Specifications

• Catalog Number: VPL-B1003T-PJ14AA

• Rated Voltage: 480 VAC

• Rated Speed: 6750 RPM

• Encoder Type: High-resolution, multi-turn digital

• Shaft: Keyed

• Brake: Included, 24 V DC

• Connector Type: SpeedTec DIN, right-angle

• Mounting Style: IEC metric flange

• Protection Rating: IP50

• Operating Temperature: 0 °C to 40 °C

• Weight: Approx. 6.3 kg

Applications

• High-speed packaging and converting machines

• Robotics and automation with demanding acceleration

• Precision rotary equipment

• OEM machines requiring fast, repeatable motion

• Multi-axis control systems

Why Choose the VPL-B1003T-PJ14AA

• Supports ultra-high speeds up to 6750 RPM

• Low-inertia rotor for rapid acceleration and deceleration

• Multi-turn encoder delivers accurate, absolute position feedback

• Integrated 24 V brake for motion control and safety

• Durable, compact design for demanding environments

Order Now

The Allen-Bradley VPL-B1003T-PJ14AA servo motor is available and ships worldwide.

Looking for more options?

Explore our complete selection of Kinetix VPL Low-Inertia Servo Motors for high-performance, precise motion control solutions.

You can also browse our full range of Allen-Bradley Servo Motors to find the perfect match for your automation needs.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
