Allen-Bradley VPL-B1002E-PK14AA

Allen-Bradley VPL-B1002E-PK14AA

Overview

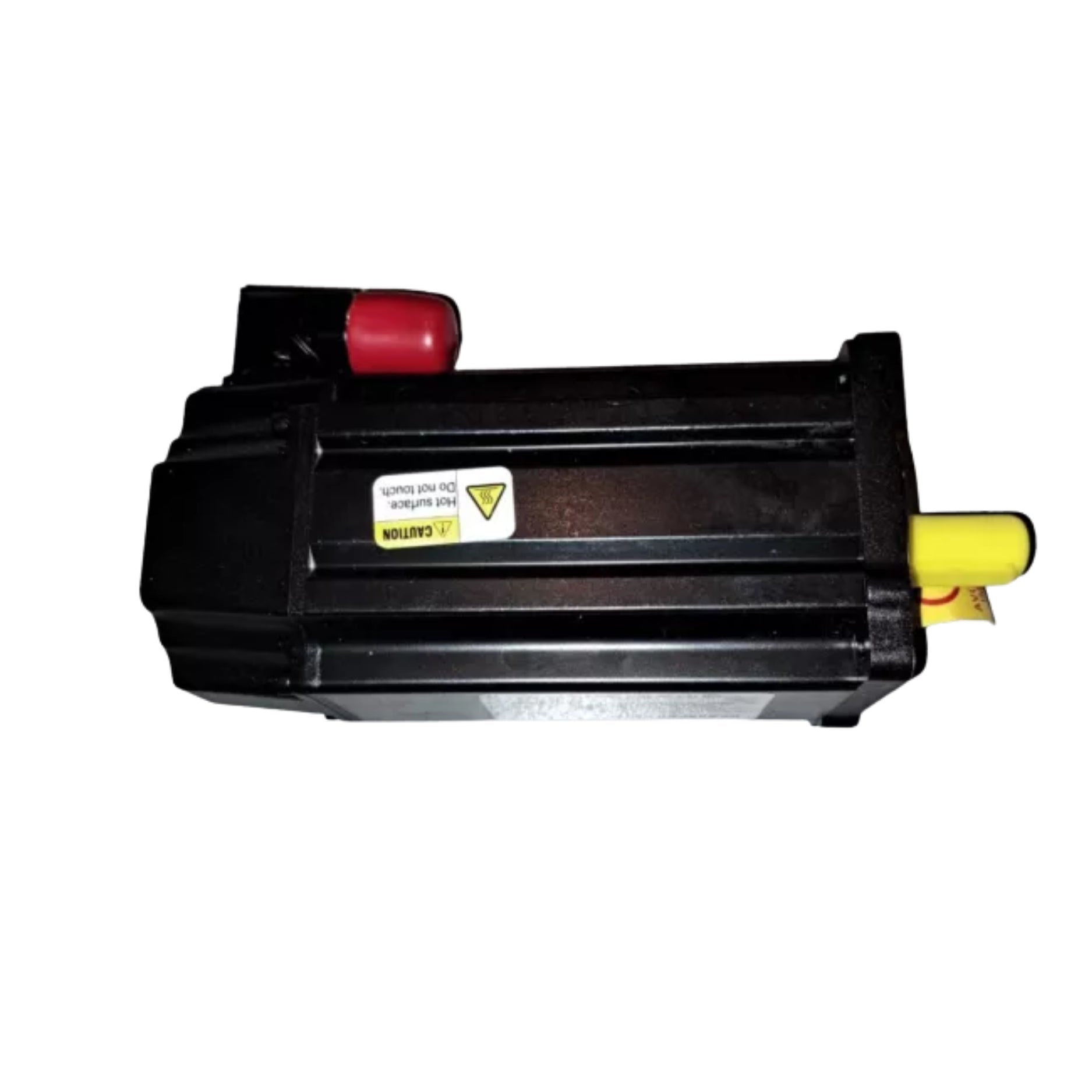

The Allen-Bradley VPL-B1002E-PK14AA is a low-inertia Kinetix VP servo motor engineered for precision, reliability, and efficiency in industrial automation. With a 100 mm bolt circle frame, two magnet stacks, and E winding, this motor offers a rated speed of 3500 RPM. It features an 18-bit single-turn and 12-bit multi-turn digital high-resolution encoder, a keyless shaft, a single SpeedTec DIN connector, and a 24 V DC holding brake.

Key Features

• Voltage: 480 VAC, 3-phase

• Frame Size: 100 mm bolt circle

• Magnet Stacks: 2

• Winding Type: E

• Rated Speed: 3500 RPM

• Encoder: 18-bit single-turn + 12-bit multi-turn

• Shaft Type: Keyless

• Connector: SpeedTec right-angle DIN

• Holding Brake: 24 V DC

• Mounting: IEC metric flange

• Enclosure: Standard industrial design

Technical Specifications

• Catalog Number: VPL-B1002E-PK14AA

• Rated Voltage: 480 VAC

• Rated Speed: 3500 RPM

• Encoder Type: Digital high-resolution, multi-turn

• Shaft: Keyless

• Brake: Included, 24 V DC

• Connector Type: SpeedTec DIN, right-angle

• Mounting Style: IEC metric flange

• Protection Rating: IP50

• Operating Temperature: 0 °C to 40 °C

• Weight: Approx. 6.1 kg

Applications

• Robotics and multi-axis automation systems

• Industrial packaging equipment

• High-precision rotary motion machines

• OEM applications requiring reliable motion control

• Assembly and material handling systems

Why Choose the VPL-B1002E-PK14AA

• Smooth and efficient 3500 RPM operation

• Multi-turn encoder delivers precise position feedback

• Keyless shaft for quick integration and minimal wear

• Integrated brake for system stability and safety

• Compact and powerful for tight industrial environments

Order Now

The Allen-Bradley VPL-B1002E-PK14AA servo motor is available and ships worldwide.

Looking for more options?

Explore our complete selection of Kinetix VPL Low-Inertia Servo Motors for high-performance, precise motion control solutions.

You can also browse our full range of Allen-Bradley Servo Motors to find the perfect match for your automation needs.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
