Allen-Bradley VPL-A0753E-PJ14AA

Allen-Bradley VPL-A0753E-PJ14AA

Overview

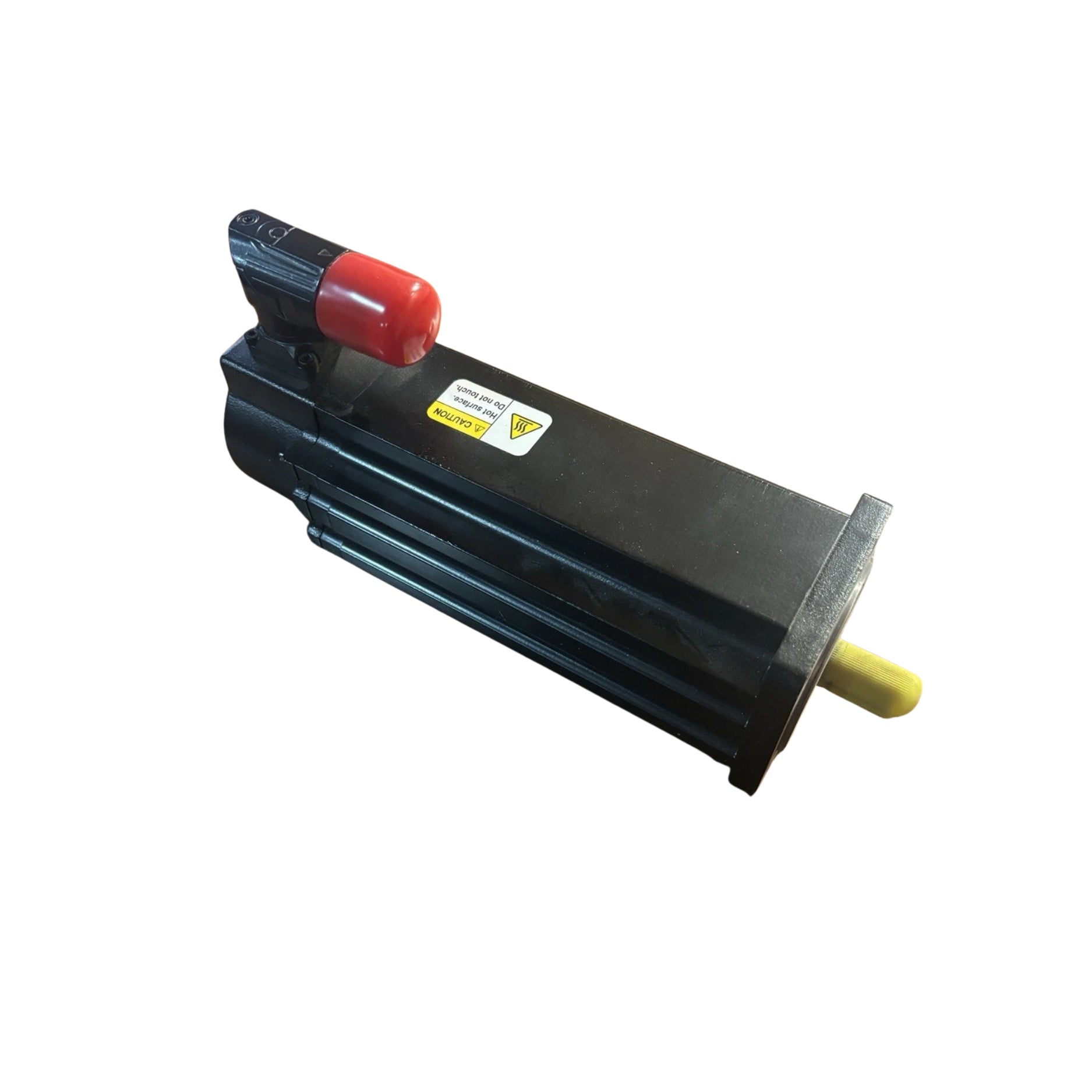

The Allen-Bradley VPL-A0753E-PJ14AA is a compact, low-inertia servo motor from the Kinetix VP series, engineered for precise motion control at 240 VAC. With a 75 mm bolt circle frame, three magnet stacks, and E winding, it supports a rated speed of 3500 RPM. This model features an 18-bit single-turn and 12-bit multi-turn digital high-resolution encoder, a keyed shaft, and an integrated 24V DC holding brake for secure and reliable operation in dynamic automation environments.

Key Features

• Voltage: 240 VAC, 3-phase

• Frame Size: 75 mm bolt circle

• Magnet Stacks: 3

• Winding Type: E

• Rated Speed: 3500 RPM

• Encoder: 18-bit single-turn + 12-bit multi-turn

• Shaft Type: Keyed

• Connector: SpeedTec right-angle DIN

• Holding Brake: 24V DC

• Mounting: IEC metric flange

• Enclosure: Standard industrial housing

Technical Specifications

• Catalog Number: VPL-A0753E-PJ14AA

• Rated Voltage: 240 VAC

• Rated Speed: 3500 RPM

• Encoder Type: Digital high-resolution, multi-turn

• Shaft: Keyed

• Brake: 24V DC holding brake

• Connector Type: SpeedTec DIN, right-angle

• Mounting Style: IEC metric flange

• Protection Rating: IP50

• Operating Temperature: 0 °C to 40 °C

• Weight: Approx. 5.6 kg

Applications

• Compact motion control systems

• Automated packaging and labeling

• Robotics and pick-and-place machinery

• Multi-axis positioning systems

• OEM equipment with size and speed constraints

Why Choose the VPL-A0753E-PJ14AA

• Smooth performance at 3500 RPM with low inertia

• High-resolution encoder for accurate feedback

• Keyed shaft design ensures solid mechanical coupling

• Includes brake for vertical axis or load-holding

• Optimized for 240 VAC applications in tight spaces

Order Now

The Allen-Bradley VPL-A0753E-PJ14AA servo motor is available and ships worldwide.
