Allen-Bradley VPL-A0631E-PJ12AA

Allen-Bradley VPL-A0631E-PJ12AA

Overview

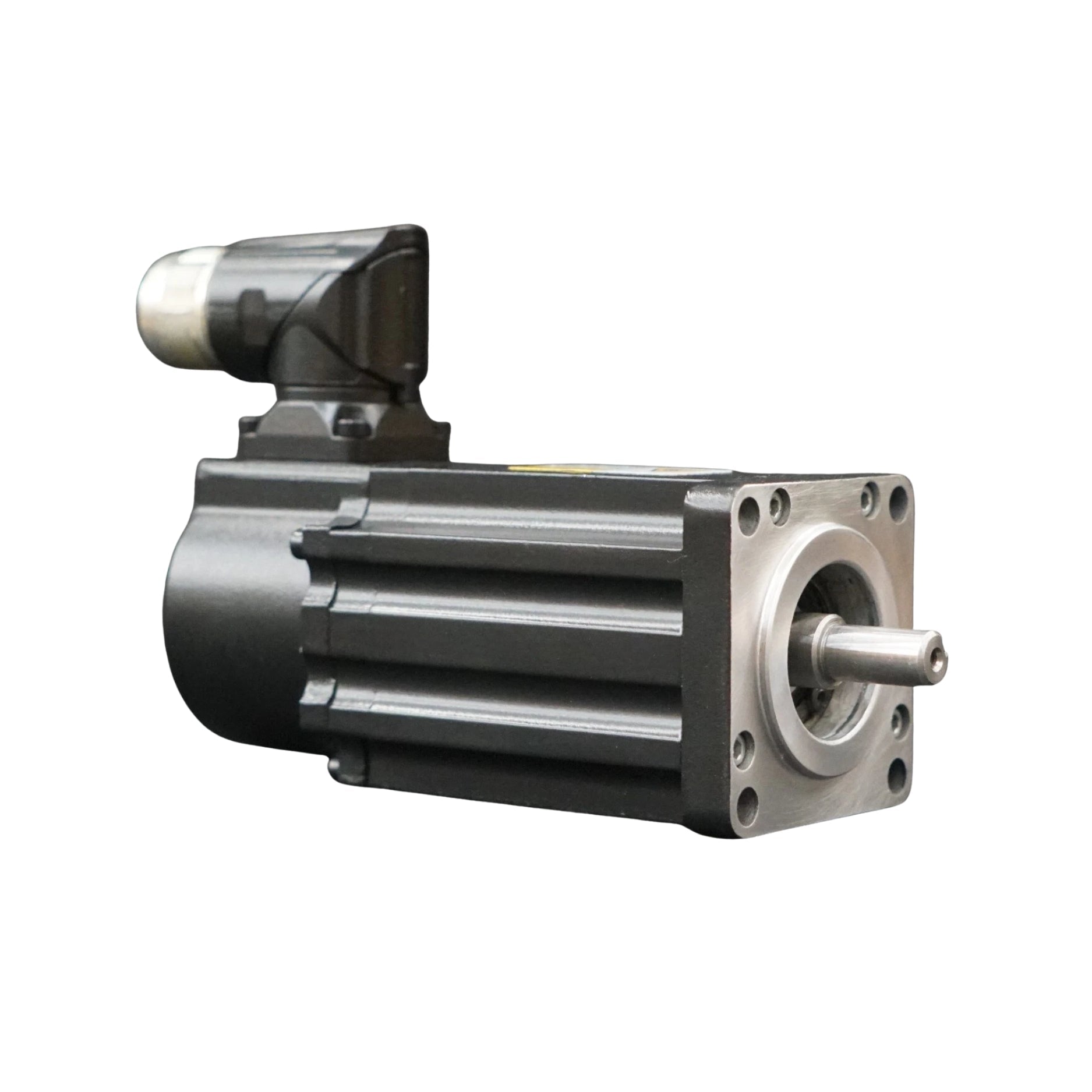

The Allen-Bradley VPL-A0631E-PJ12AA is a compact low-inertia servo motor from the Kinetix VP series, engineered for high-performance motion control. With a 63 mm bolt circle frame and a single magnet stack, this model operates at up to 3500 RPM. It features E winding, an 18-bit single-turn and 12-bit multi-turn high-resolution encoder, a keyed shaft, and a SpeedTec right-angle DIN connector. It does not include a holding brake.

Key Features

• Input Voltage: 240 VAC, 3-phase

• Frame Size: 63 mm bolt circle

• Magnet Stacks: 1

• Winding Type: E

• Rotor Inertia: Low inertia

• Rated Speed: 3500 RPM

• Encoder: 18-bit single-turn + 12-bit multi-turn

• Shaft Type: Keyed

• Connector: SpeedTec right-angle DIN

• Holding Brake: None

• Mounting: IEC metric flange

• Enclosure: Standard industrial-grade

Technical Specifications

• Catalog Number: VPL-A0631E-PJ12AA

• Rated Voltage: 240 VAC

• Rated Speed: 3500 RPM

• Encoder Type: High-resolution digital, multi-turn

• Shaft: Keyed

• Brake: Not included

• Connector Type: SpeedTec DIN, right-angle

• Mounting Style: IEC metric flange

• Protection Rating: IP50

• Operating Temperature: 0 °C to 40 °C

• Weight: Approx. 2.3 kg

Applications

• Compact automation equipment

• Pick-and-place systems

• Medical and laboratory automation

• OEM machinery requiring precise motion

• Low-voltage control environments

Why Choose the VPL-A0631E-PJ12AA

• Designed for 240 VAC systems with efficient power usage

• Low-inertia design supports fast and accurate positioning

• Multi-turn encoder ensures absolute motion feedback

• Keyed shaft offers secure mechanical coupling

• Compact size ideal for space-limited installations

Order Now

The Allen-Bradley VPL-A0631E-PJ12AA servo motor is available and ships worldwide.

Looking for more options?

Explore our complete selection of Kinetix VPL Low-Inertia Servo Motors for high-performance, precise motion control solutions.

You can also browse our full range of Allen-Bradley Servo Motors to find the perfect match for your automation needs.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
