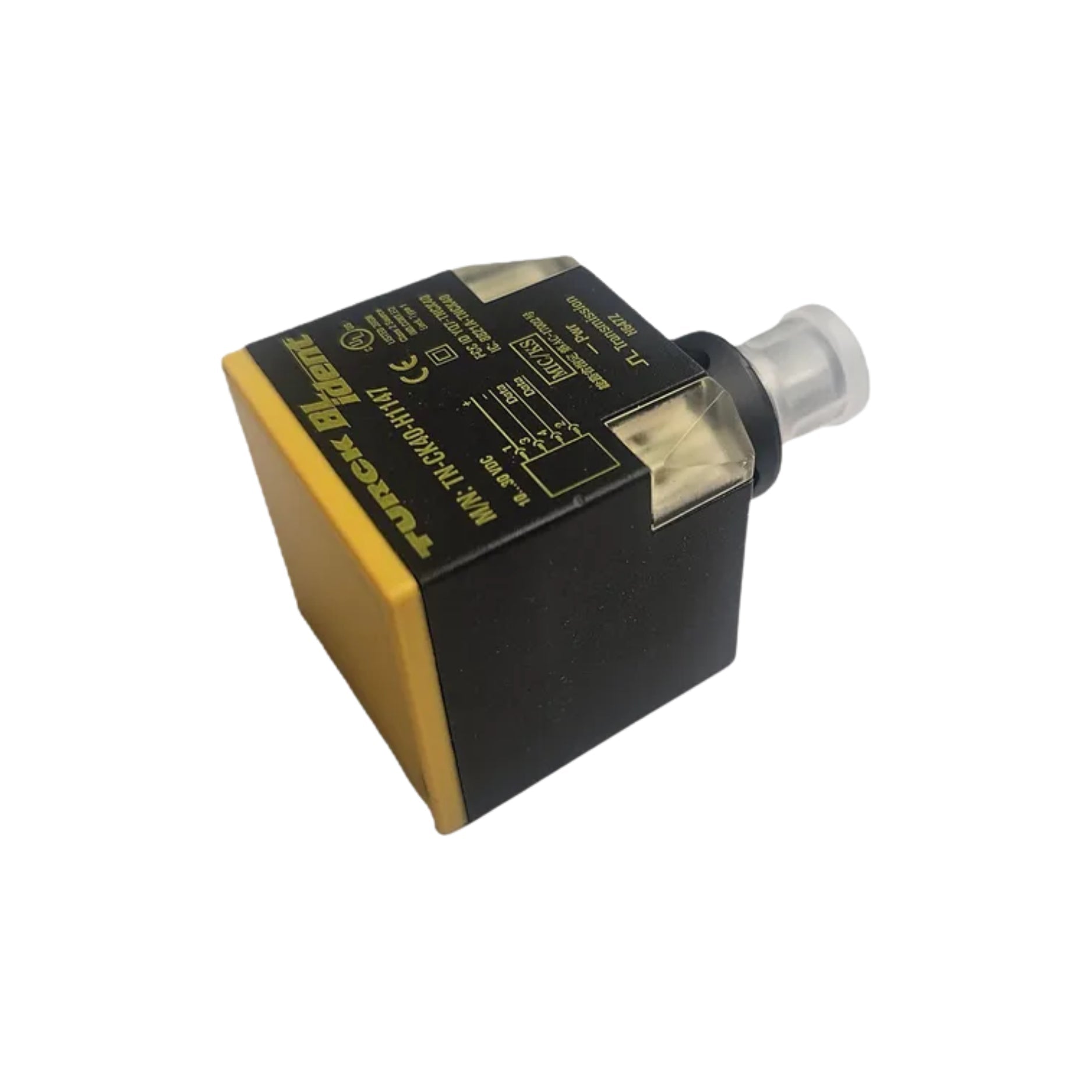

Turck TN-CK40-H1147

Turck TN-CK40-H1147

Overview

The Turck TN-CK40-H1147 is a high-performance HF (13.56 MHz) RFID read/write head designed for industrial automation and machine integration. Its CK40 rectangular housing allows the active face to be rotated in multiple directions, providing installation flexibility. With a read/write range of up to 115 mm, it enables fast and reliable data communication between RFID transponders and controllers in harsh environments.

Key Features

• Operates at 13.56 MHz HF RFID frequency

• Read/write range up to approximately 115 mm (depending on transponder)

• Compact CK40 rectangular housing with adjustable sensing face orientation

• Fully encapsulated and IP67-rated for harsh industrial conditions

• High resistance to mechanical stress, oil, and dust

• LED indicators for operating and communication status

• Compatible with Turck BL ident and similar RFID systems

Technical Specifications

• Model: TN-CK40-H1147

• Technology: HF (13.56 MHz) RFID read/write head

• Housing Type: CK40 rectangular body

• Read/Write Range: Up to 115 mm (tag-dependent)

• Operating Voltage: 24 V DC (typical)

• Connection Type: M12 connector (rotatable, 5-pin)

• Protection Rating: IP67 industrial grade

• Operating Temperature: –25 °C to +70 °C

• Housing Material: Glass-fiber reinforced plastic (PBT-GF30)

• Mounting Options: Multiple face orientations for flexible positioning

Applications

• Tracking and identification of components or workpieces on conveyors

• Tool and part recognition in automated manufacturing

• Material flow and production control systems

• Industrial assembly lines and packaging operations

• RFID integration in robotics and smart factory systems

Why Choose Turck TN-CK40-H1147?

• Long read/write range for its compact size

• Flexible mounting design for easy installation in tight or complex layouts

• Fully encapsulated housing ensures reliability in extreme conditions

• Proven RFID technology optimized for industrial performance

Order Now

Enhance your automation and tracking capabilities with the Turck TN-CK40-H1147 — a robust, high-range HF RFID read/write head built for precision, durability, and flexibility in demanding industrial environments.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
