Turck TBEN-S2-2RFID-4DXP

Turck TBEN-S2-2RFID-4DXP

Overview

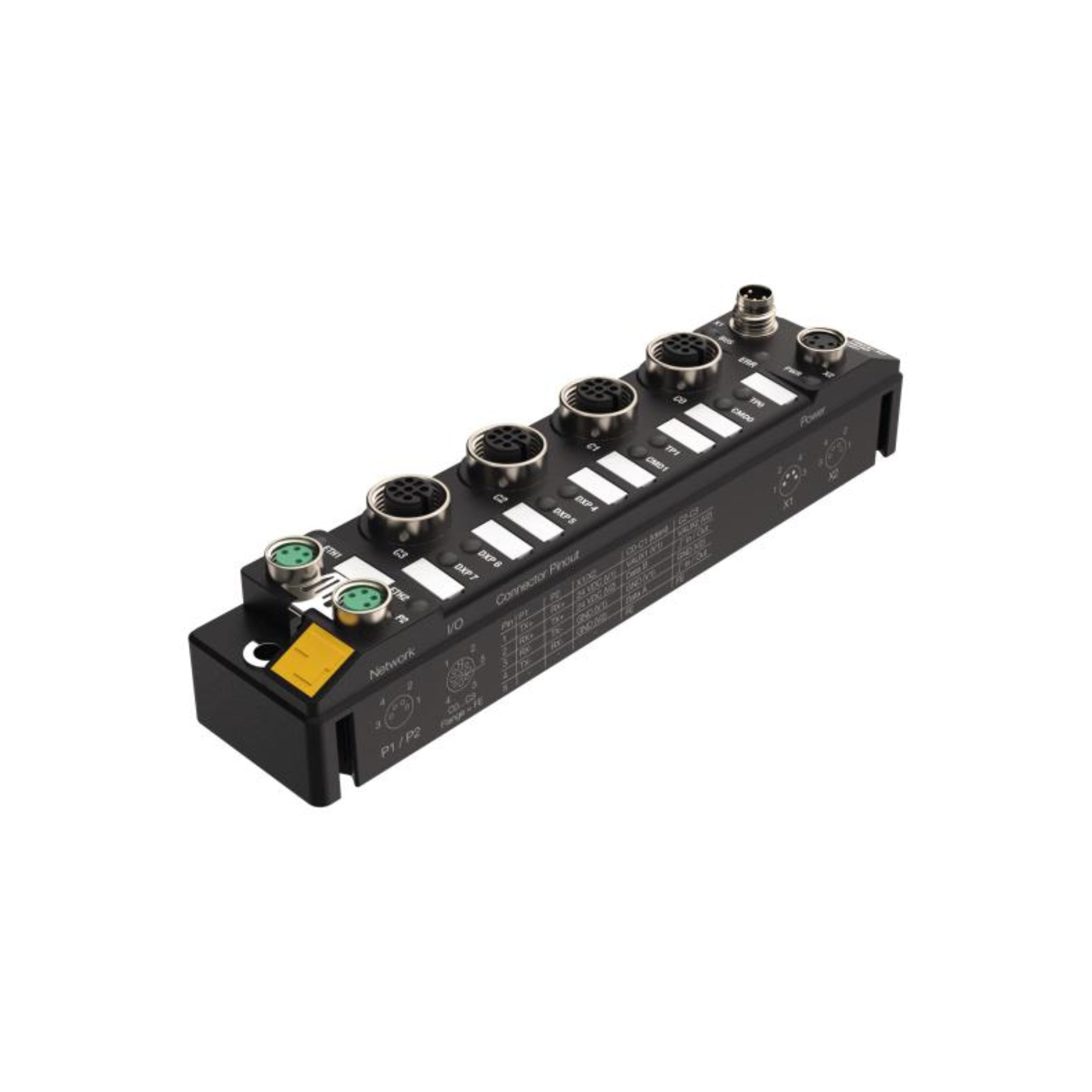

The Turck TBEN-S2-2RFID-4DXP is a compact and rugged field-mount RFID module combining two RFID channels and four universal digital I/O channels in one device. It allows direct connection of RFID read/write heads and sensors or actuators at the machine level, eliminating the need for control cabinet wiring. With multiprotocol Ethernet support and a fully encapsulated housing, this module is ideal for harsh industrial automation environments.

Key Features

• Two RFID channels for HF or UHF heads

• Four configurable DXP channels (input or PNP output)

• Multiprotocol Ethernet: PROFINET, EtherNet/IP, Modbus TCP

• Integrated Ethernet switch for daisy-chain networking

• Compact, fully sealed housing for direct machine installation

• Diagnostic LEDs for network and channel status

• High protection class IP65/IP67/IP69K

Technical Specifications

• Model: TBEN-S2-2RFID-4DXP

• Series: TBEN-S2

• RFID Channels: 2 independent read/write channels

• Digital Channels: 4 × DXP (input or PNP output selectable)

• Power Supply: 24 V DC

• Communication: Multiprotocol Ethernet (automatic detection)

• Protection Rating: IP65 / IP67 / IP69K

• Operating Temperature: –40 °C to +70 °C

• Connection Type: M8 connectors for power, Ethernet, and I/O

• Housing Material: Encapsulated industrial polymer

Applications

• Decentralized RFID tracking and machine identification

• Integration of sensors, actuators, and RFID in one compact unit

• Smart manufacturing and assembly automation

• Material-flow control, packaging, and logistics

• Harsh industrial environments with vibration, oil, or wash-down

Why Choose Turck TBEN-S2-2RFID-4DXP?

• Combines RFID and I/O in one device, reducing system complexity

• Fully encapsulated design for cabinet-free installation

• Compatible with major Ethernet protocols

• Simplifies data capture for Industry 4.0 applications

• Proven Turck reliability and durability for demanding conditions

Order Now

Modernize your production line with the Turck TBEN-S2-2RFID-4DXP — the versatile, rugged RFID module designed for intelligent data capture and flexible field I/O.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
