Turck NI4U-EG08-AP6X-V1131

Turck NI4U-EG08-AP6X-V1131

Overview

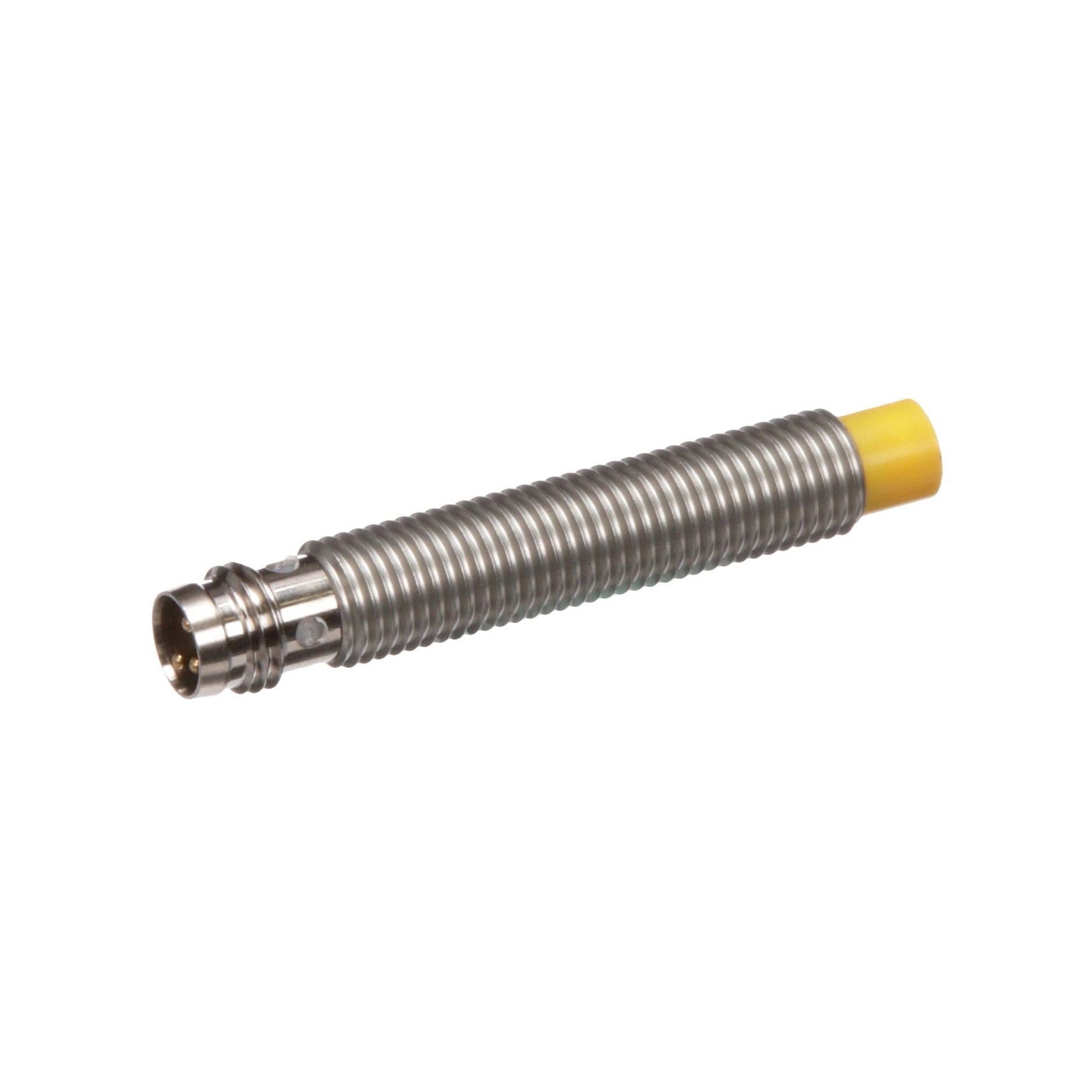

The Turck NI4U-EG08-AP6X-V1131 is a compact M8 threaded inductive proximity sensor, offering 4 mm sensing distance with Turck “Factor 1” technology — meaning it detects all metal types with the same switching distance. Designed for modern automation systems, it provides a PNP Normally Open output and reliable detection performance in industrial environments.

Key Features

• 4 mm rated sensing distance

• Factor 1 for all metals (no reduction on aluminum or stainless steel)

• PNP Normally Open output

• Compact M8 threaded metal housing

• LED switching indicator

• Reliable for fast and repeatable metal detection

Technical Specifications

• Model: NI4U-EG08-AP6X-V1131

• Type: Inductive proximity sensor

• Housing Format: M8 × 1 threaded barrel

• Sensing Distance: 4 mm nominal

• Mounting: Flush mount type

• Output: PNP, Normally Open

• Supply Voltage: 10–30 V DC

• Load Current: Up to 200 mA

• Protection Rating: IP67 industrial sealed

• Operating Temperature: –25 °C to +70 °C

• Housing Material: Metal body

• Connection Type: Cable or connector version depending configuration

Applications

• Automotive and machinery automation lines

• Metal part positioning and confirmation

• Industrial equipment requiring compact M8 sensor format

• Robotics and OEM machines with limited space

• Replaces shorter M8 range sensors with consistent 4 mm reach

Why Choose This Model?

• Same sensing distance for every metal type simplifies setup

• Fits applications where M12 sensors are too large

• Durable industrial design with reliable switching performance

• Ideal for precise detection tasks in high-density machine layouts

Order Now

Choose the Turck NI4U-EG08-AP6X-V1131 for compact size, long sensing capability, and maximum flexibility in modern industrial automation.
